3 - 5 Reverse Clutch Piston Installation

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

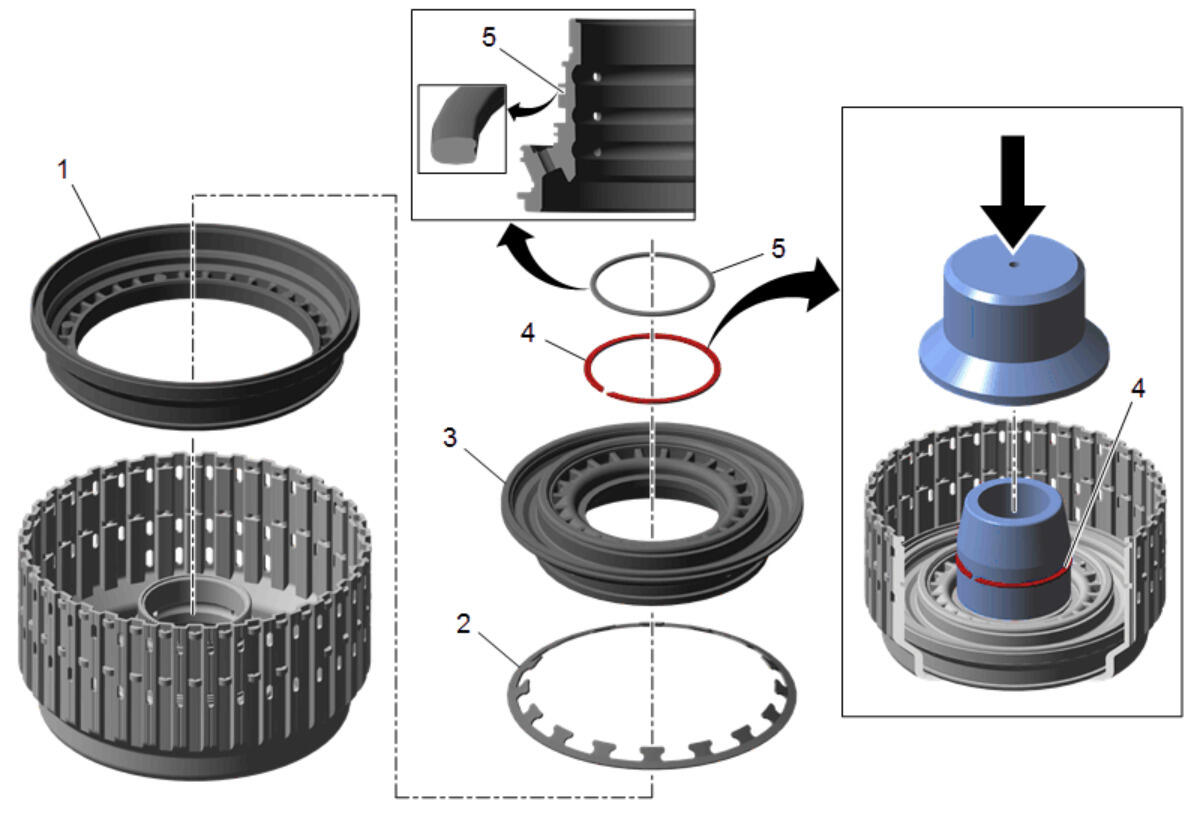

Callout	Component Name
1	3-5-Reverse Clutch Piston
2	3-5-Reverse Clutch Spring CAUTION: Ensure the clutch spring is centered on the piston with the tabs facing up. Failure to do so may cause damage to the clutch assembly.
3	1 - 2 - 3 - 4 Clutch Piston Housing
4	1-2-3-4 Clutch Piston Housing Return Ring CAUTION: Before using the DT 47782 - 2, push the retaining ring over the DT 47782 - 1 by hand so that the ring is positioned below the tapered area of the DT 47782 - 1. If the ring is positioned above the tapered area when it is being installed, the ring will become lodged between both tools and damage to the tools, retaining ring, and piston housing will result. CAUTION: Refer to Retaining Ring Reuse Caution . CAUTION: Push the retaining ring down over the cone until the ring seats firmly in the retaining ring groove. The retaining ring will make a distinctive click sound when it seats. Failure to properly seat the retaining ring may cause damage to the 3-5 reverse clutch assembly. NOTE: Use a screwdriver in order to verify the retaining ring is fully seated into the groove. It may appear as though the retaining ring is not fully seated, since the groove is shallow by design. However, this shallow interface is normal. Special Tools DT-47782-1 Retaining Ring Cone DT-47782-2 Retaining Ring Installer Equivalent regional tools:Special Tools
5	1-2-3-4 Clutch Piston Inner Seal CAUTION: Install a NEW seal and orientate as shown. Failure to do so may cause internal transmission leaks and damage to the transmission.
