3 - 5 Reverse Clutch Housing Inspection Disassembled

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

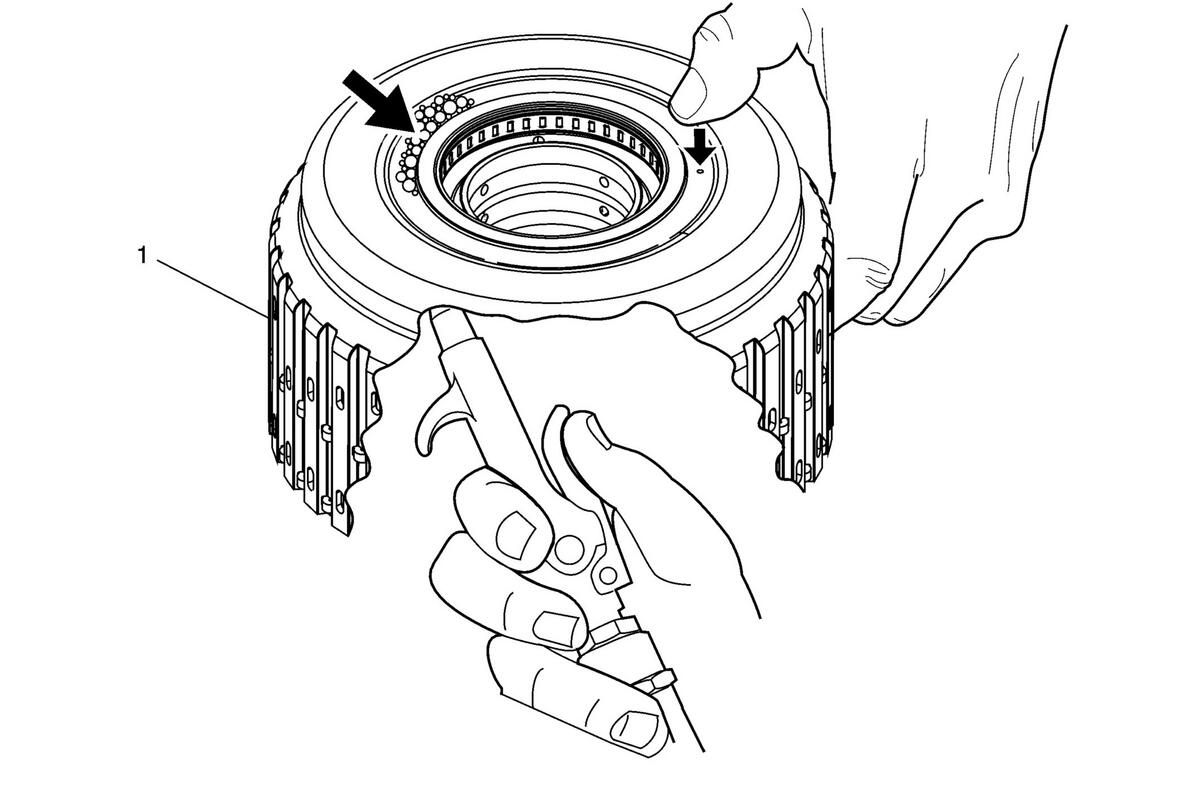

Callout	Component Name
1	1-2-3-4 and 3-5-Reverse Clutch Housing Procedure Apply soap compound to weld area of housing. Hold thumb over the air bleed passage. For disassembled 1-2-3-4 and 3-5 reverse clutch housing spray compressed air into the piston housing and inspect weld area for bubbles. If bubbles are detected a new housing is required.

Callout

Component Name

1-2-3-4 and 3-5-Reverse Clutch Housing

Procedure

Apply soap compound to weld area of housing.
Hold thumb over the air bleed passage.
For disassembled 1-2-3-4 and 3-5 reverse clutch housing spray compressed air into the piston housing and inspect weld area for bubbles.
If bubbles are detected a new housing is required.
