Reductant Tank Components

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

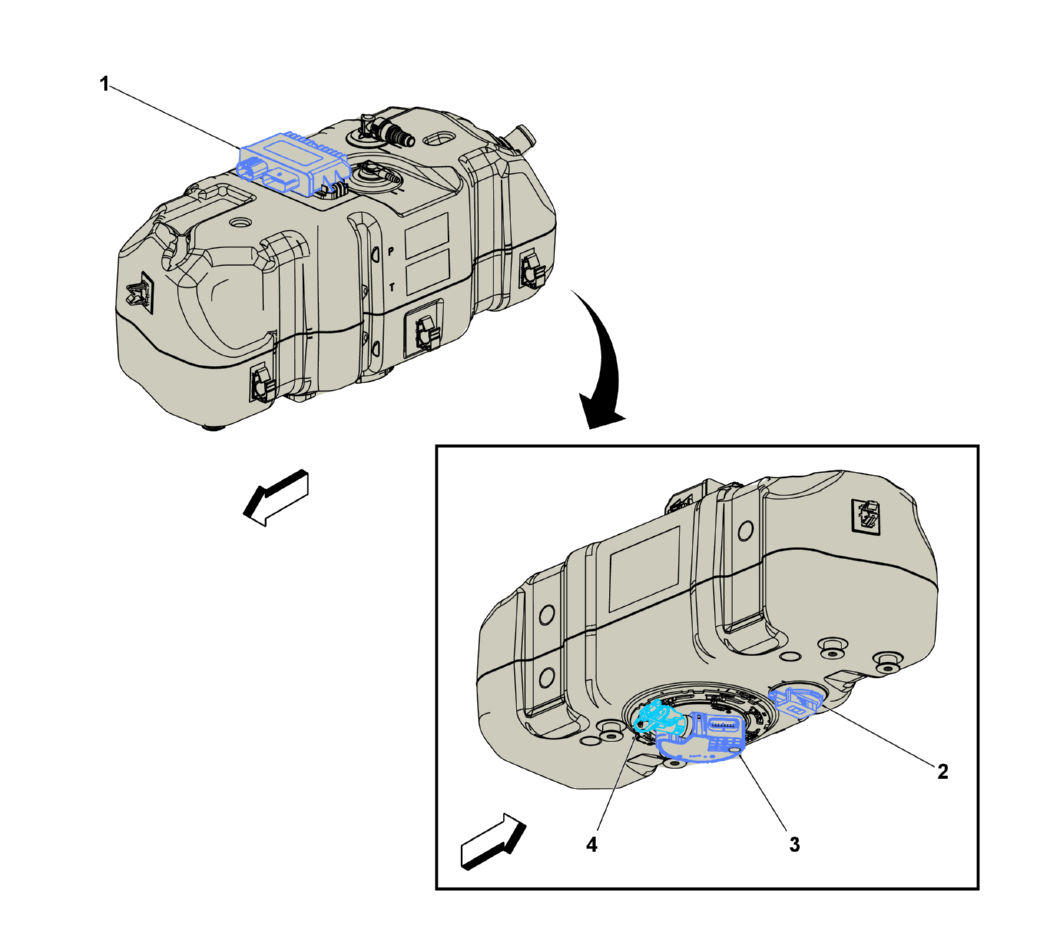

GM4702574Courtesy of GENERAL MOTORS COMPANY
Reductant Tank Components

Items
1. K115 Reductant Control Module (LWN) K115 Reductant Control Module X1 () , or K115 Reductant Control Module X2
2. B295 Reductant Quality Sensor (LWN) B295 Reductant Quality Sensor
3. A39 Reductant Tank A39 Reductant Fluid Reservoir Assembly
4. E52 Reductant Line Heater (LWN) E52 Reductant Line Heater
