Frame and Underbody Components (2 of 2)
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

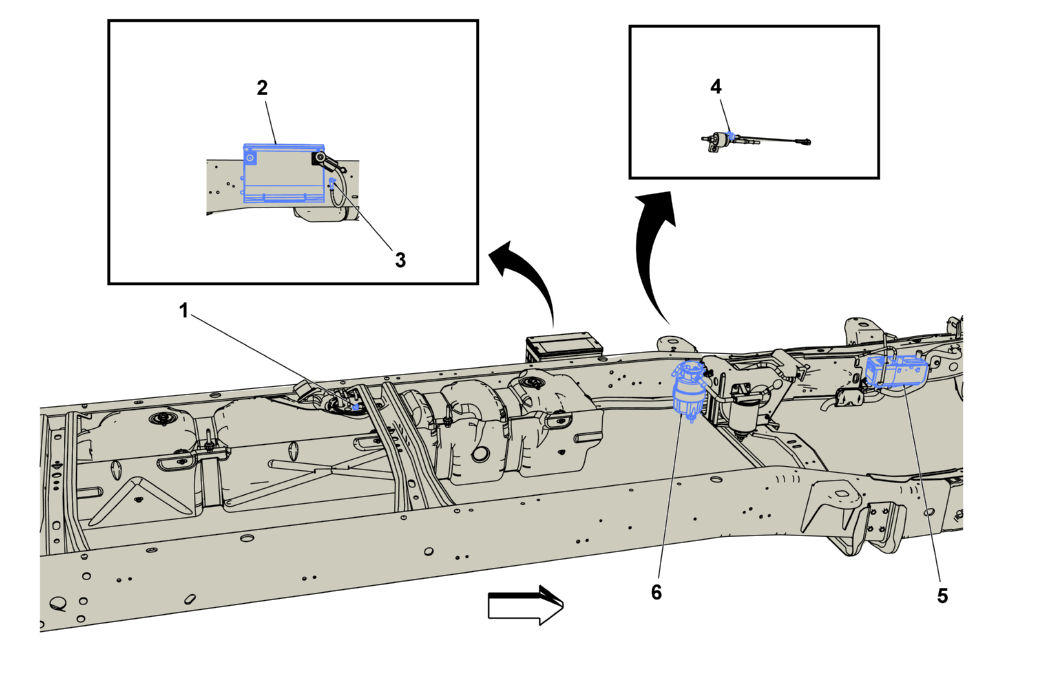

Frame and Underbody Components (2 of 2)
| Items |
|---|
| 1. B46 Fuel Level Sensor (LV1, L96, or LC8) |
| 2. C1B Battery - Auxiliary (LWN or TP2) C1B Battery - Auxiliary (LWN) , or C1B Battery - Auxiliary (TP2) |
| 3. G305 Auxiliary Battery Negative Cable (TP2 or LWN) |
| 4. G7 Coolant Heater Fuel Pump (K08) G7 Coolant Heater Fuel Pump |
| 5. E19 Coolant Heater (K08) E19 Coolant Heater |
| 6. G12 Fuel Pump (LV1, L96, or LC8) |
