Frame and Underbody Components (1 of 2)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
GM4866082Courtesy of GENERAL MOTORS COMPANY

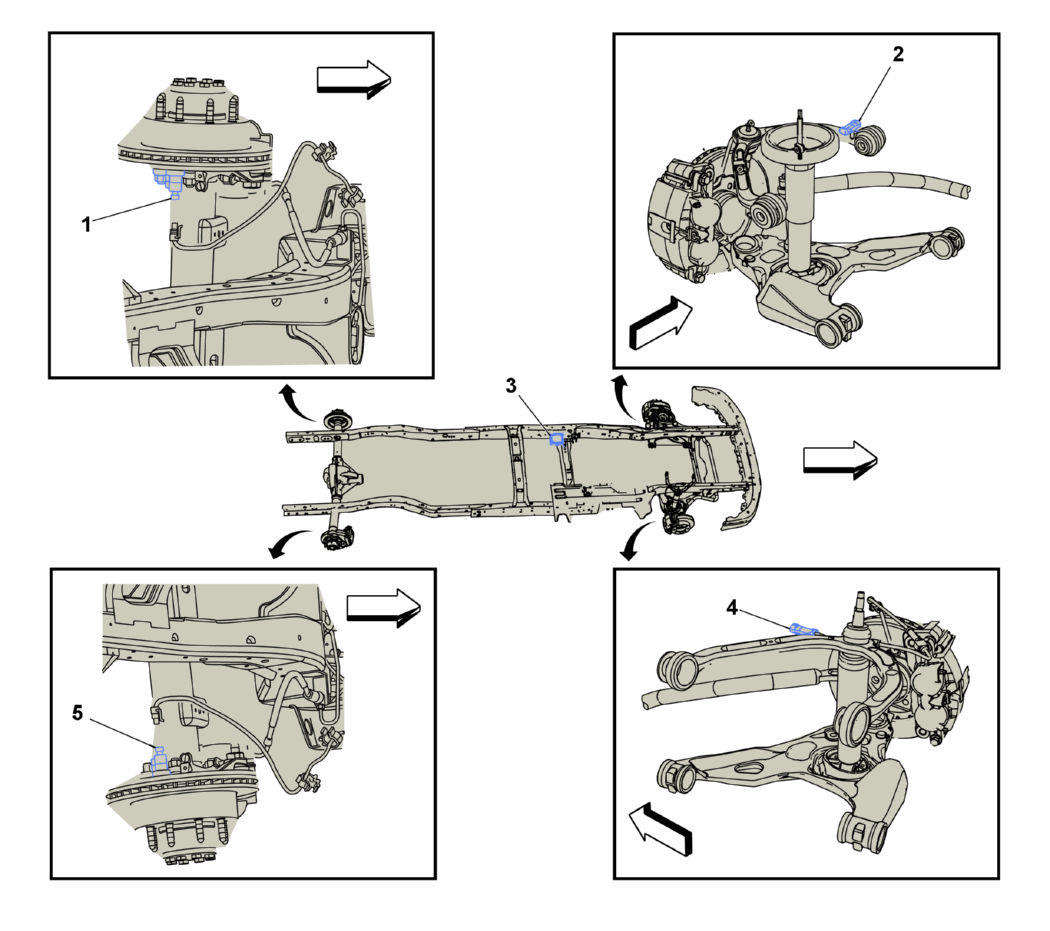

Frame and Underbody Components (1 of 2)

Items
1. B5LR Wheel Speed Sensor - Left Rear B5LR Wheel Speed Sensor - Left Rear
2. B5LF Wheel Speed Sensor - Left Front B5LF Wheel Speed Sensor - Left Front
3. K17 Electronic Brake Control Module K17 Electronic Brake Control Module
4. B176 Multi-axis Acceleration Sensor Module B176 Multi-axis Acceleration Sensor Module
5. B5RF Wheel Speed Sensor - Right Front B5RF Wheel Speed Sensor - Right Front (-LWN) , or B5RF Wheel Speed Sensor - Right Front (LWN)
6. B5RR Wheel Speed Sensor - Right Rear B5RR Wheel Speed Sensor - Right Rear
