Exhaust Components (L96 or LC8)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

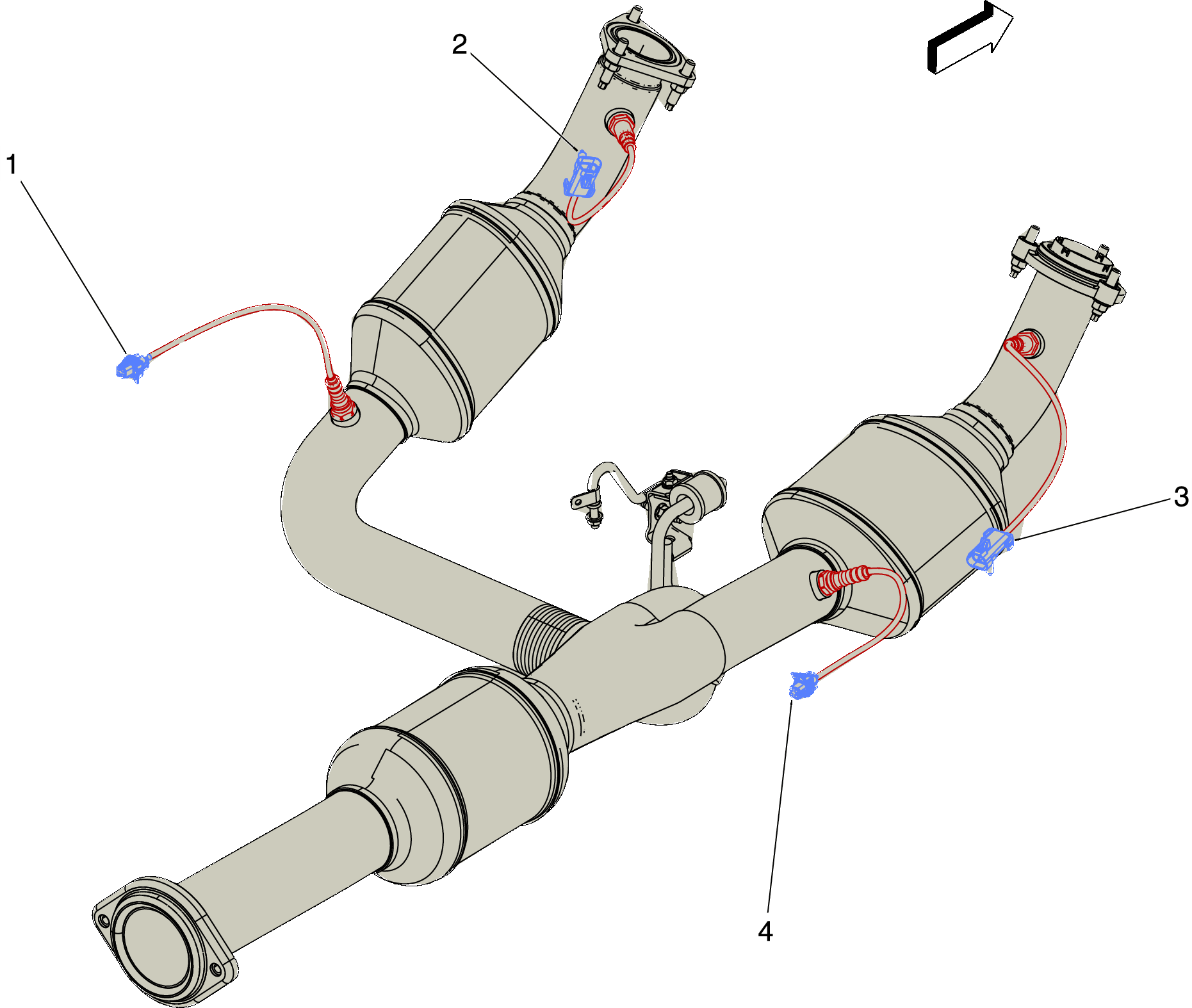

GM3634131Courtesy of GENERAL MOTORS COMPANY
Exhaust Components (L96 or LC8)

Items
1. B52D Heated Oxygen Sensor - Bank 1 Sensor 2 B52D Heated Oxygen Sensor - Bank 1 Sensor 2 ()
2. B52C Heated Oxygen Sensor - Bank 1 Sensor 1 B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (L96/LC8) , or B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LV1)
3. B52E Heated Oxygen Sensor - Bank 2 Sensor 1 B52E Heated Oxygen Sensor - Bank 2 Sensor 1 ()
4. B52F Heated Oxygen Sensor - Bank 2 Sensor 2 B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (L96/LC8) , or B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LV1)
