Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

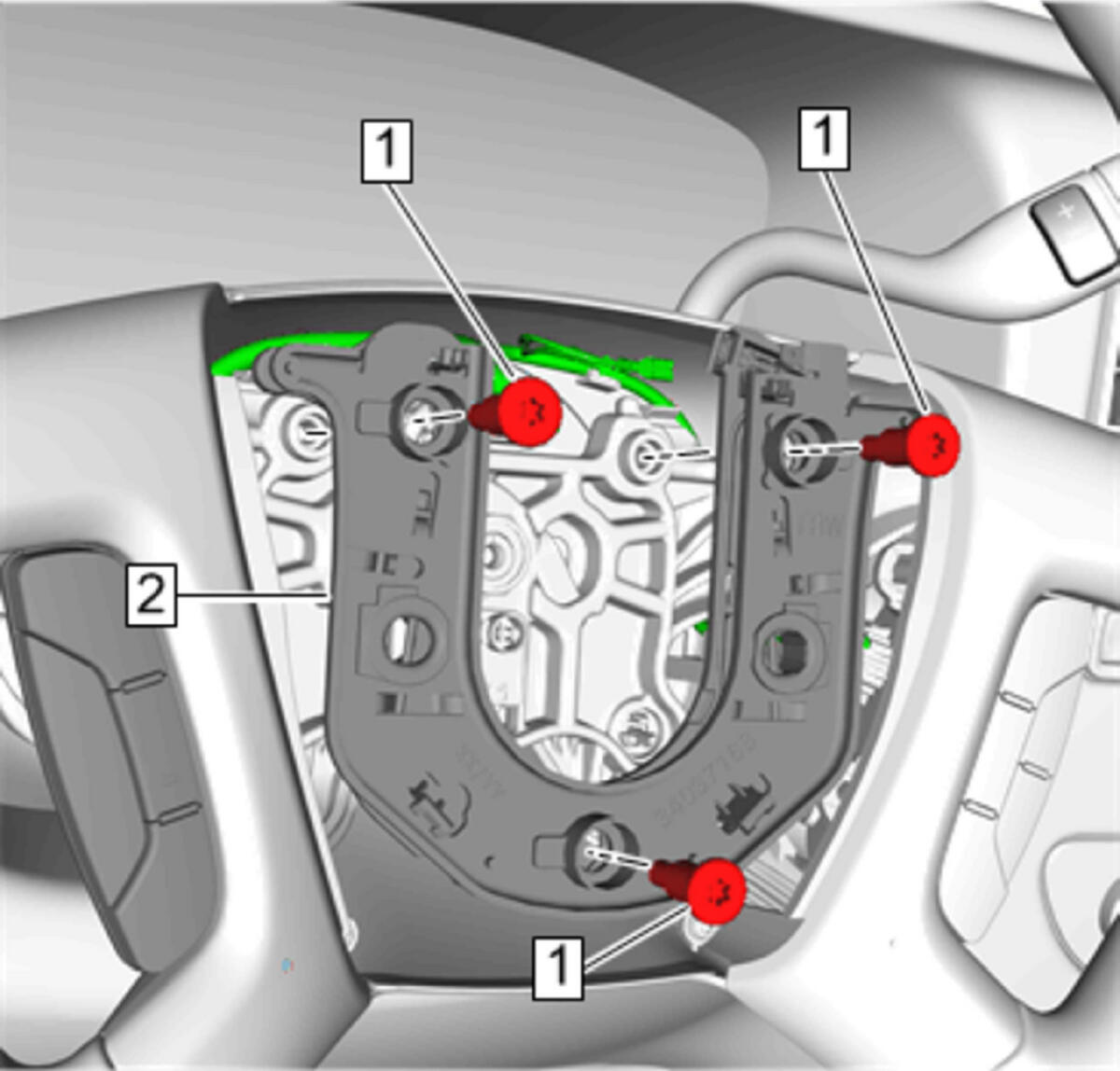

Steering Wheel Horn Switch (2) - Install
- Steering Wheel Horn Switch Bolt (1) - Install and tighten [3x] 7 N.m (62 lb in)

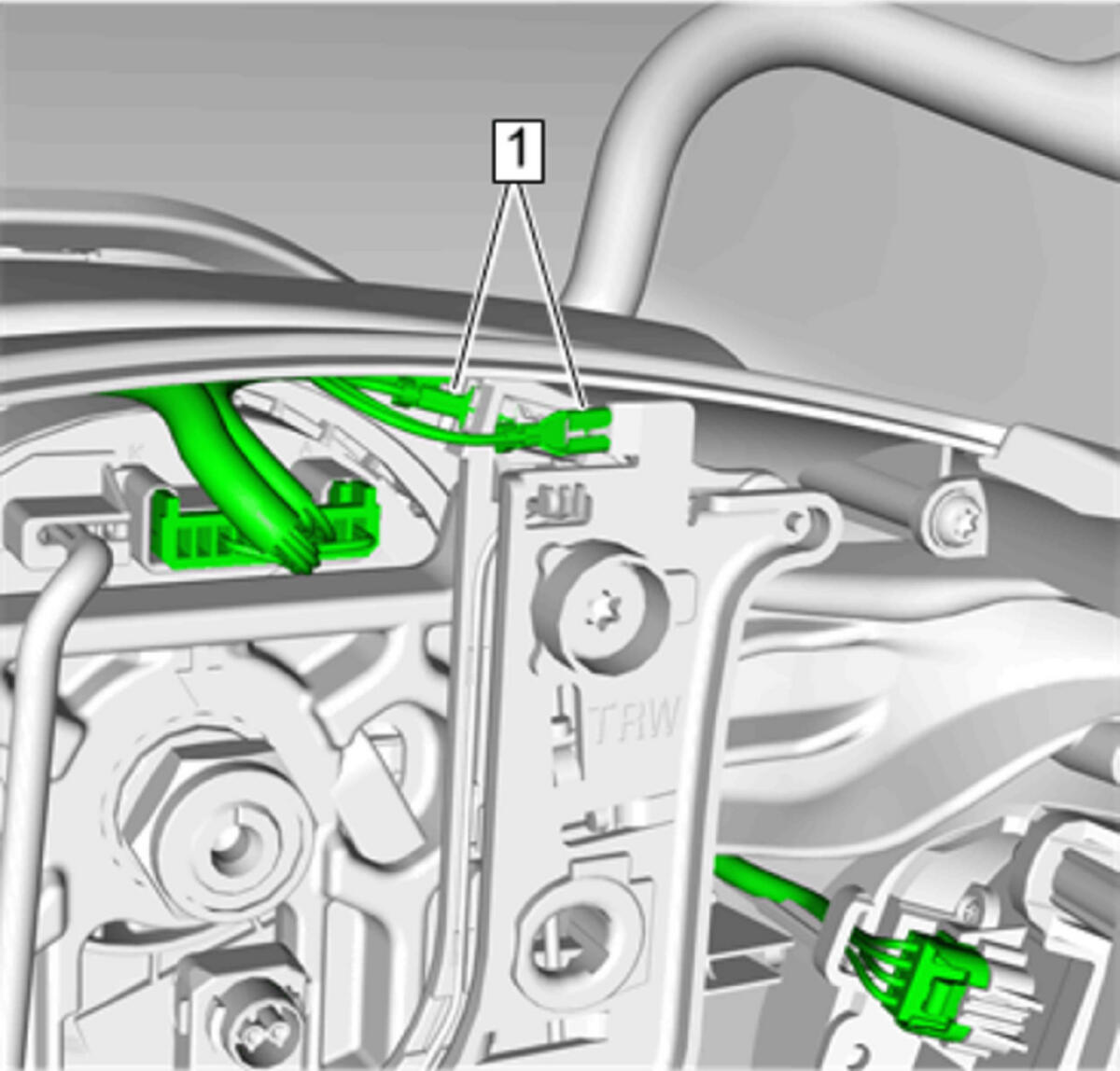

Steering Wheel Horn Switch Wiring Harness (1) - Connect
- Airbag Steering Wheel Module - Install - Airbag Steering Wheel Module Replacement
CAUTION:
Refer to Fastener Caution .
