Rear Door Components (Passenger or Cargo)
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

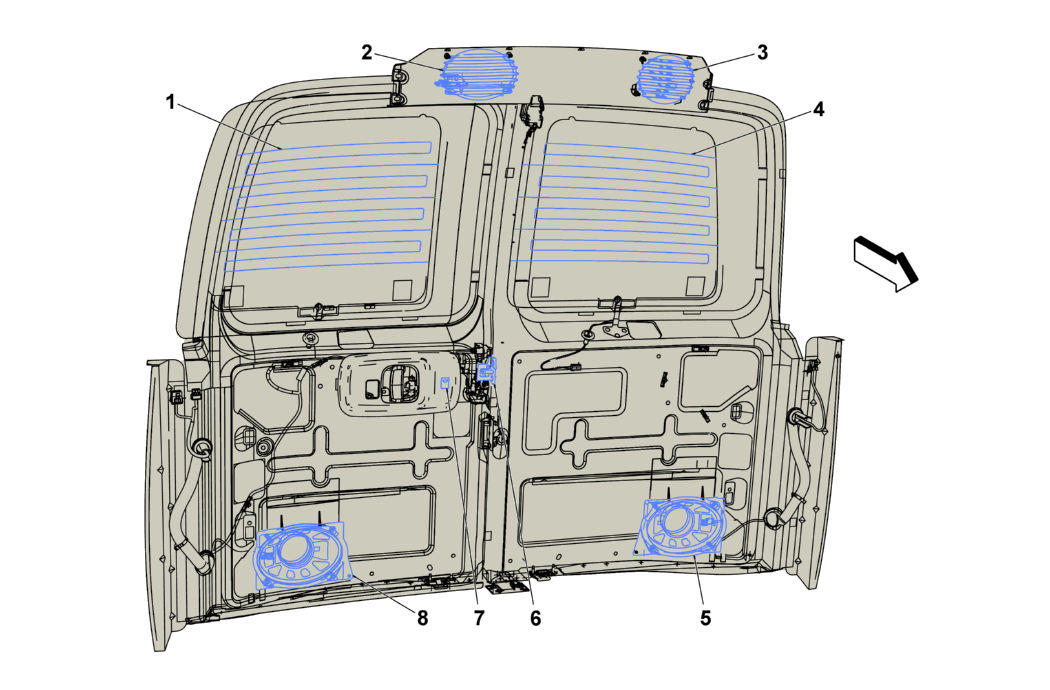

Rear Door Components (Passenger or Cargo)
| Items |
|---|
| 1. E18R Rear Defogger Grid - Right (C49) E18R Rear Defogger Grid - Right X1 , or E18R Rear Defogger Grid - Right X2 |
| 2. P19RR Speaker - Right Rear Roof (Cargo or Passenger) P19RR Speaker - Right Rear Roof |
| 3. P19LR Speaker - Left Rear Roof (Cargo or Passenger) P19LR Speaker - Left Rear Roof |
| 4. E18L Rear Defogger Grid - Left (C49) E18L Rear Defogger Grid - Left X1 () , or E18L Rear Defogger Grid - Left X2 |
| 5. P19F Speaker - Left Rear Cargo Door (US8) P19F Speaker - Left Rear Cargo Door |
| 6. M13 Door Latch Assembly - Rear Cargo (Passenger or Cargo) M13 Door Latch Assembly - Rear Cargo X1 () , or M13 Door Latch Assembly - Rear Cargo X2 |
| 7. S13A Door Lock Switch - Rear Cargo (Passenger or Cargo with AU3) S13A Door Lock Switch - Rear Cargo () |
| 8. P19T Speaker - Right Rear Cargo Door (US8) P19T Speaker - Right Rear Cargo Door |
