Driver Door Components
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

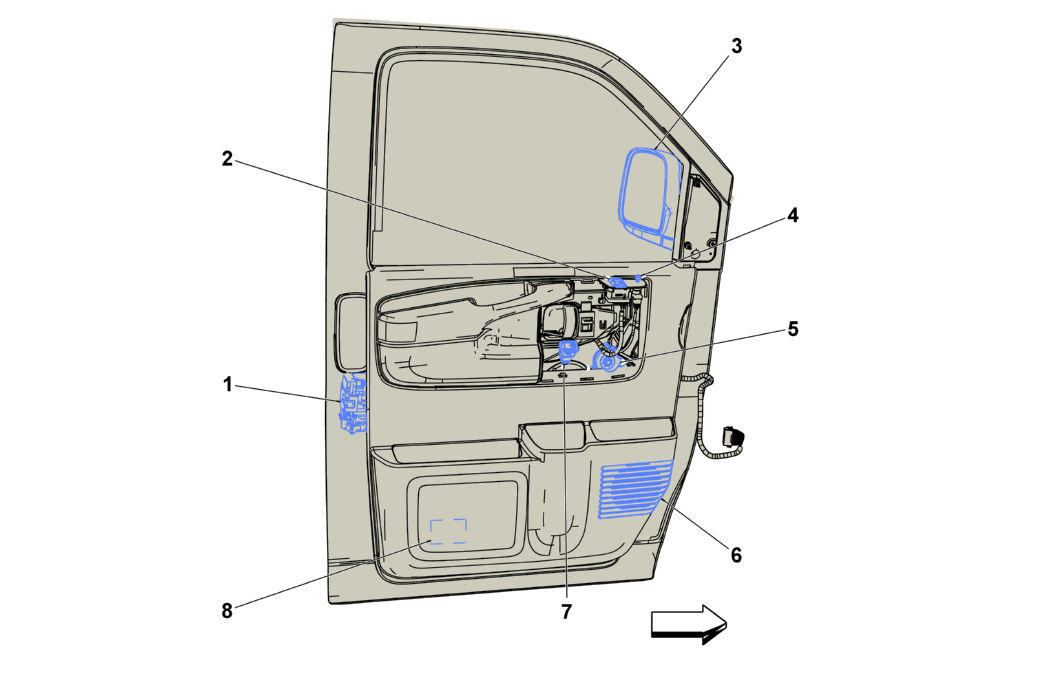

Driver Door Components
| Items |
|---|
| 1. A23D Door Latch Assembly - Driver A23D Door Latch Assembly - Driver X1 , or A23D Door Latch Assembly - Driver X2 . |
| 2. S79D Window Switch - Driver (A31) S79D Window Switch - Driver () |
| 3. A9A Outside Rearview Mirror - Driver (DEB or DE5) A9A Outside Rearview Mirror - Driver () |
| 4. S52 Outside Rearview Mirror Switch (DEB or DE5) S52 Outside Rearview Mirror Switch () |
| 5. M74D Window Motor - Driver (A31) M74D Window Motor - Driver () |
| 6. P19AG Speaker - Left Front Door P19AG Speaker - Left Front Door () |
| 7. S13D Door Lock Switch - Driver (AU3) S13D Door Lock Switch - Driver |
| 8. B63LF Side Impact Sensor - Left Front (ASF) B63LF Side Impact Sensor - Left Front |
