Right Rear Frame Rail Components (Passenger with E24)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

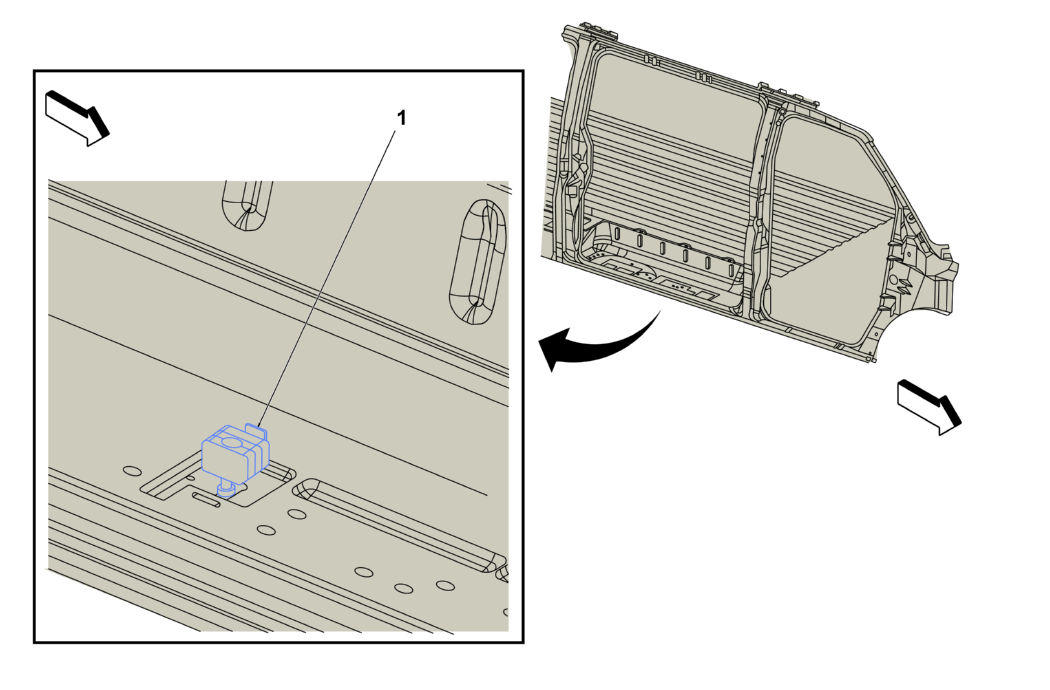

GM2831290Courtesy of GENERAL MOTORS COMPANY
Right Rear Frame Rail Components (Passenger with E24)

Items
1. B63RR Side Impact Sensor - Right Rear (ASF) B63RR Side Impact Sensor - Right Rear
