Headliner Components
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

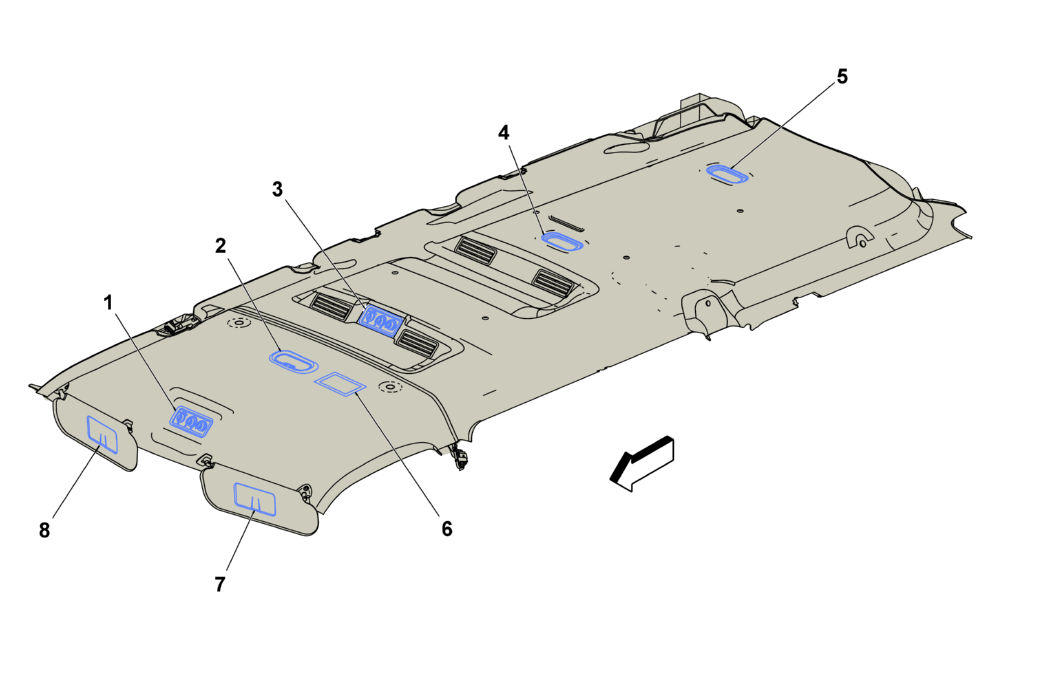

Headliner Components
| Items |
|---|
| 1. S34F HVAC Controls Switch Assembly - Auxiliary Front (C36 or C69) S34F HVAC Controls Switch Assembly - Auxiliary Front (-REAR HVAC CONTROLS) , or S34F HVAC Controls Switch Assembly - Auxiliary Front (REAR HVAC CONTROLS) |
| 2. E37F Dome/Reading Lamps - Front (Without YF7) E37F Dome/Reading Lamps - Front |
| 3. S34R HVAC Controls Switch Assembly - Auxiliary Rear (C36 or C69 with Rear HVAC Controls) S34R HVAC Controls Switch Assembly - Auxiliary Rear |
| 4. E37M Dome/Reading Lamps - Middle (Passenger) E37M Dome/Reading Lamps - Middle |
| 5. E37R Dome/Reading Lamps - Rear (Passenger) E37R Dome/Reading Lamps - Rear |
| 6. K18 Compass Module (U80) K18 Compass Module |
| 7. E31R Sunshade Mirror Lamp - Right (DH6) |
| 8. E31L Sunshade Mirror Lamp - Left (DH6) |
