Front of the Passenger Compartment Components

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

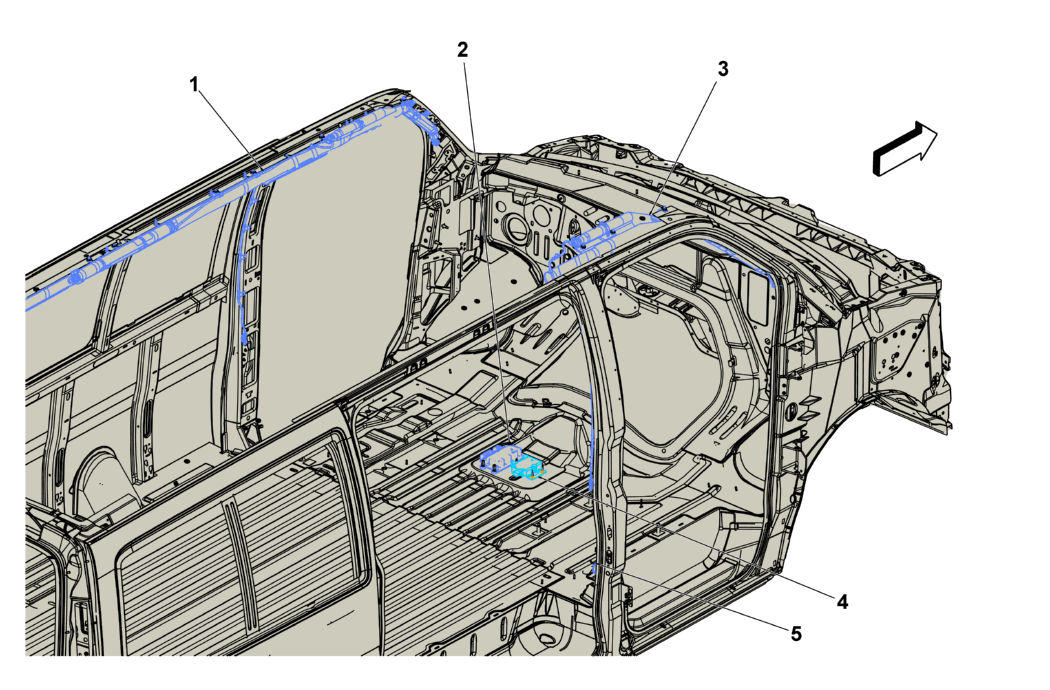

GM4861782Courtesy of GENERAL MOTORS COMPANY
Front of the Passenger Compartment Components

Items
1. F105LF Roof Rail Air Bag - Left Front (ASF) F105LF Roof Rail Air Bag - Left Front
2. K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1 , or K36 Inflatable Restraint Sensing and Diagnostic Module X2
3. F105RF Roof Rail Air Bag - Right Front (ASF) F105RF Roof Rail Air Bag - Right Front
4. B176 Multi-axis Acceleration Sensor Module B176 Multi-axis Acceleration Sensor Module
5. B28F Door Ajar Switch - Right Sliding (Cargo or Passenger) B28F Door Ajar Switch - Right Sliding
