X200 Steering Column Harness to Instrument Panel Harness

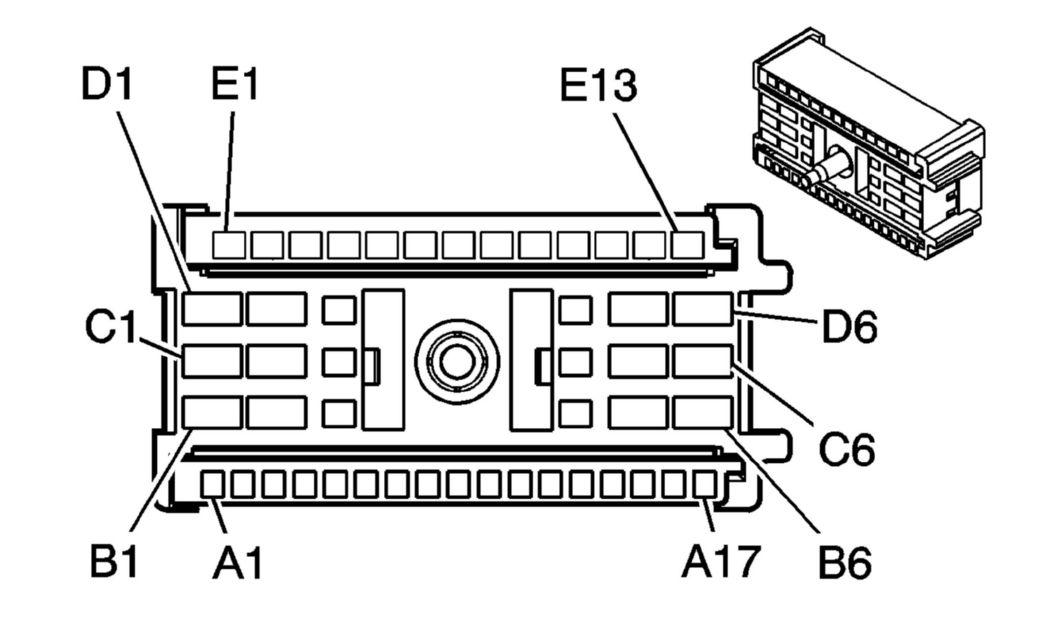

GM1539001Courtesy of GENERAL MOTORS COMPANY
GM510556Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Steering Column
  • OEM Connector: Not Available
  • Service Connector: Service by Harness
  • Description: 48-Way F
 Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 15492579
  • Service Connector: 88988982
  • Description: 48-Way M 150, 280, 630 Metri-Pack Series (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I Not Required J-35616-42 (RD) No Tool Required Not Required Not Required Not Required Not Required
II 13505668 J-35616-3 (GY) J-38125-12A Not Required Not Required Not Required Not Required
III 13575463 J-35616-3 (GY) J-38125-12A Not Required Not Required Not Required Not Required
IV 13575715 J-35616-5 (PU) J-38125-11A Not Required Not Required Not Required Not Required
V 19330180 J-35616-43 (RD) J-38125-11A Not Required Not Required Not Required Not Required
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
A1 0.35 TN 28 I - Horn Relay Control A1 0.35 TN 28 III -
A3 0.35 PK 1444 I - Steering Wheel Controls 12 Volt Reference A3 0.35 PK 1444 III -
A4 0.35 PU/ 5526 I - Tap Up/Down Switch Signal A4 0.35 PU/ 5526 III -
A6 0.5 L-GN/BN 2087 I - Multi-axis Acceleration Sensor Supply Voltage A6 0.5 L-GN/BN 2087 II -
A9 0.35 PK 3 I - Run/Crank Ignition 1 Voltage A9 0.35 PK 3 III -
A11 0.35 L-GN/ 6818 I - Steering Wheel Controls Signal 1 A11 0.35 L-GN/ 6818 III -
A13 0.35 D-GN/WH 7158 I - Cruise Control Indicator Dimming Signal A13 0.35 D-GN/WH 7158 III -
A15 0.35 BN 6136 I - Control A15 0.35 BN 6136 III -
A17 0.35 GY 1884 I - Cruise Control Set/Coast/Resume/Accelerate Switch Signal A17 0.35 GY 1884 III -
B1 0.35 RD/WH 540 I - Secondary Fused Battery Positive Voltage 5 B1 0.35 RD/WH 540 V -
B3 0.35 WH 111 I - Hazard Warning Switch Signal B3 0.35 WH 111 IV -
B6 0.35 PK 1020 I - Off/Run/Crank Ignition Voltage 2 B6 0.35 PK 1020 V -
C1 0.35 WH 530 I - Off/Run/Crank Ignition Voltage C1 0.35 WH 530 V -
C3 0.35 YE 307 I - Headlamp Switch Flash Signal C3 0.35 YE 307 IV -
C6 0.35 BN 4 I - Accessory Voltage C6 0.35 BN 4 V -
D1 0.35 TN/BK 6009 I - Windshield Wiper Switch Low Reference D1 0.35 TN/BK 6009 V -
D3 0.35 YE 525 I - High Beam Select Switch Low Beam Signal D3 0.35 YE 525 IV -
D4 0.5 TN/WH 816 I - Brake Transmission Shift Interlock Solenoid Actuator Control D4 0.5 TN/WH 816 IV -
D6 0.35 PK 94 I - Windshield Washer Switch Signal D6 0.35 PK 94 V -
E1 0.5 BK 350 I - Ground 3 E1 0.5 BK 350 IV -
E3 0.5 BK/WH 351 I - Ground 3 E3 0.5 BK/WH 351 IV -
E4 0.5 BU/YE 6105 I - High Speed GMLAN Serial Data [+] 2 E4 0.5 BU/YE 6105 IV -
E5 0.5 WH 6106 I - High Speed GMLAN Serial Data [-] 2 E5 0.5 WH 6106 IV -
E6 0.5 BU/YE 6105 I - High Speed GMLAN Serial Data [+] 2 E6 0.5 BU/YE 6105 IV -
E7 0.5 WH 6106 I - High Speed GMLAN Serial Data [-] 2 E7 0.5 WH 6106 IV -
E8 0.35 D-GN/ 663 I - Hazard Warning Switch Left Turn Signal E8 0.35 D-GN/ 663 IV -
E9 0.35 TN 664 I - Hazard Warning Switch Right Turn Signal E9 0.35 TN 664 IV -
E11 0.35 L-BU/ 1714 I - Windshield Wiper Switch Low Signal E11 0.35 L-BU/ 1714 IV -
E12 0.35 L-GN/ 1715 I - Windshield Wiper Switch High Signal E12 0.35 L-GN/ 1715 IV -
E13 0.35 D-GN/ 5060 I - Low Speed GMLAN Serial Data E13 0.35 D-GN/ 5060 IV -
