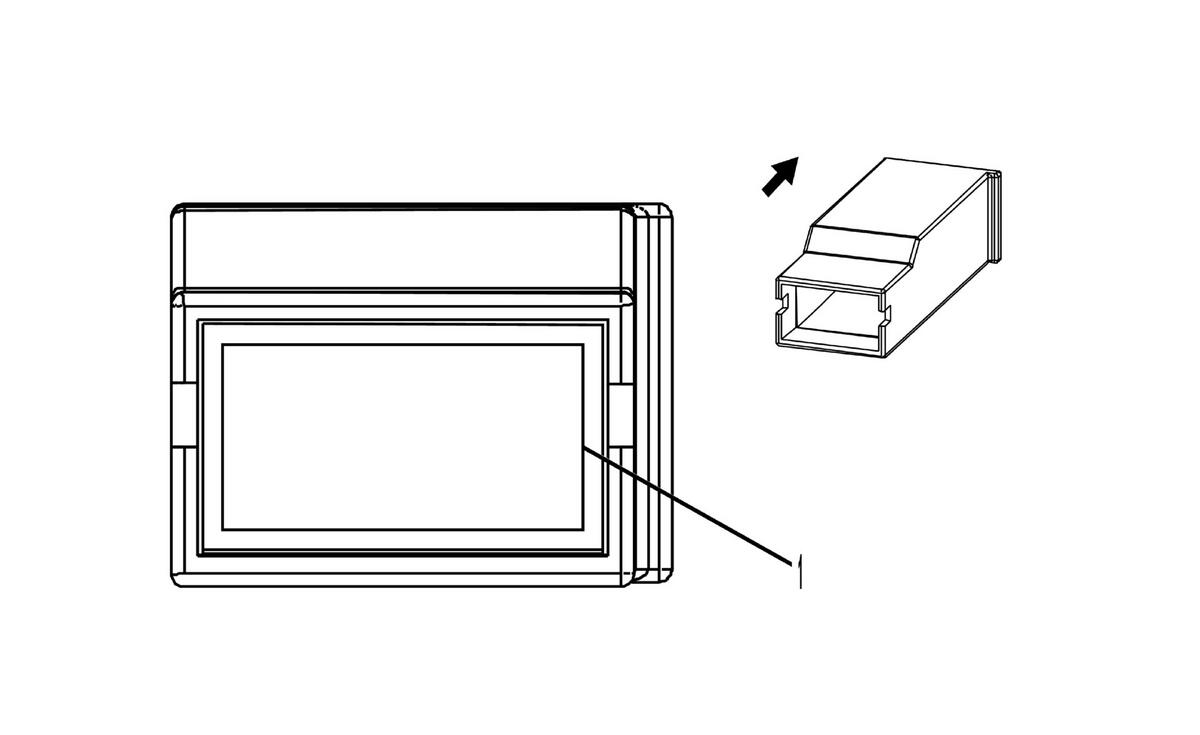

E18L Rear Defogger Grid - Left X1
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Rear Window Defogger
- OEM Connector: 12103107
- Service Connector: Service by Harness - See Part Catalog
- Description: 1-Way F 6.3 Positive Lock Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
PU |
293 |
Rear Defogger Grid Control |
I |
- |
