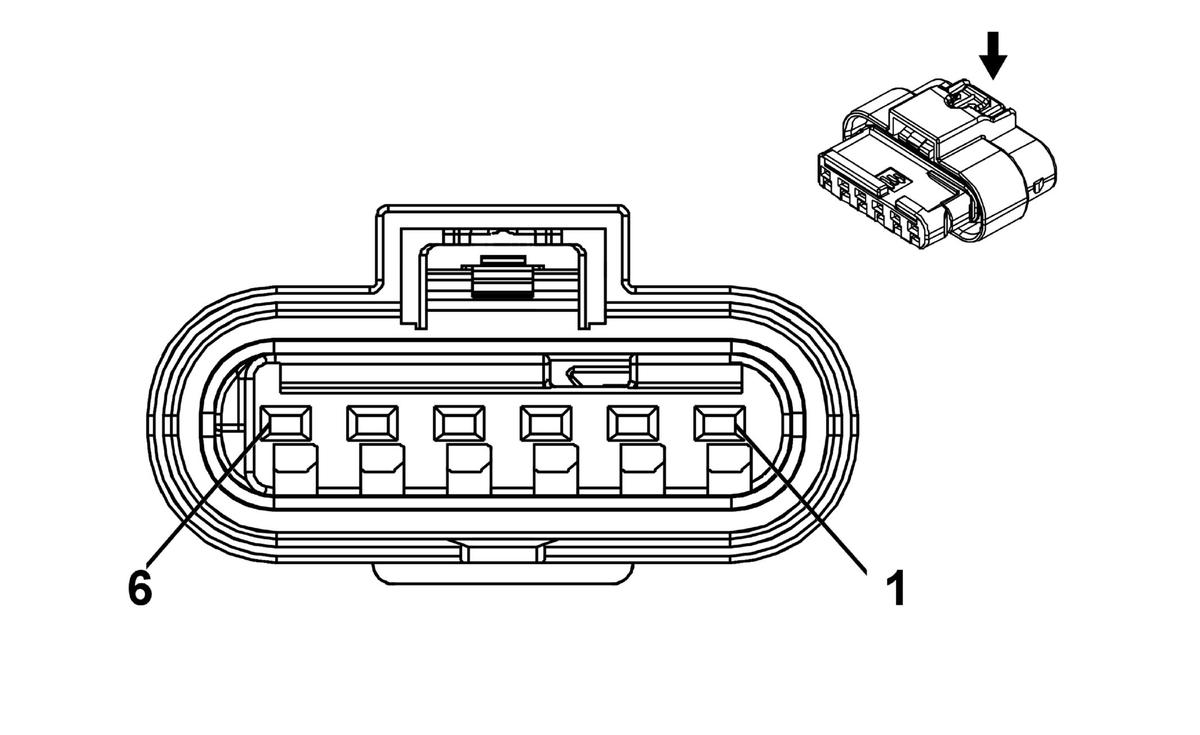

B136 Exhaust Particulate Matter Sensor
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Chassis
- OEM Connector: 33226734
- Service Connector: 19354530
- Description: 6-Way F 1.2 MCON-LL Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1 |
BK |
150 |
Ground 1 |
I |
- |
| 2 |
0.5 |
L-GN/ |
7494 |
High Speed GMLAN Serial Data [-] 3 |
I |
- |
| 3 |
0.5 |
L-GN/ |
7494 |
High Speed GMLAN Serial Data [-] 3 |
I |
- |
| 4 |
0.5 |
D-GN/ |
7493 |
High Speed GMLAN Serial Data [+] 3 |
I |
- |
| 5 |
0.5 |
D-GN/ |
7493 |
High Speed GMLAN Serial Data [+] 3 |
I |
- |
| 6 |
1 |
GY |
3672 |
NOx Sensor 2 Control |
I |
- |
