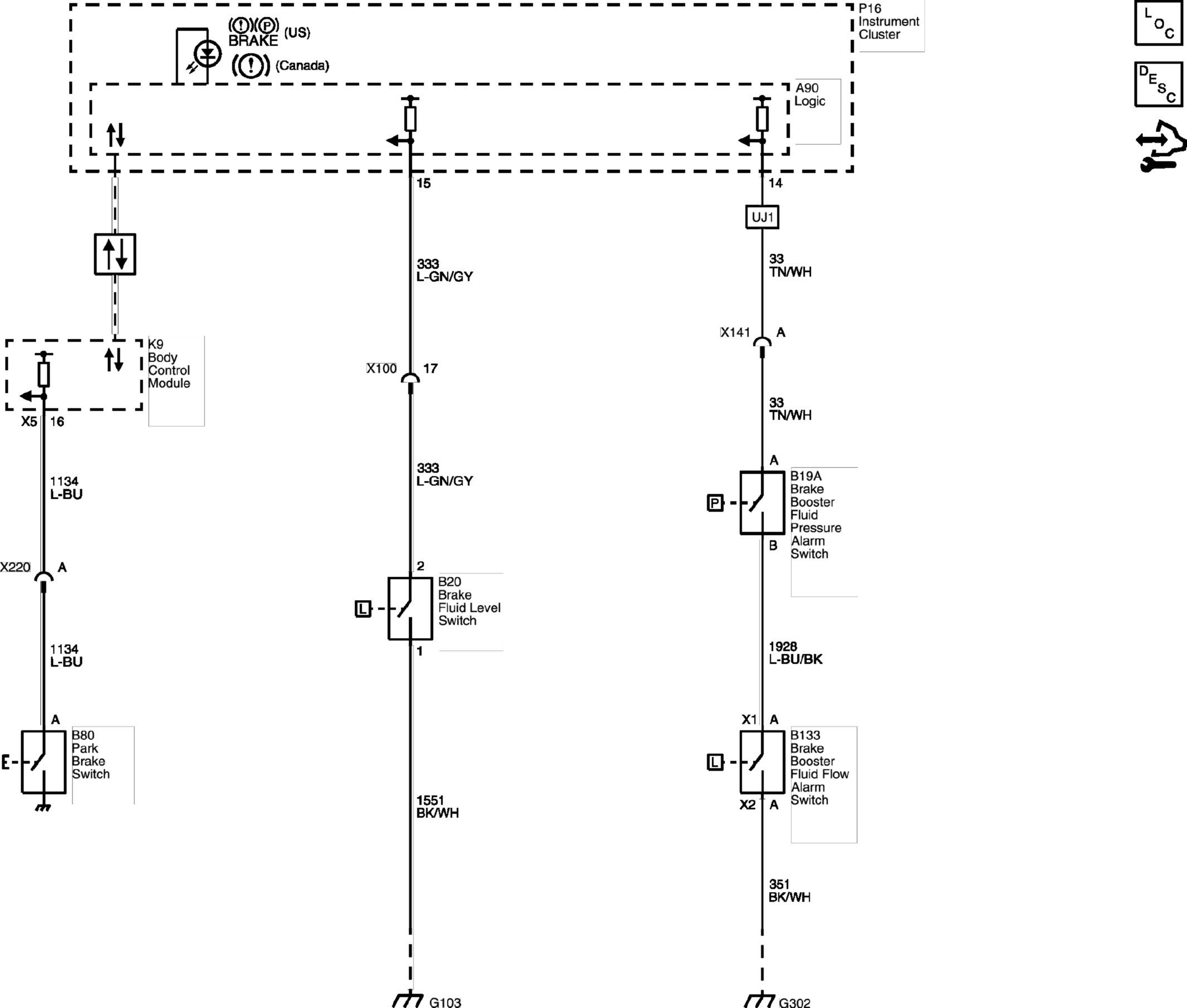

Home >> Chevrolet >> 2020 >> Express 2500 LS, 6.0L Eng VIN G >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Hydraulic Brakes >> Schematic Wiring Diagrams >> Hydraulic Brake Wiring Schematics >> Hydraulic Brake
