Installation Procedure

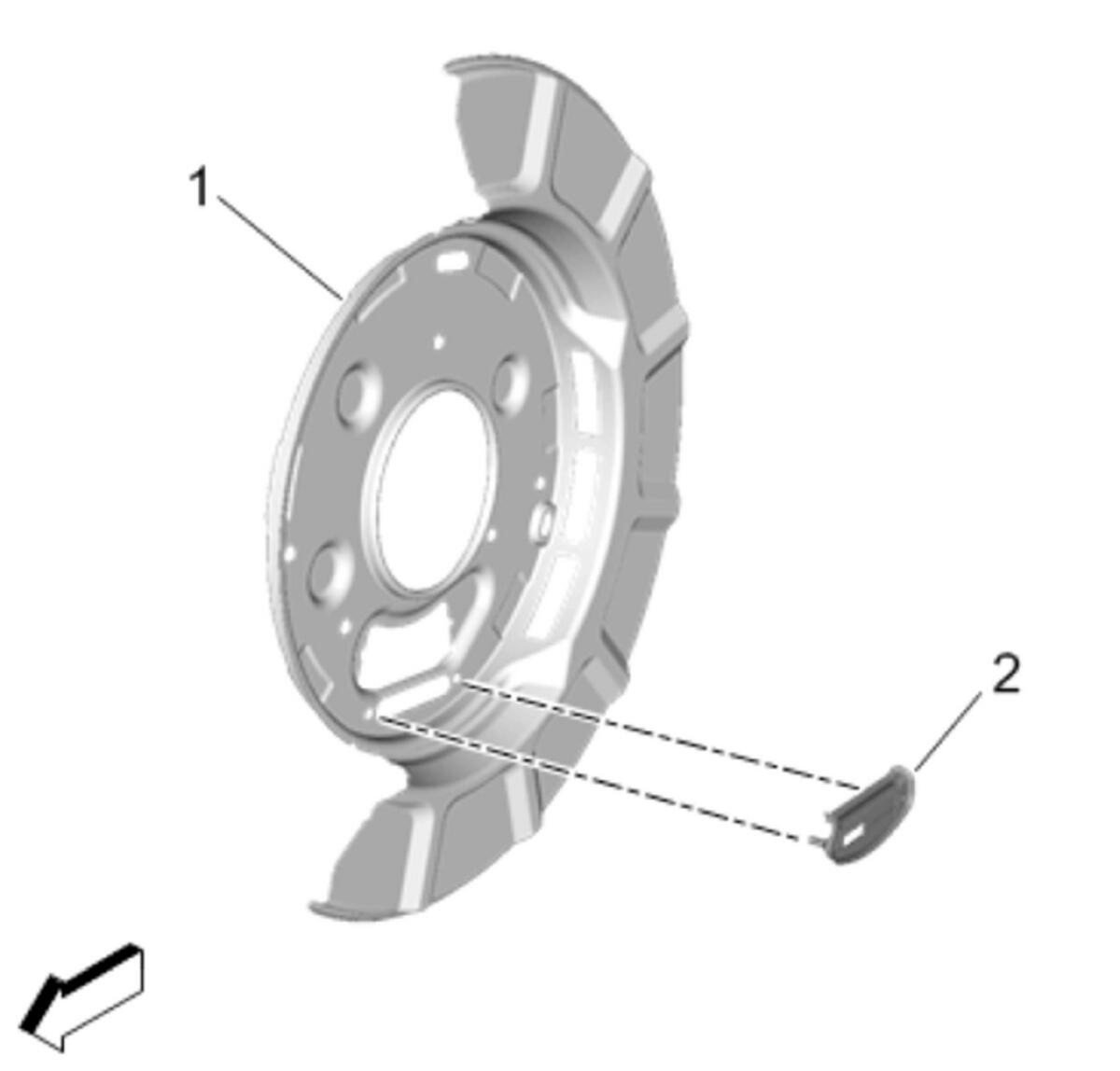

Rear Parking Brake Actuator Boot (2) @ Rear Brake Shield (1) - Install

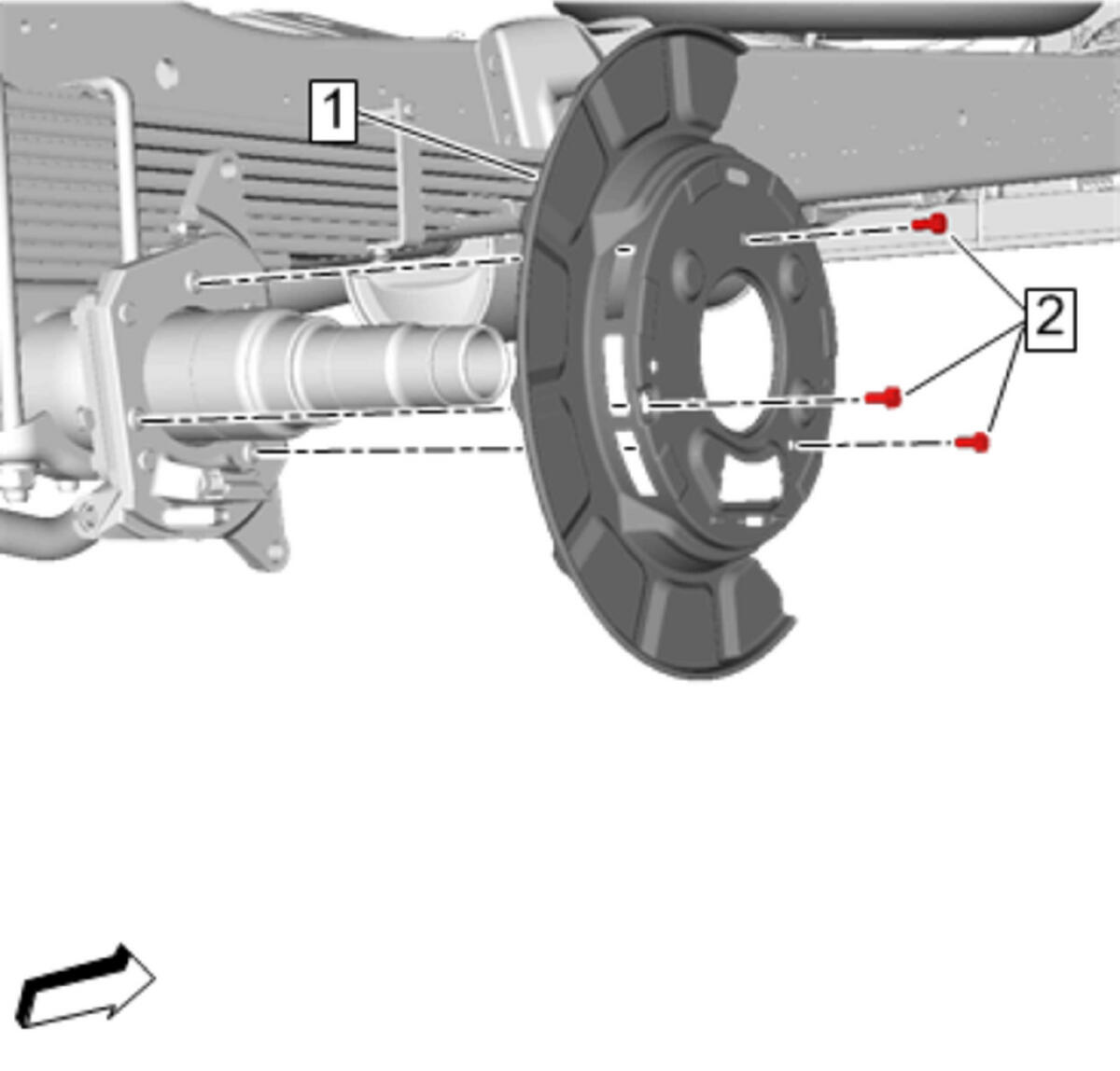

Rear Brake Shield (1) - Install
- Rear Brake Shield Bolt (2) - Install and tighten [3x] 10 N.m (89 lb in)
Rear Parking Brake Actuator Lever (1) @ Rear Brake Shield (2) - Install

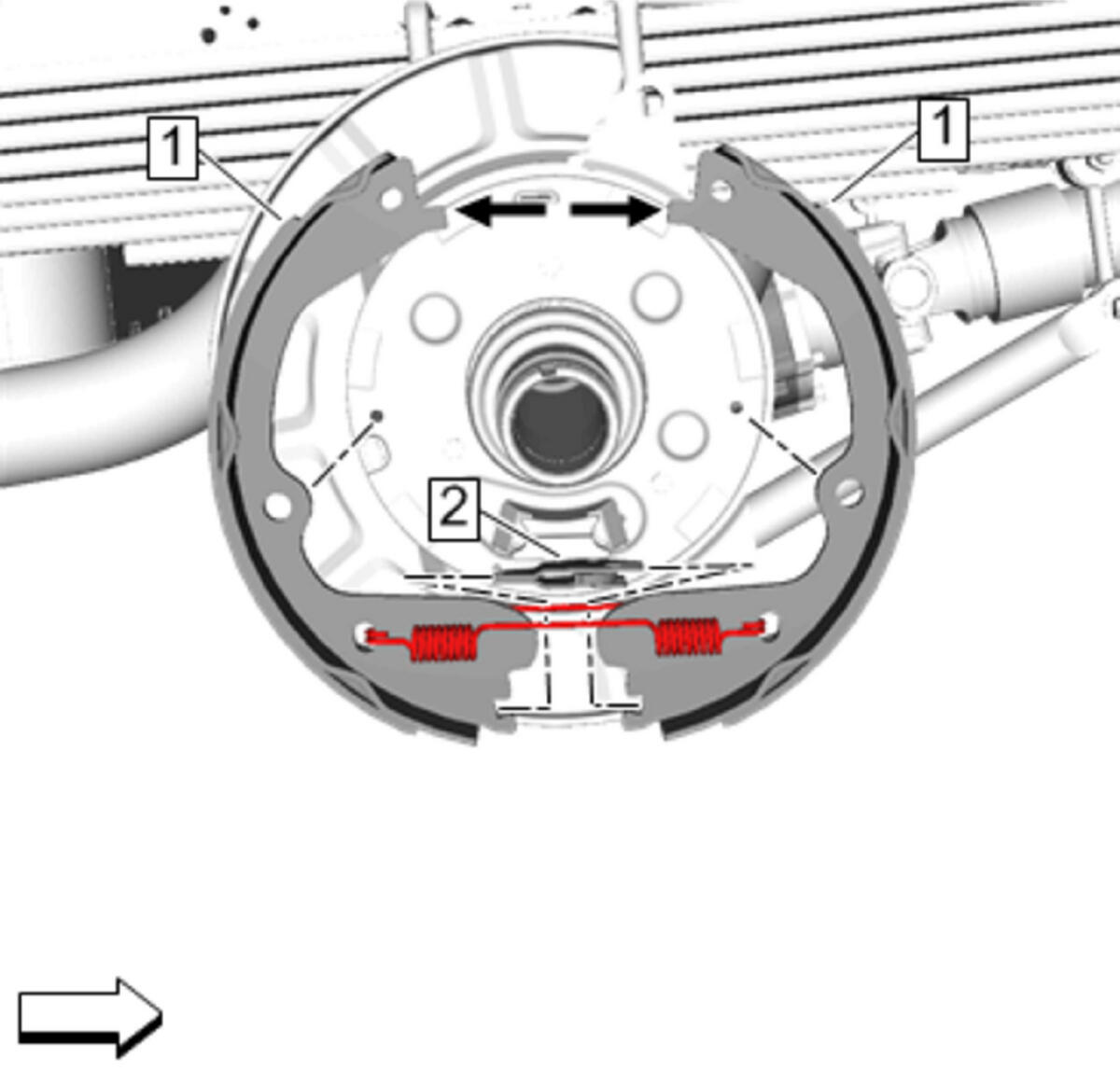

Rear Parking Brake Shoe (1) - Install [2x] - Parking Brake Shoe Replacement (JH6) , or Parking Brake Shoe Replacement (JH9)

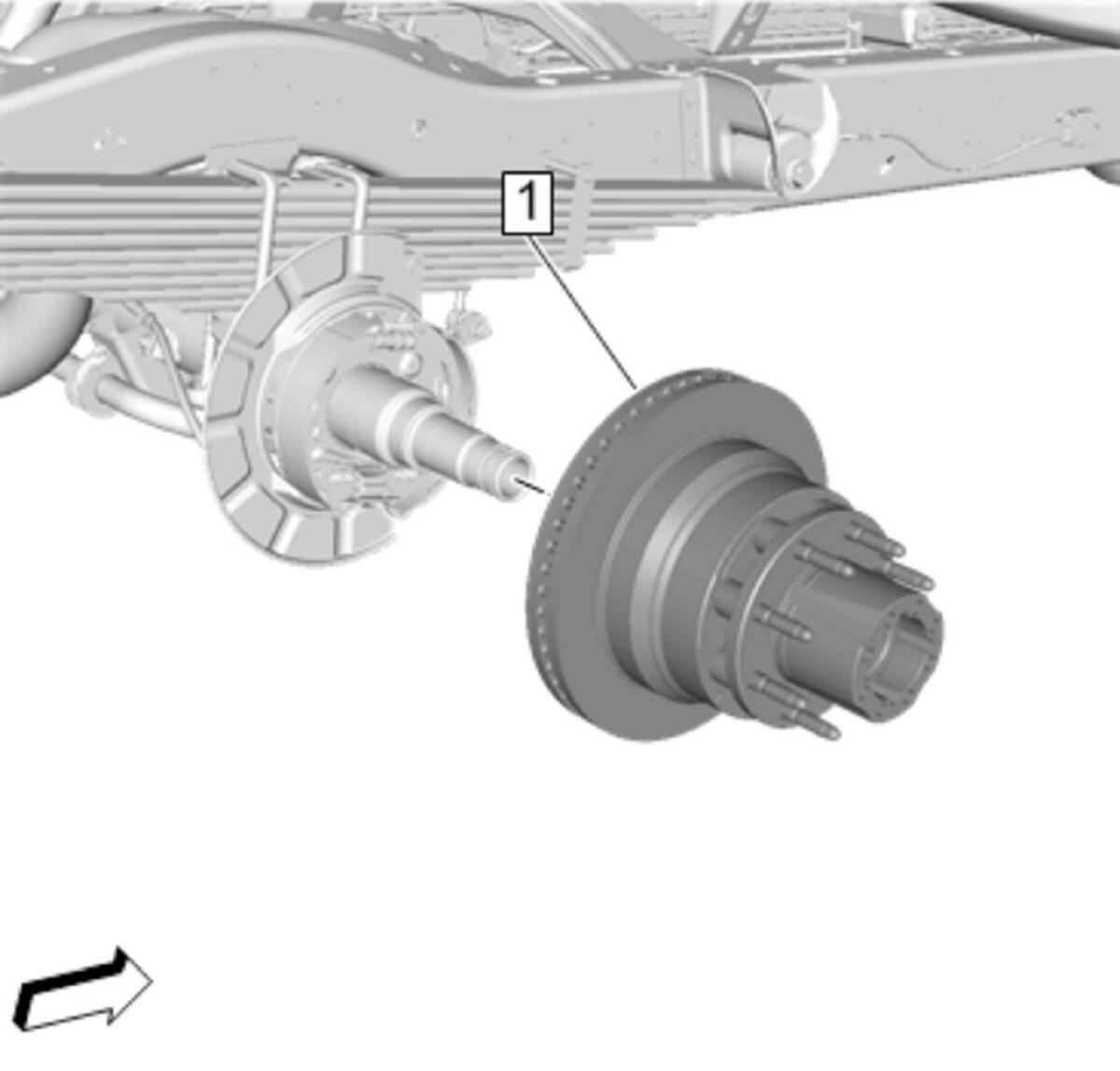

Rear Brake Rotor and Hub Assembly (1) - Install - Rear Axle Hub, Bearing, Cup, and/or Seal Replacement
Parking Brake Rear Cable (2) @ Rear Parking Brake Actuator Lever (1) - Install - Parking Brake Rear Cable Replacement - Left Side , or Parking Brake Rear Cable Replacement - Right Side
- Install the tire and wheel assembly. Tire and Wheel Removal and Installation (Without Dual Rear Wheels) , or Tire and Wheel Removal and Installation (With Dual Rear Wheels)
- Remove the support and lower the vehicle.
- Enable the parking brake cable adjuster. Parking Brake Cable Adjuster Enabling
CAUTION:
Refer to Fastener Caution .
