Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

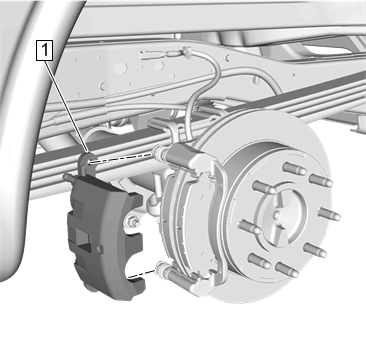

Brake Caliper (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

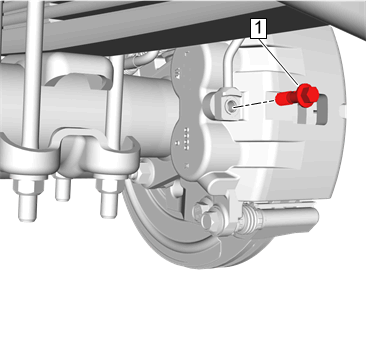

Brake Caliper Guide Pin Bolt- Upper (1) - Install and tighten - Rear Brake Caliper Hardware Replacement (JH6) , or Rear Brake Caliper Hardware Replacement (JH9)
Courtesy of GENERAL MOTORS COMPANY

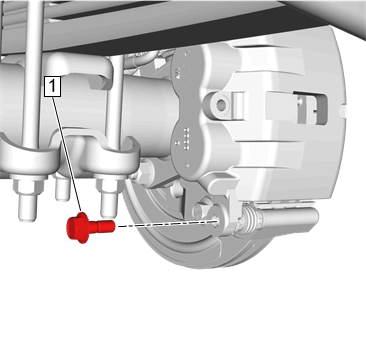

Brake Caliper Guide Pin Bolt- Lower (1) - Install and tighten - Rear Brake Caliper Hardware Replacement (JH6) , or Rear Brake Caliper Hardware Replacement (JH9)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Install NEW brake hose fitting gaskets.

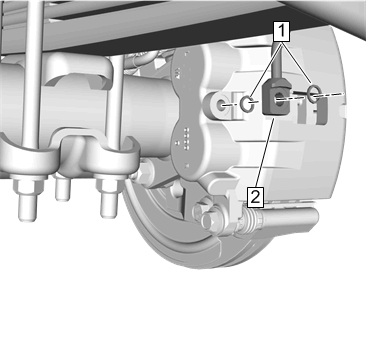

Brake Hose Fitting Gasket (1) @ Brake Hose Fitting (2) - Install NEW [2x]
Courtesy of GENERAL MOTORS COMPANY

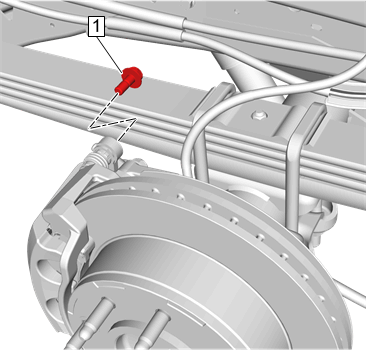

Brake Hose Fitting Bolt (1) - Install and tighten - Rear Brake Hose Replacement
Bleed the brake system. Hydraulic Brake System Bleeding (Pressure) , or Hydraulic Brake System Bleeding (Manual)
Fill the brake master cylinder reservoir to the maximum-full level with GM approved brake fluid from a clean, sealed brake fluid container. Adhesives, Fluids, Lubricants, and Sealers
Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation (Without Dual Rear Wheels) , or Tire and Wheel Removal and Installation (With Dual Rear Wheels)
Remove the support and lower the vehicle.
