Installation Procedure
- Thoroughly clean the brake pad hardware mating surfaces of the caliper bracket of any debris and corrosion.

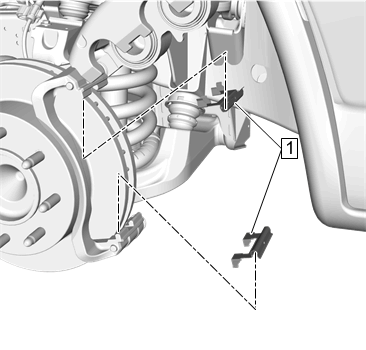

Front Disc Brake Pad Retaining Spring (1) - Install NEW [2x]

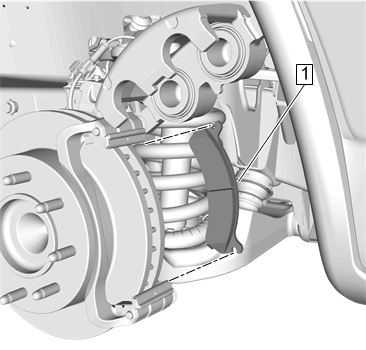

Front Disc Brake Inner Pad (1) - Install

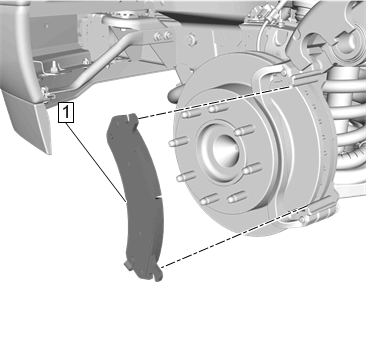

Front Disc Brake Outer Pad (1) - Install

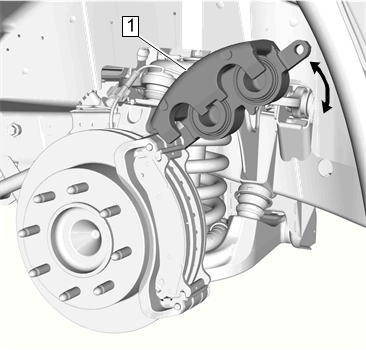

Rotate the brake caliper downward to its installed position. (1)
- NOTE:
Do NOT use air tools to remove or install the guide pin bolts. Use hand tools ONLY.

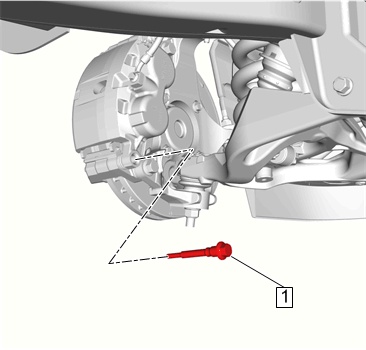

Brake Caliper Guide Pin Bolt (1) - Install and tighten - Front Brake Caliper Guide Pin Replacement (JH6) , or Front Brake Caliper Guide Pin Replacement (JH9)
- Install the front tire and wheel assemblies. Tire and Wheel Removal and Installation (Without Dual Rear Wheels) , or Tire and Wheel Removal and Installation (With Dual Rear Wheels)
- Remove the supports and lower the vehicle.
- With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
- Slowly release the brake pedal.
- Wait 15 seconds, then repeat steps 9-10 until a firm brake pedal is obtained. This will properly seat the brake caliper pistons and brake pads.
- Fill the brake master cylinder reservoir to the maximum-full level with GM approved brake fluid from a clean, sealed brake fluid container. Adhesives, Fluids, Lubricants, and Sealers
- Burnish the brake pads and rotors. Brake Pad and Rotor Burnishing
