Installation Procedure

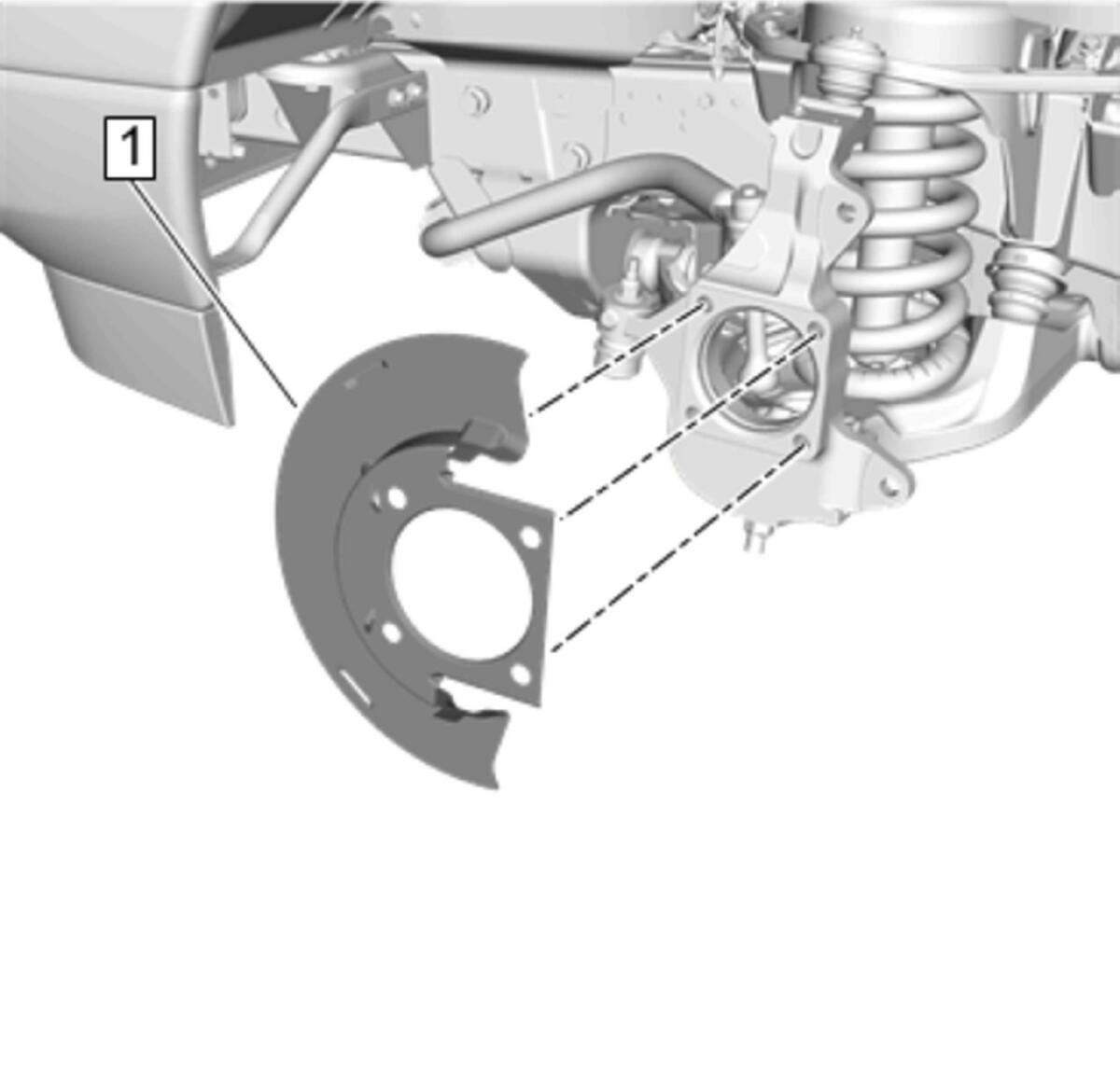

  1. GM4829377Courtesy of GENERAL MOTORS COMPANY

    Front Brake Shield (1) - Install

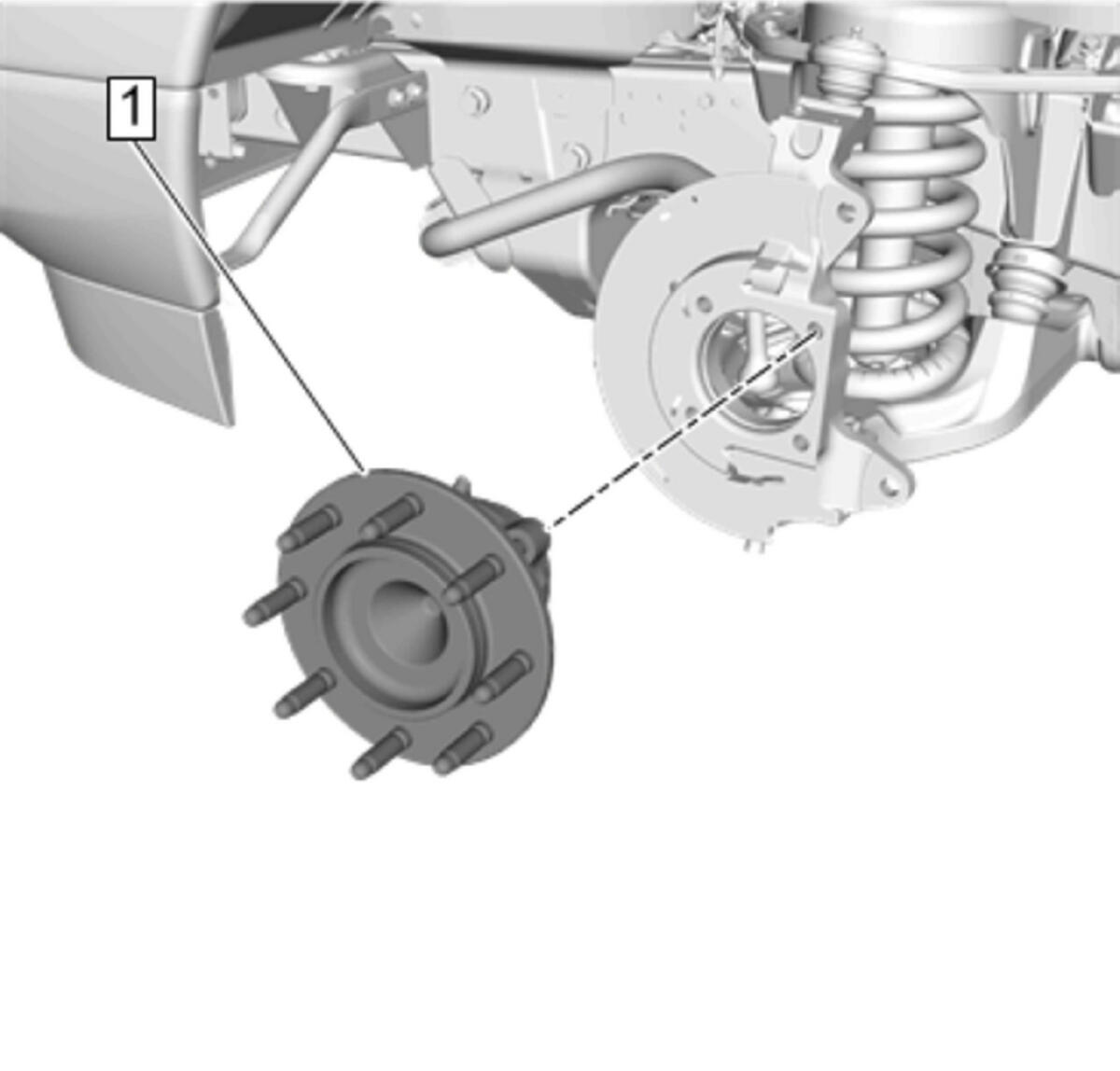

  2. GM4829376Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Hub (1) - Install - Front Wheel Hub, Bearing, and Seal Replacement

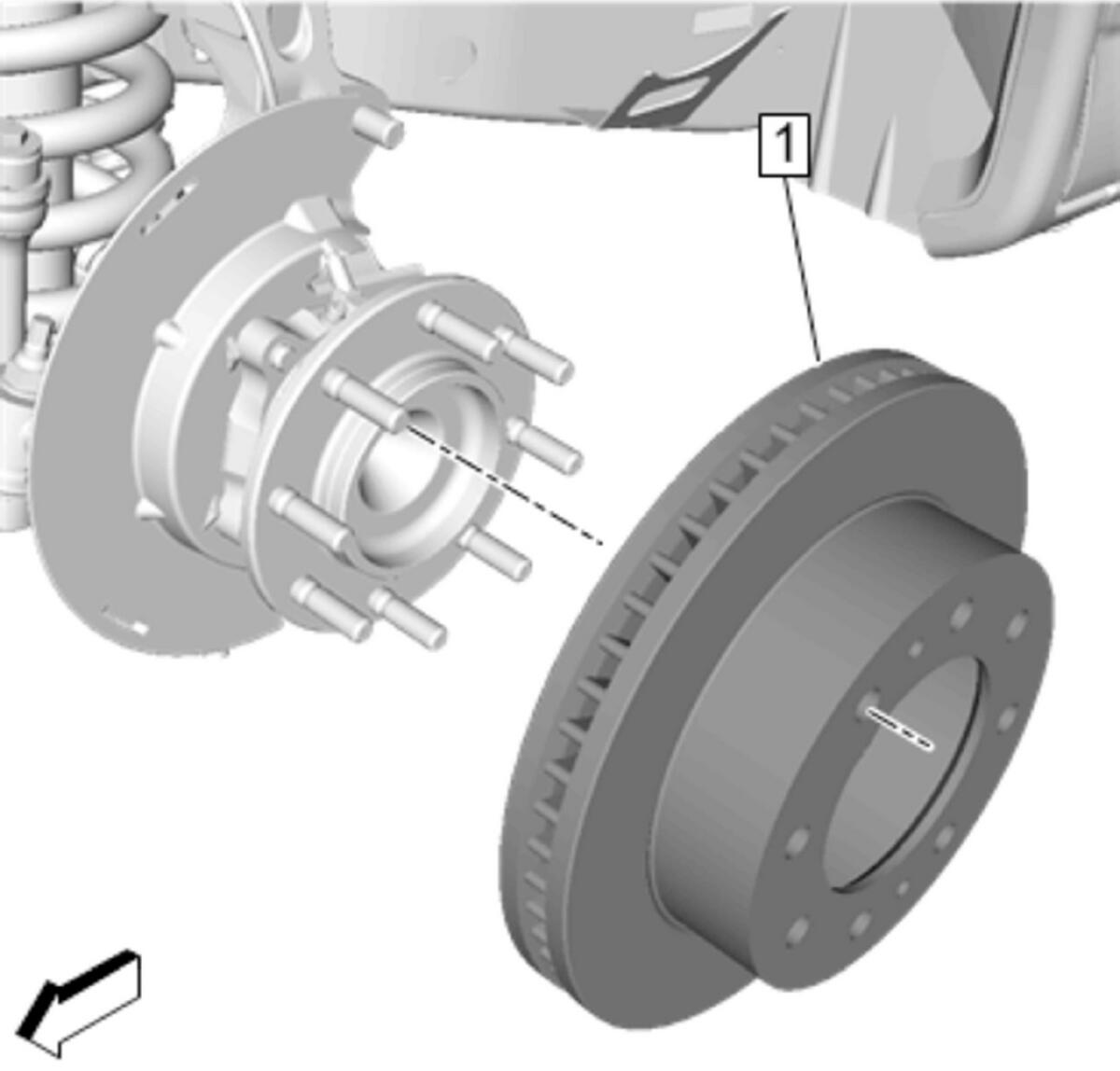

  3. GM4871141Courtesy of GENERAL MOTORS COMPANY

    Front Brake Rotor (1) - Install - Front Brake Rotor Replacement (JH6) , or Front Brake Rotor Replacement (JH9)

  4. Install the tire and wheel assembly. Lifting and Jacking the Vehicle
  5. Remove the support and lower the vehicle.
