Installation Procedure
- Prepare the brake caliper bracket bolts and the bracket threaded holes for assembly:
- Remove all traces of the adhesive patch from the bolt and the mating threads using the appropriate tools.
- Thoroughly clean the residue from the bolt threads by using denatured alcohol or equivalent and allow to dry.
- Apply threadlocker to 2/3 of the threaded length of the bolts. Adhesives, Fluids, Lubricants, and Sealers

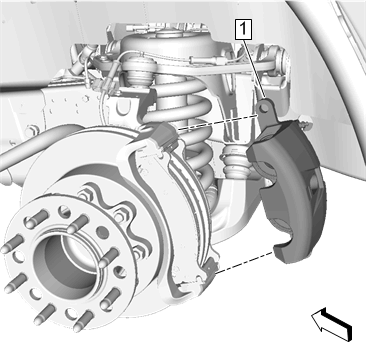

Brake Caliper (1) - Install
- CAUTION:
Brake Caliper Guide Pin Bolt (1) - Install and tighten [2x] - Front Brake Caliper Guide Pin Replacement (JH6) , or Front Brake Caliper Guide Pin Replacement (JH9)
- Remove the caps from the brake caliper and the brake hose.
- NOTE:
Install NEW brake hose fitting gaskets.

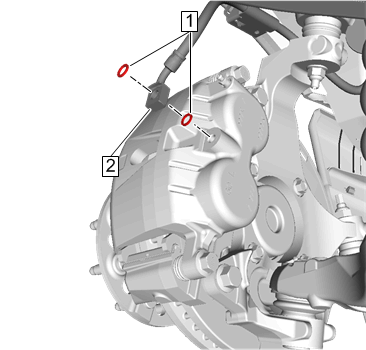

Brake Hose Fitting Gasket (1) @ Brake Hose Fitting (2) - Install NEW [2x]

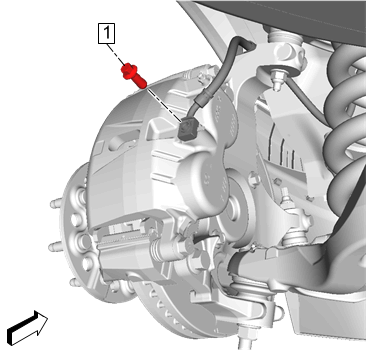

Brake Hose Fitting Bolt (1) - Install and tighten Front Brake Hose Replacement
- Bleed the brake system. Hydraulic Brake System Bleeding (Pressure) , or Hydraulic Brake System Bleeding (Manual)
- Install the front tire and wheel assemblies. Tire and Wheel Removal and Installation (Without Dual Rear Wheels) , or Tire and Wheel Removal and Installation (With Dual Rear Wheels)
- Lower the vehicle.
