Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Brake Caliper (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

Brake Caliper Guide Pin Bolt (1) - Install and tighten [2x] - Front Brake Caliper Guide Pin Replacement (JH6) , or Front Brake Caliper Guide Pin Replacement (JH9)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Install NEW brake hose fitting gaskets.

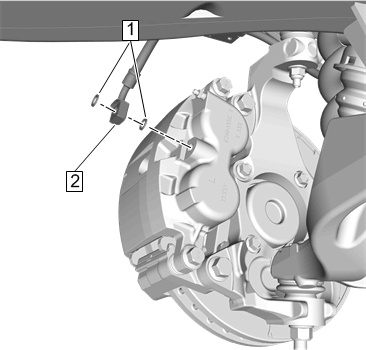

Brake Hose Fitting Gasket (1) @ Brake Hose Fitting (2) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

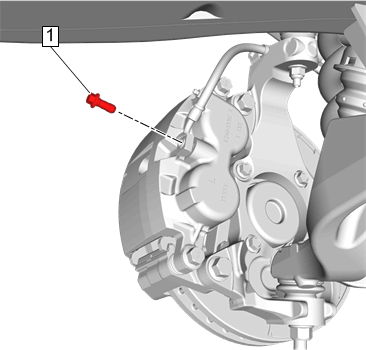

Brake Hose Fitting Bolt (1) - Install and tighten Front Brake Hose Replacement
Bleed the brake system. Hydraulic Brake System Bleeding (Pressure) , or Hydraulic Brake System Bleeding (Manual)
Install the front tire and wheel assemblies. Tire and Wheel Removal and Installation (Without Dual Rear Wheels) , or Tire and Wheel Removal and Installation (With Dual Rear Wheels)
