Front Seat Removal and Installation

Courtesy of GENERAL MOTORS COMPANY

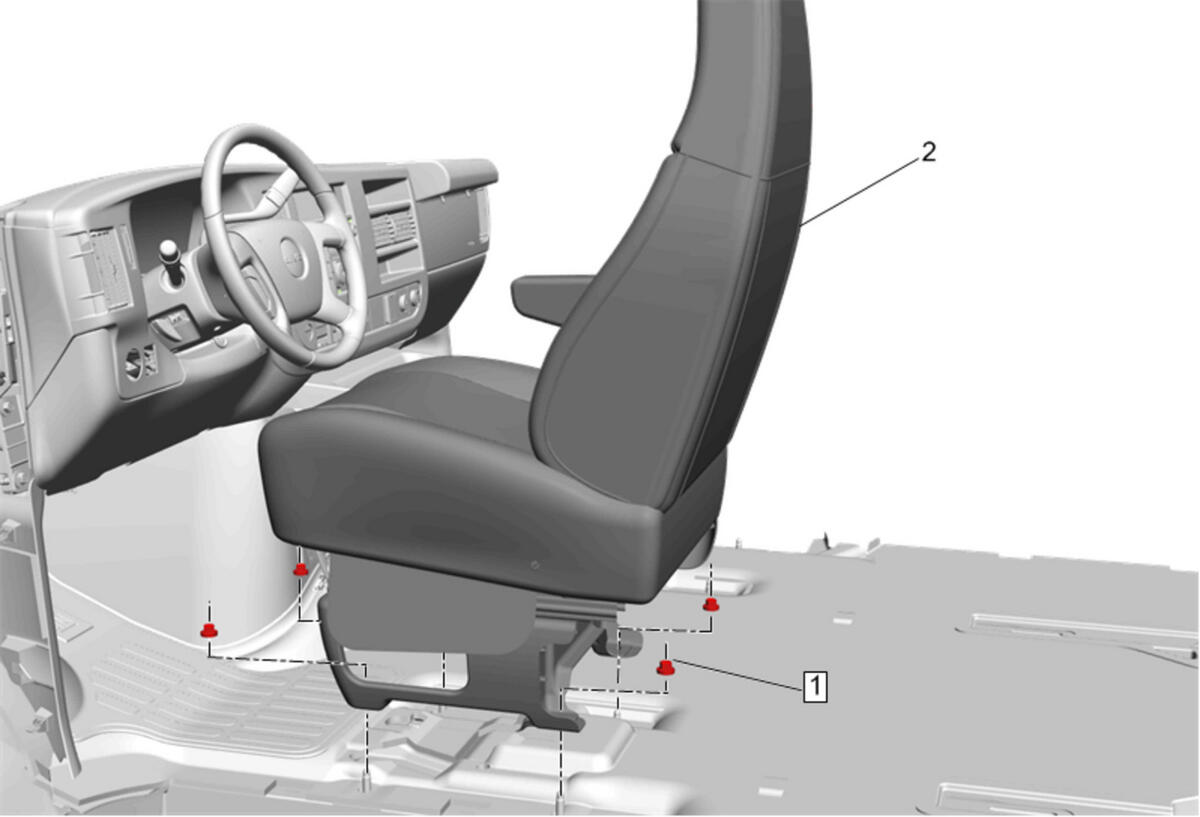

Callout	Component Name
WARNING: Refer to SIR Warning Preliminary Procedures Disable the SIR system. SIR Disabling and Enabling
1	Driver or Passenger Seat Nut [4x] CAUTION: Refer to Fastener Caution . Tighten 60 N.m (44 lb ft)
2	Front Seat Procedure Disconnect the electrical connector. With the aid of an assistant, remove the front seat. Enable the SIR System. SIR Disabling and Enabling .

Callout

Component Name

WARNING:

Preliminary Procedures Disable the SIR system. SIR Disabling and Enabling

Driver or Passenger Seat Nut [4x]

CAUTION:

Tighten
60 N.m (44 lb ft)

Front Seat

Procedure
