Front Side Door Hinge Pin and Bushing Replacement

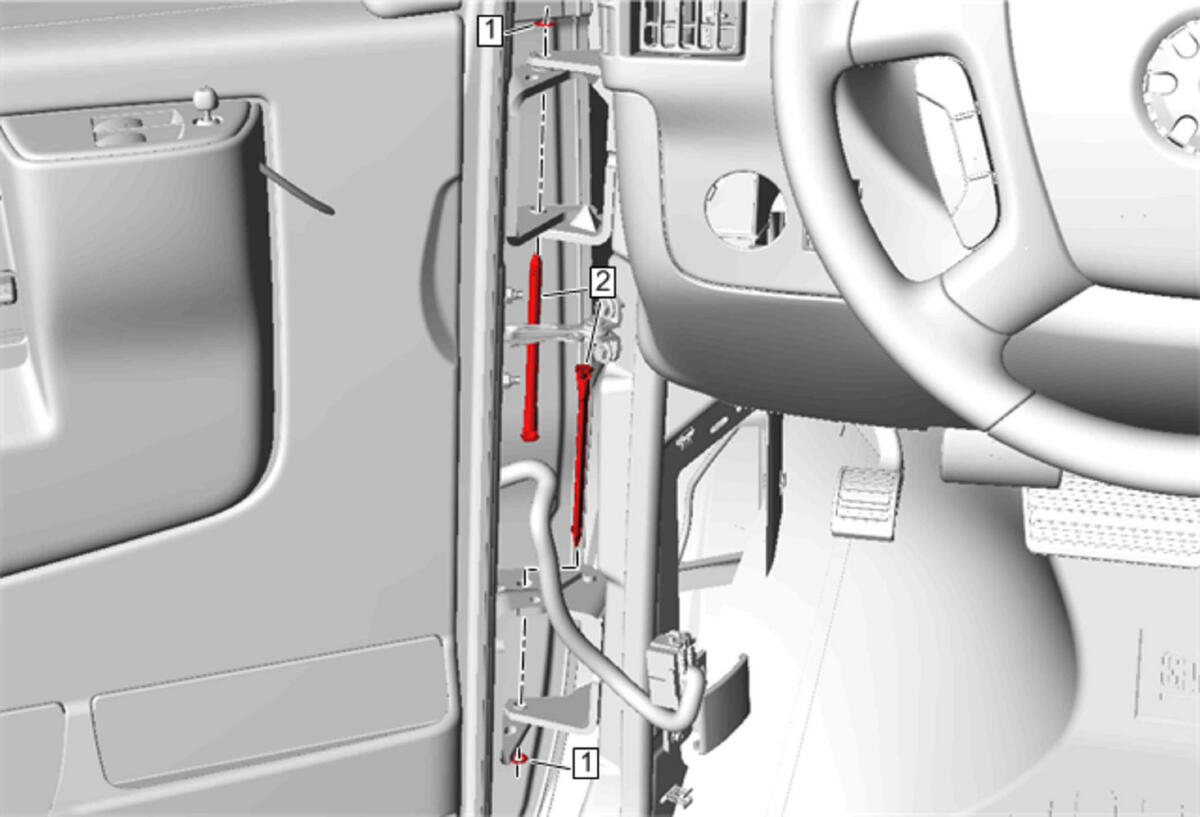

GM4850612Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Support the door before removing the hinge fastener.
1 Front Side Door Hinge Pin Retainer [2x]
2 Front Side Door Hinge Pin and Bushing[2x]
