Rear Bumper Impact Bar Replacement: Notes

  1. Spare Tire - Remove
  2. Remove the left rear tire and wheel assembly.
  3. Remove the right rear tire and wheel assembly.

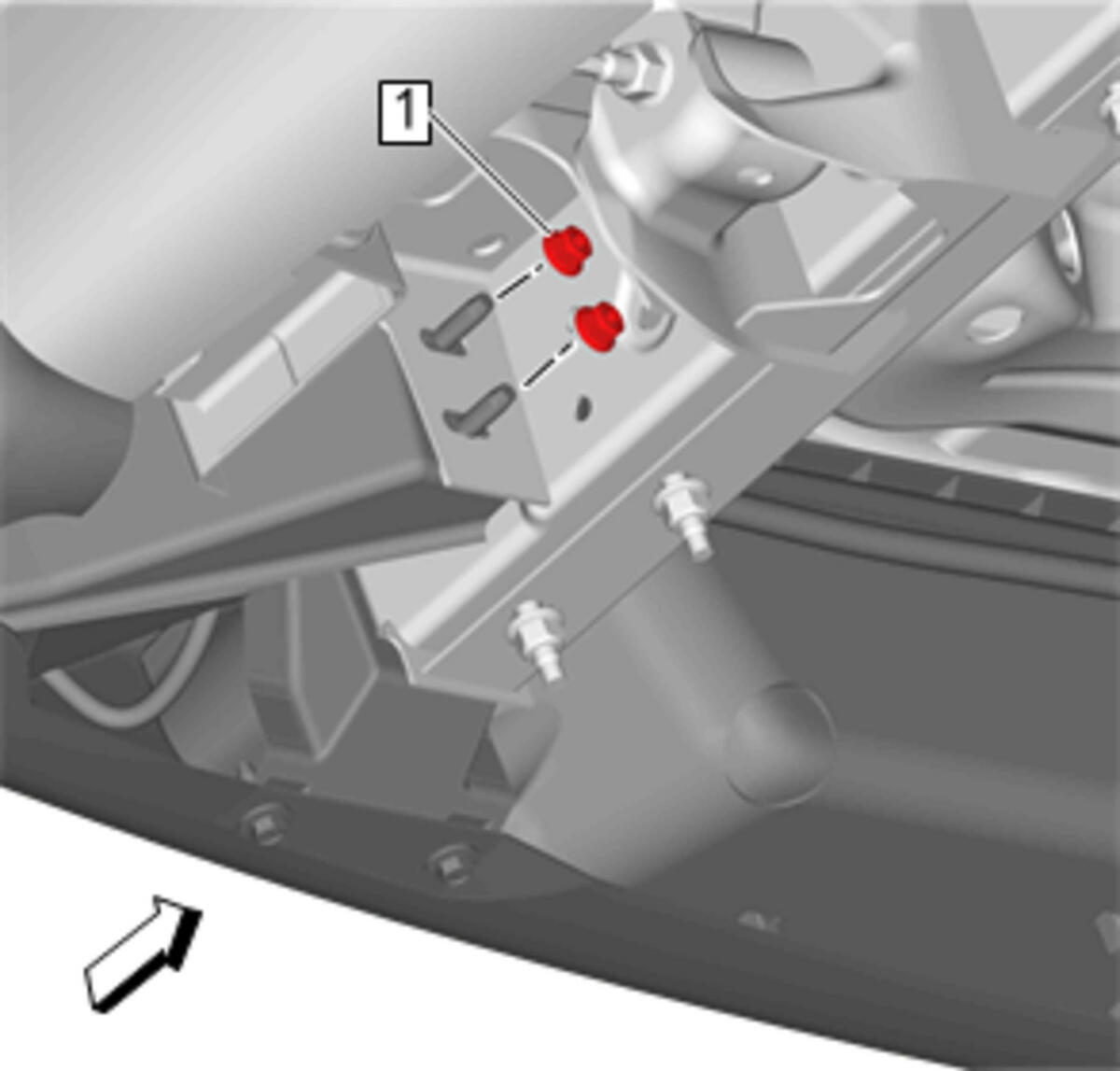

  4. GM4845326Courtesy of GENERAL MOTORS COMPANY

    Rear Bumper Impact Bar Nut (1) - Remove [4x]

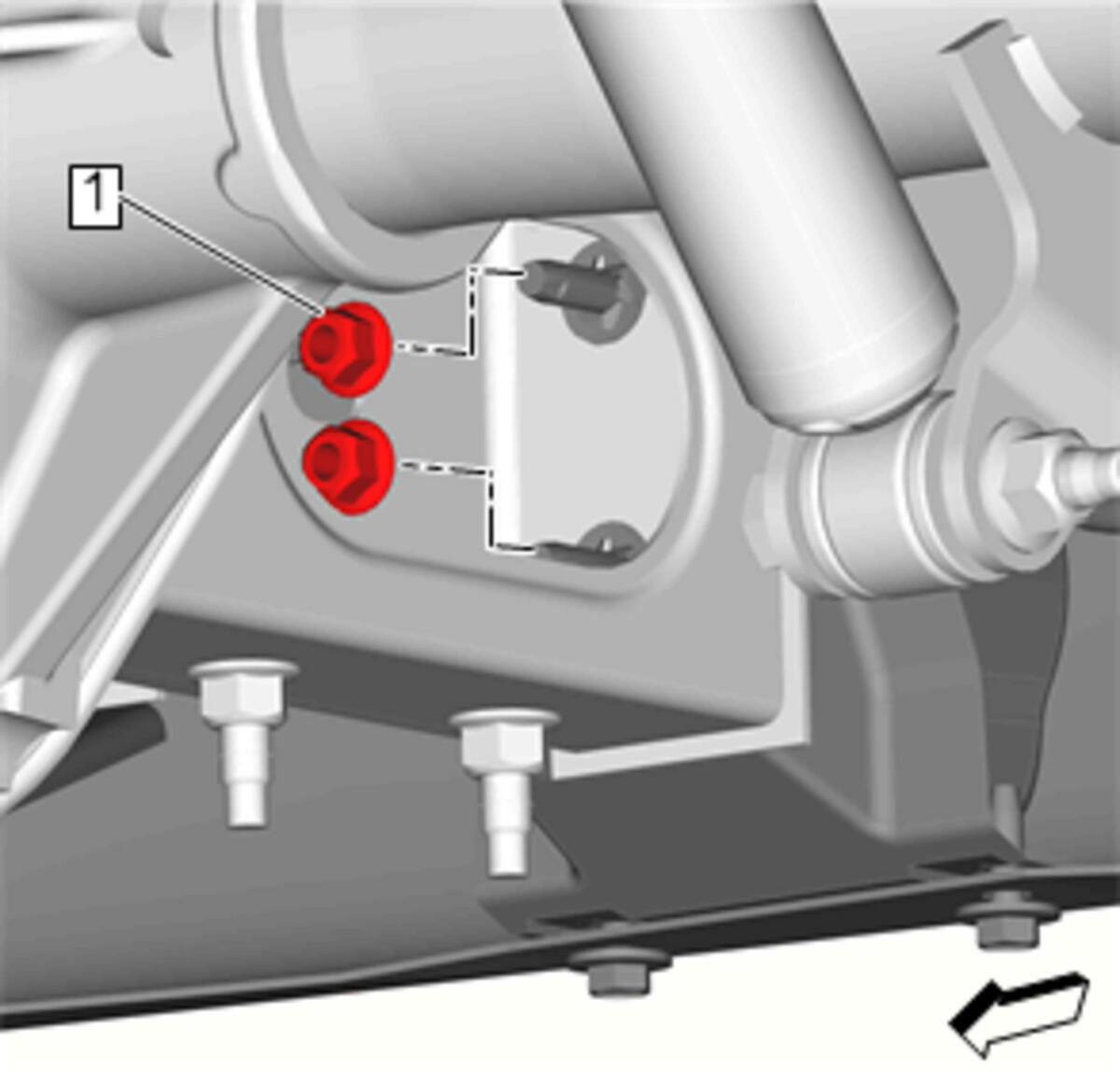

  5. GM4845328Courtesy of GENERAL MOTORS COMPANY

    Rear Bumper Impact Bar Nut (1) - Remove [4x]

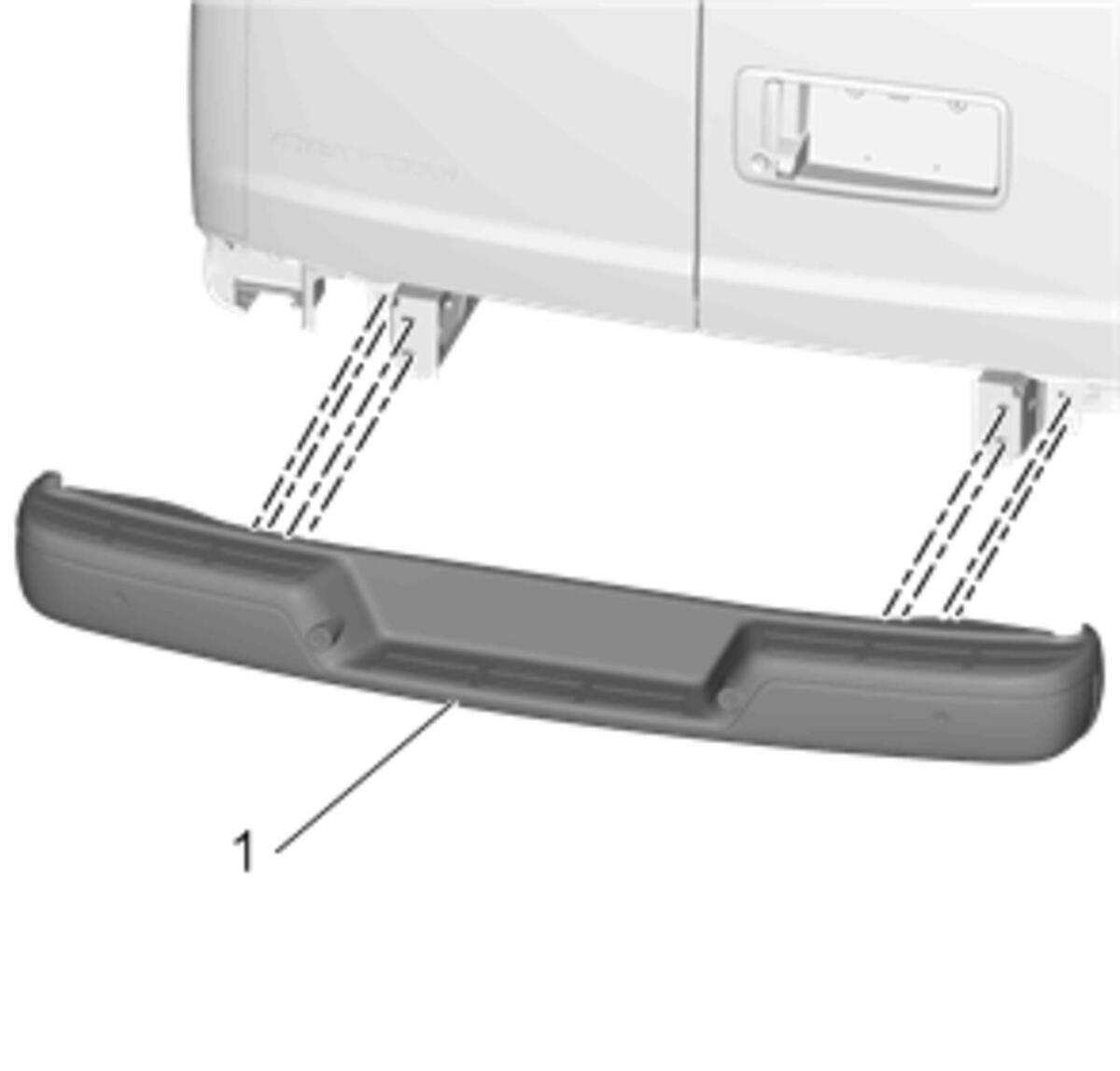

  6. GM4845329Courtesy of GENERAL MOTORS COMPANY

    Rear Bumper Impact Bar (1) - Remove

  7. Disconnect the electrical connector.
