Front Bumper Step Pad Replacement

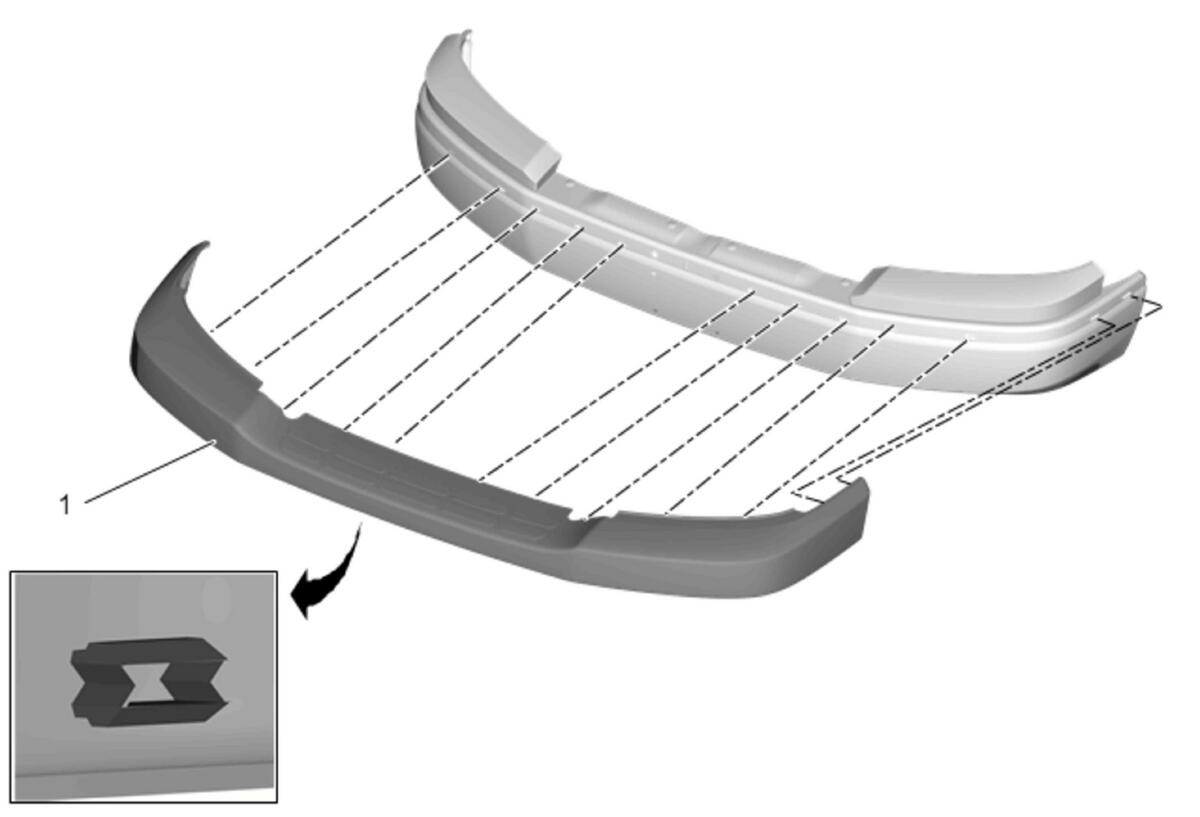

Fig 1: Front Bumper Step Pad Location
GM4845223Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Bumper Impact Bar Replacement
1 Front Bumper Step Pad
Procedure
Using a suitable tool release the front bumper step pad retainer tabs from the impact bar.
