Front Bumper Impact Bar Replacement: Notes

Removal Procedure

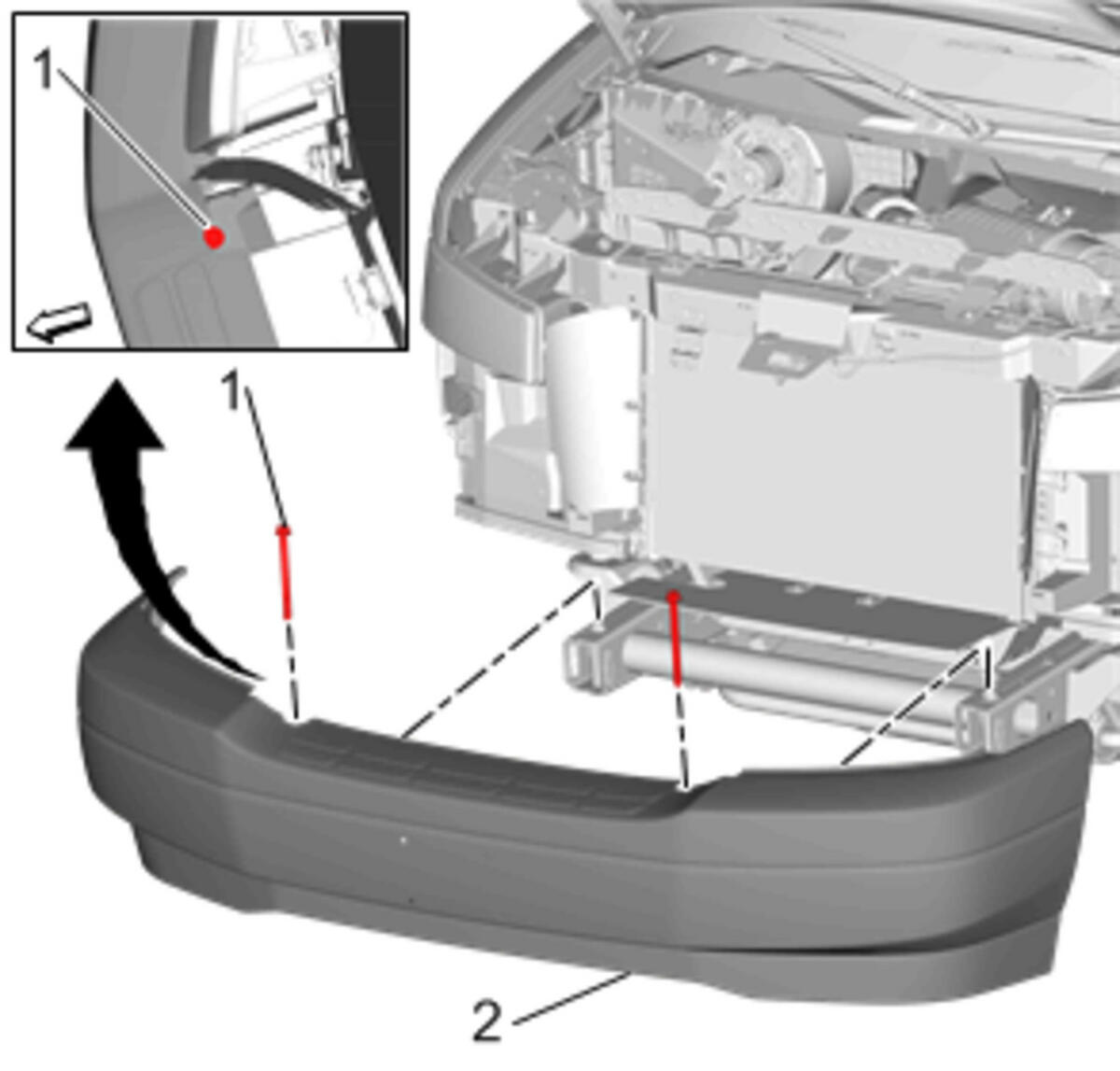

1. Fig 1: Front Bumper Impact Bar Location

   Courtesy of GENERAL MOTORS COMPANY

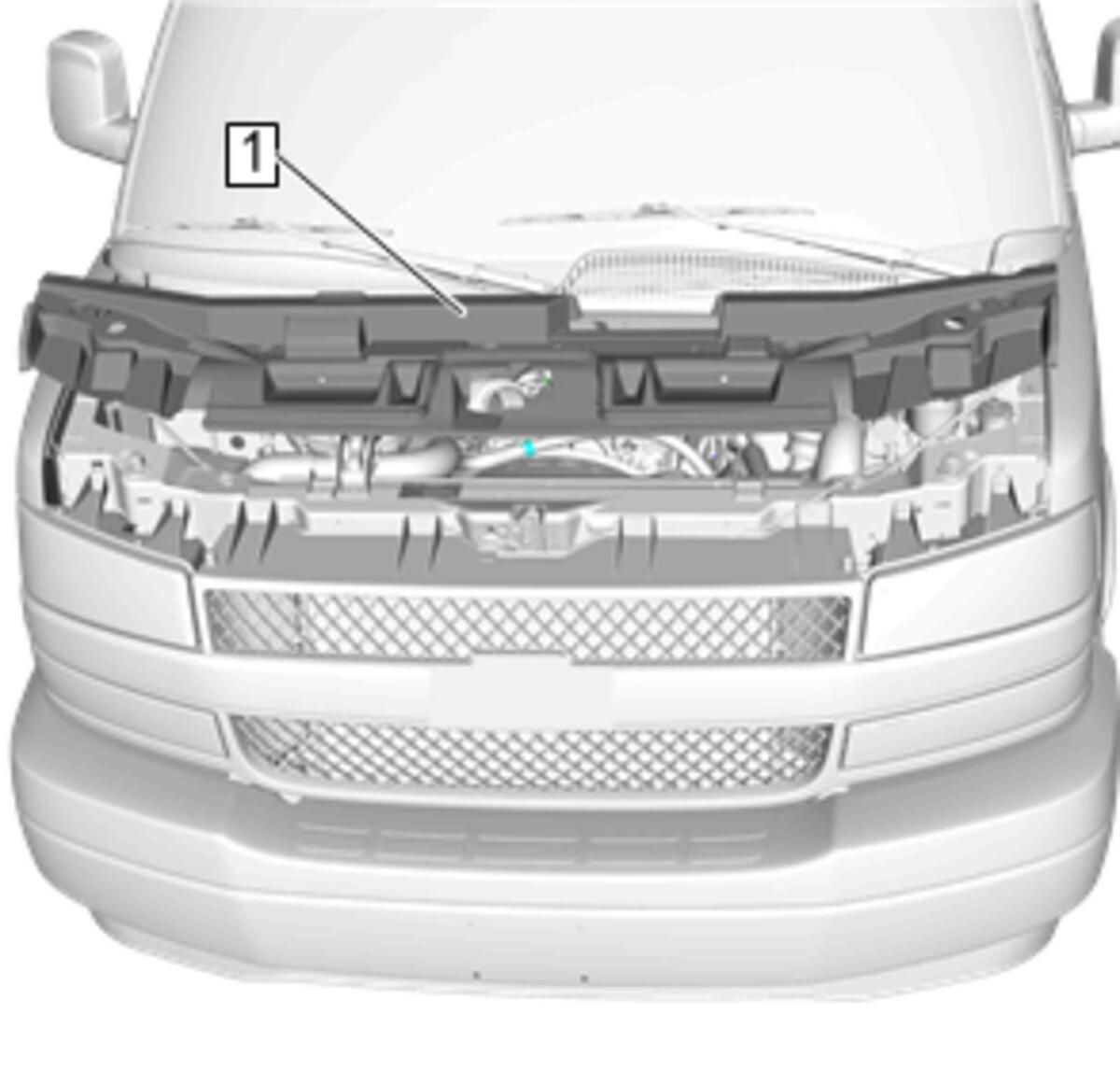

   Radiator Air Upper Baffle (1) - Remove - Radiator Air Upper Baffle Replacement (LWN) , Radiator Air Upper Baffle Replacement (LV1) , Radiator Air Upper Baffle Replacement (L96, LC8) .

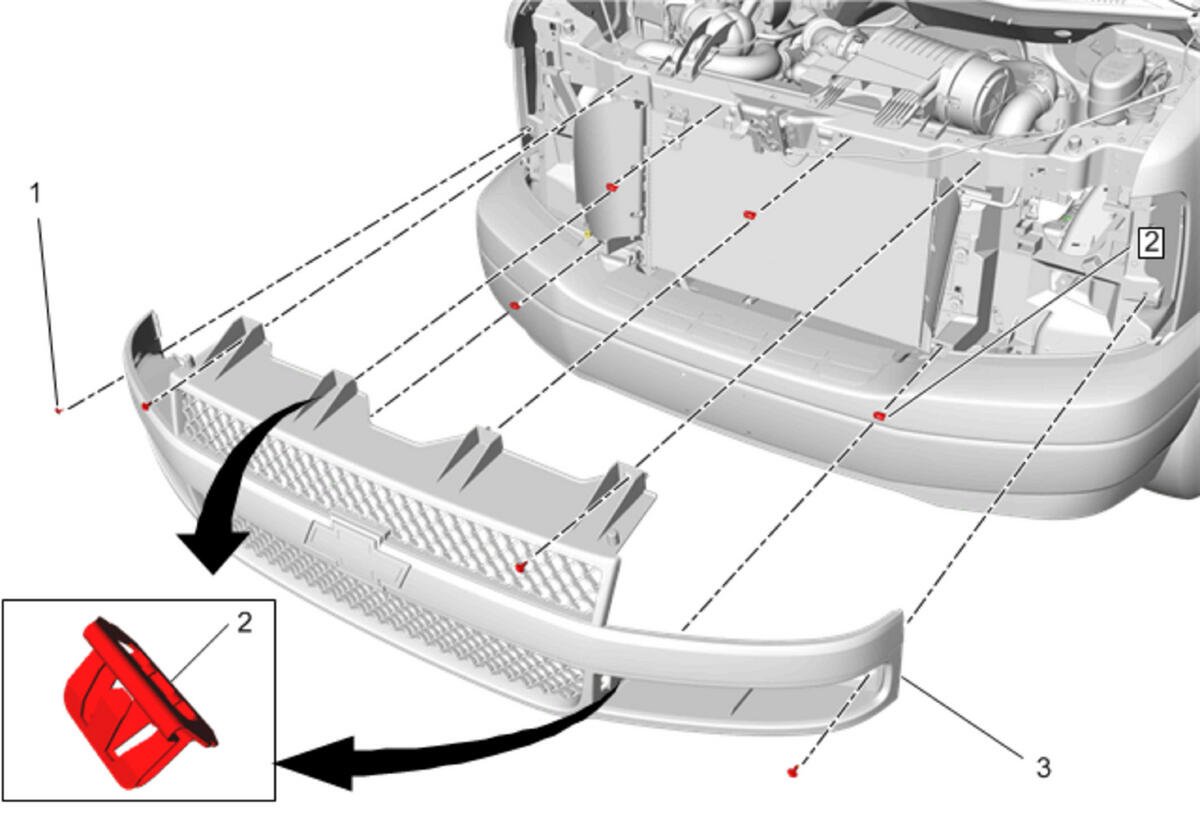

2. Courtesy of GENERAL MOTORS COMPANY

   Front Grille (3) - Remove - Front Grille Replacement (Chevrolet) ,Front Grille Replacement (GMC) .

3. Courtesy of GENERAL MOTORS COMPANY

   Front Bumper Impact Bar Bracket (2) - Remove - Front Bumper Impact Bar Bracket Replacement (To Frame) ,Front Bumper Impact Bar Bracket Replacement (To Impact Bar) .

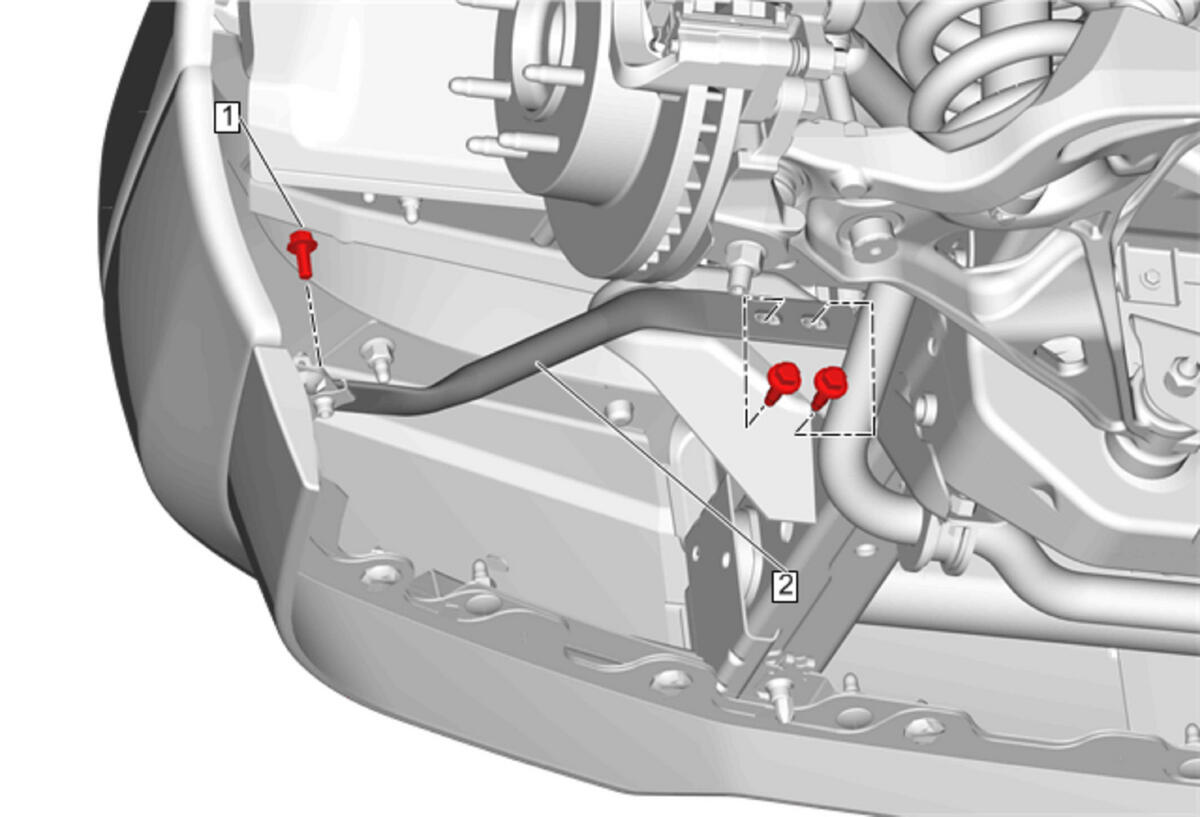

4. Courtesy of GENERAL MOTORS COMPANY

   Front Bumper Impact Bar Bolt(1) - Remove [2x]

5. Front Bumper Impact Bar (2) - Remove
