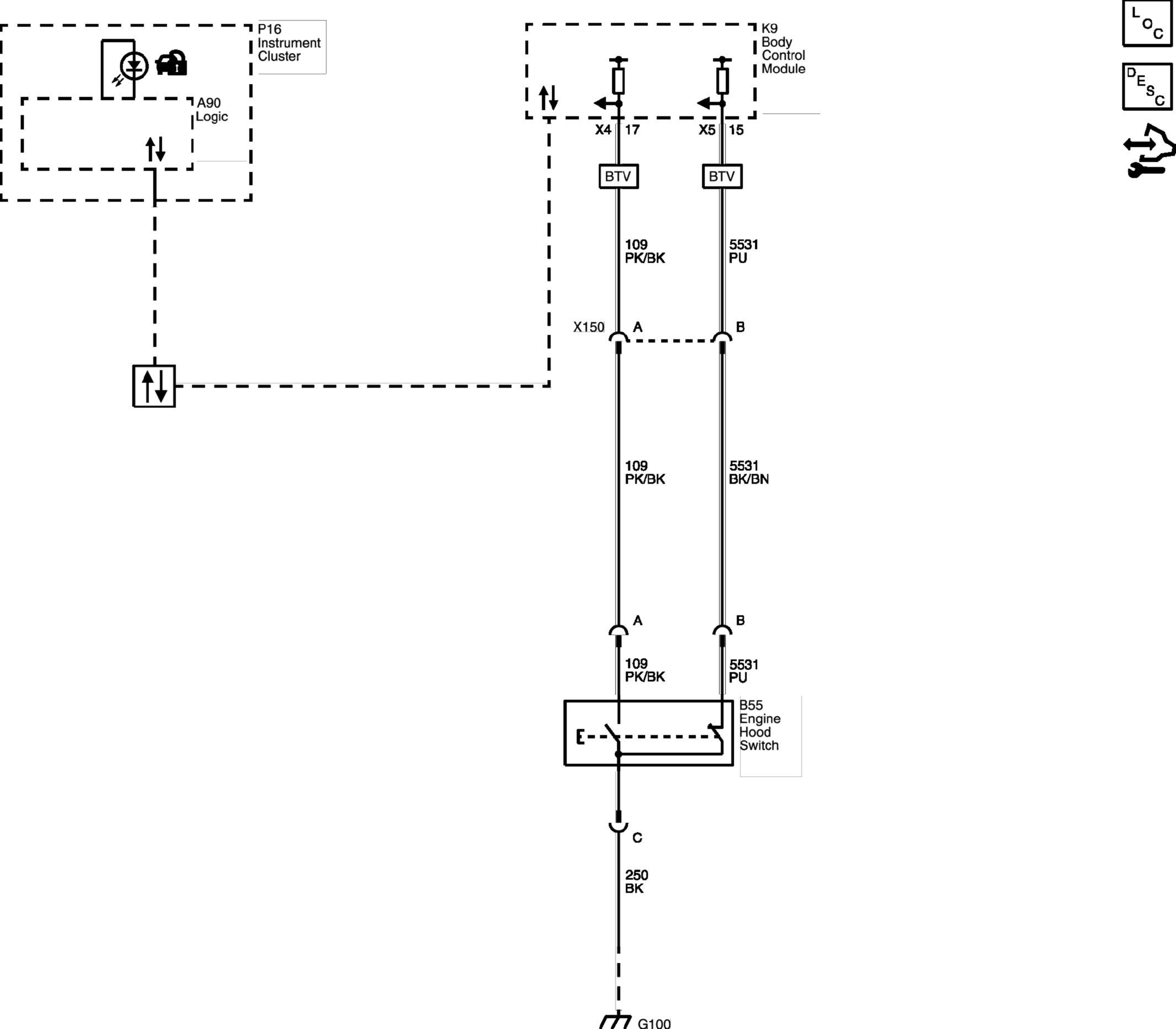

Home >> Chevrolet >> 2020 >> Express 2500 LS, 6.0L Eng VIN G >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Bolted Exterior Body Panels And Closures >> Schematic and Routing Diagrams >> Hood Latch Schematics >> Hood Latch
