Removal Procedure
- Drain the cooling system. Cooling System Draining and Filling (Static Fill LWN)Cooling System Draining and Filling (GE 47716 LWN)Cooling System Draining and Filling (Static LC8, LV1, L96)Cooling System Draining and Filling (GE47716 LC8, LV1, L96)
- Evacuate the refrigerant system. Refrigerant Recovery and Recharging
- Remove both front tire and wheel assembles. Tire and Wheel Removal and Installation (Without Dual Rear Wheels)Tire and Wheel Removal and Installation (With Dual Rear Wheels)
Disconnect the battery negative cable.(1) Battery Negative Cable Disconnection and Connection (Single Battery)Battery Negative Cable Disconnection and Connection (Dual Battery)

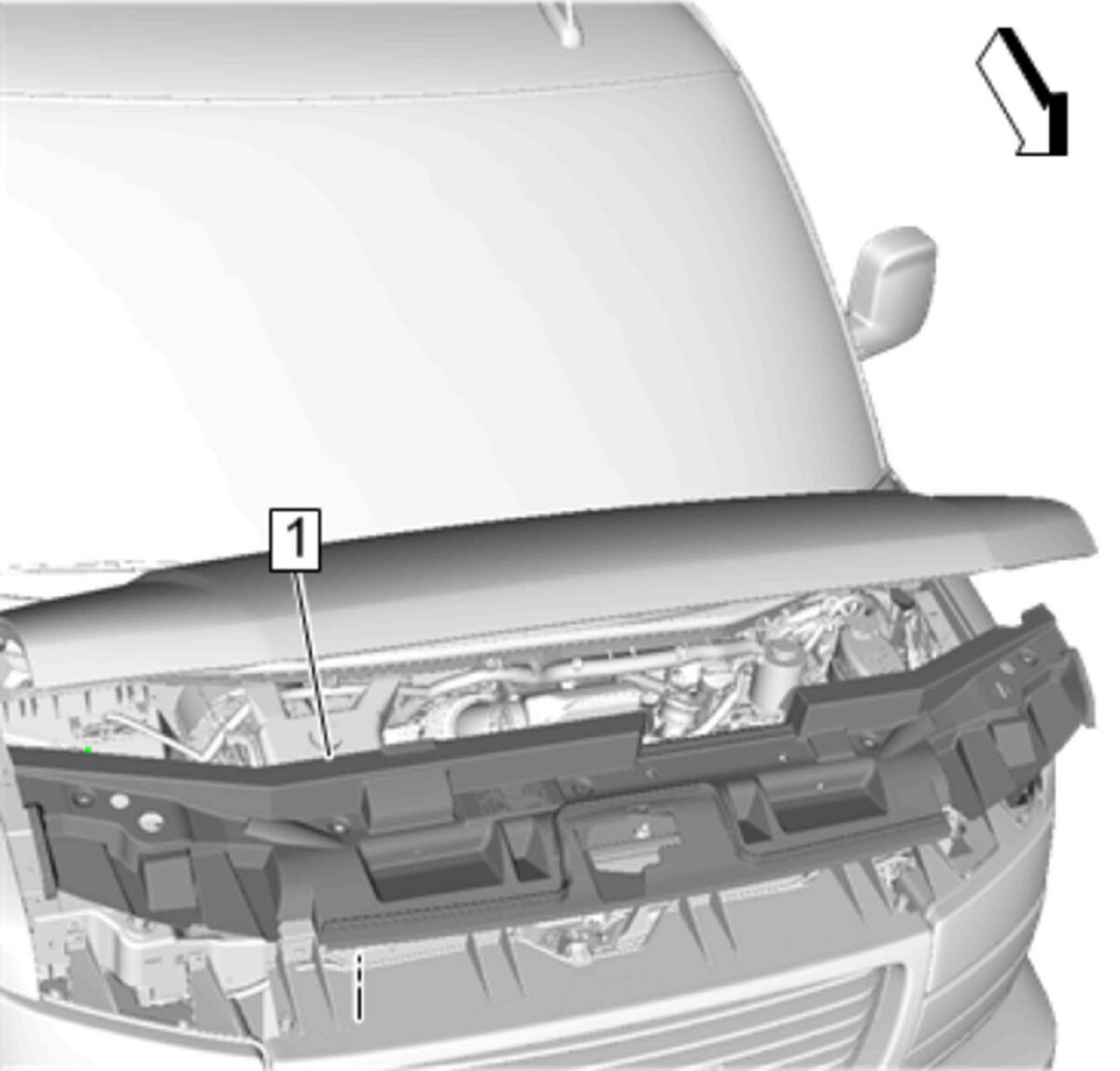

Radiator Air Upper Baffle(1) - Remove - Radiator Air Upper Baffle Replacement (LWN)Radiator Air Upper Baffle Replacement (LV1)Radiator Air Upper Baffle Replacement (L96, LC8)
Front Grille(3) - Remove - Front Grille Replacement (Chevrolet)Front Grille Replacement (GMC)
Front Bumper Impact Bar(2) - Remove - Front Bumper Impact Bar Replacement

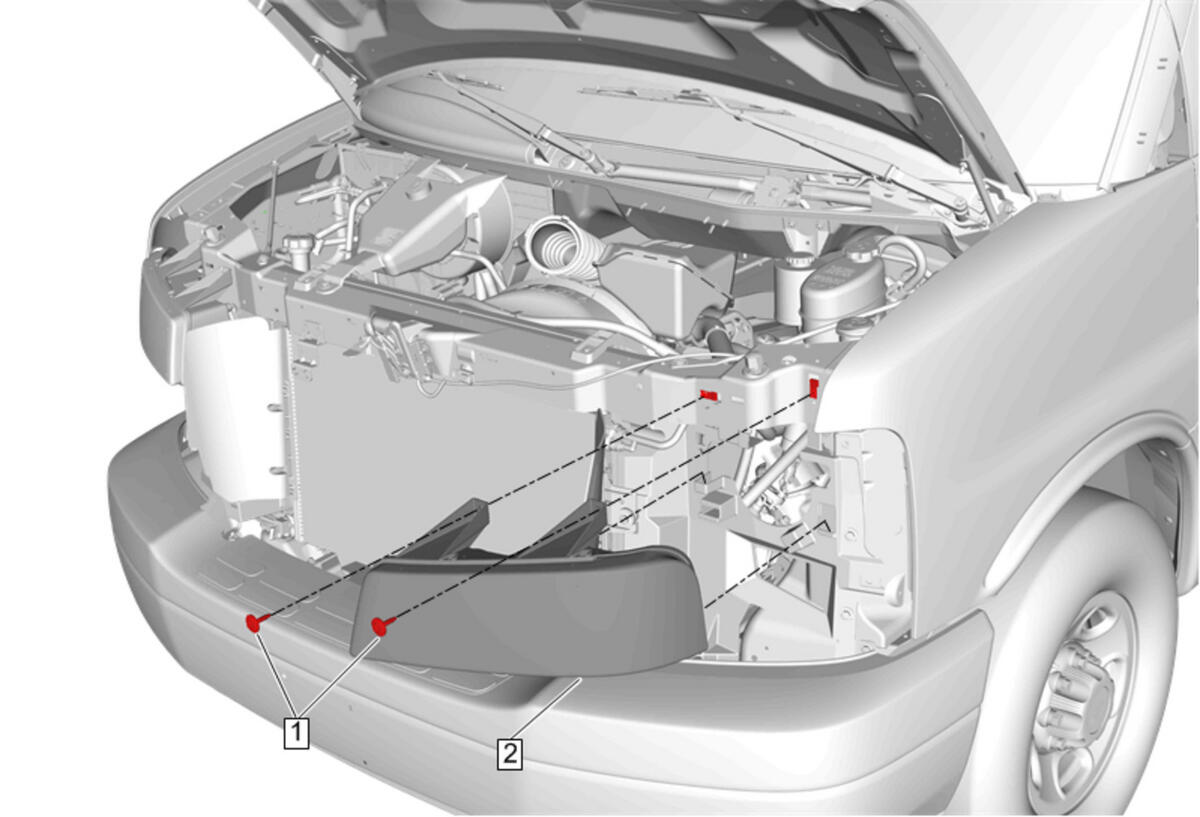

Headlamp(2) - Remove - Front Headlamp Replacement [2x]

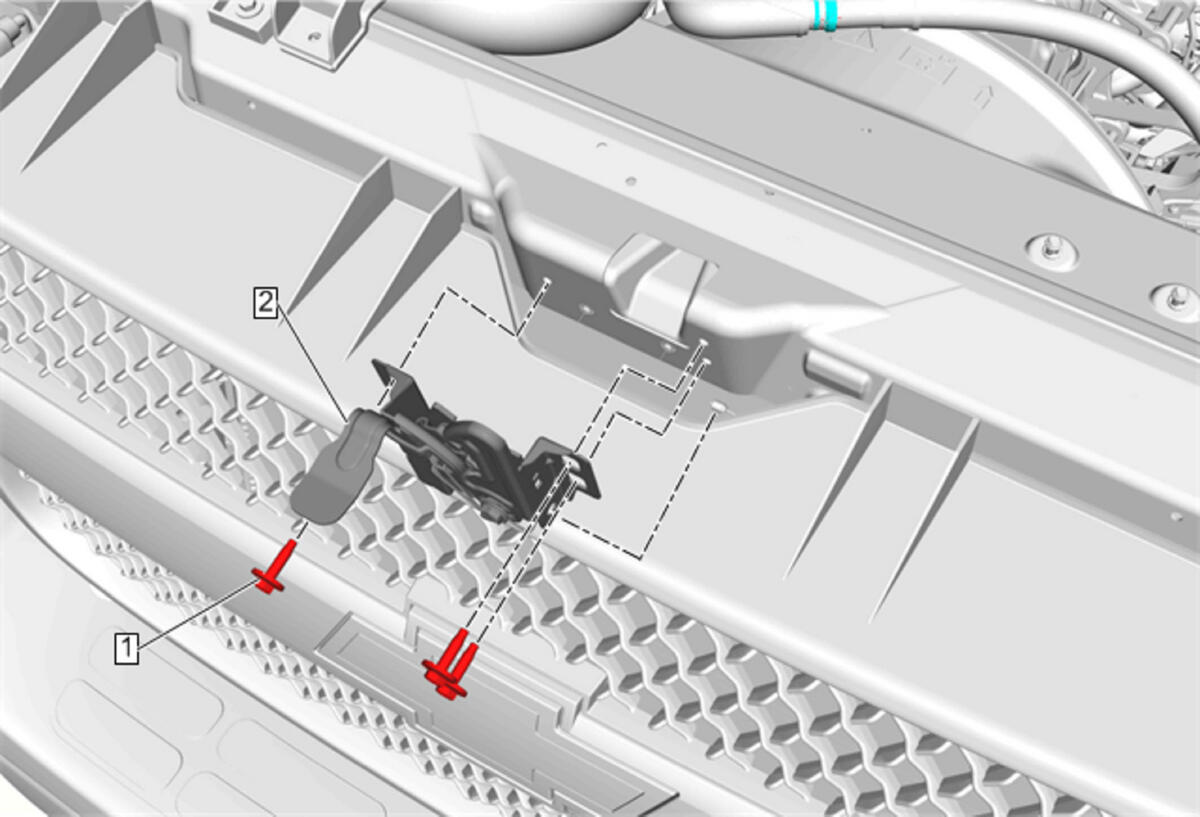

Hood Primary and Secondary Latch(2) - Remove - Hood Primary and Secondary Latch Replacement
- Reposition Hood Primary Latch Release Cable
Air Cleaner Assembly(4) - Remove - Air Cleaner Assembly Replacement

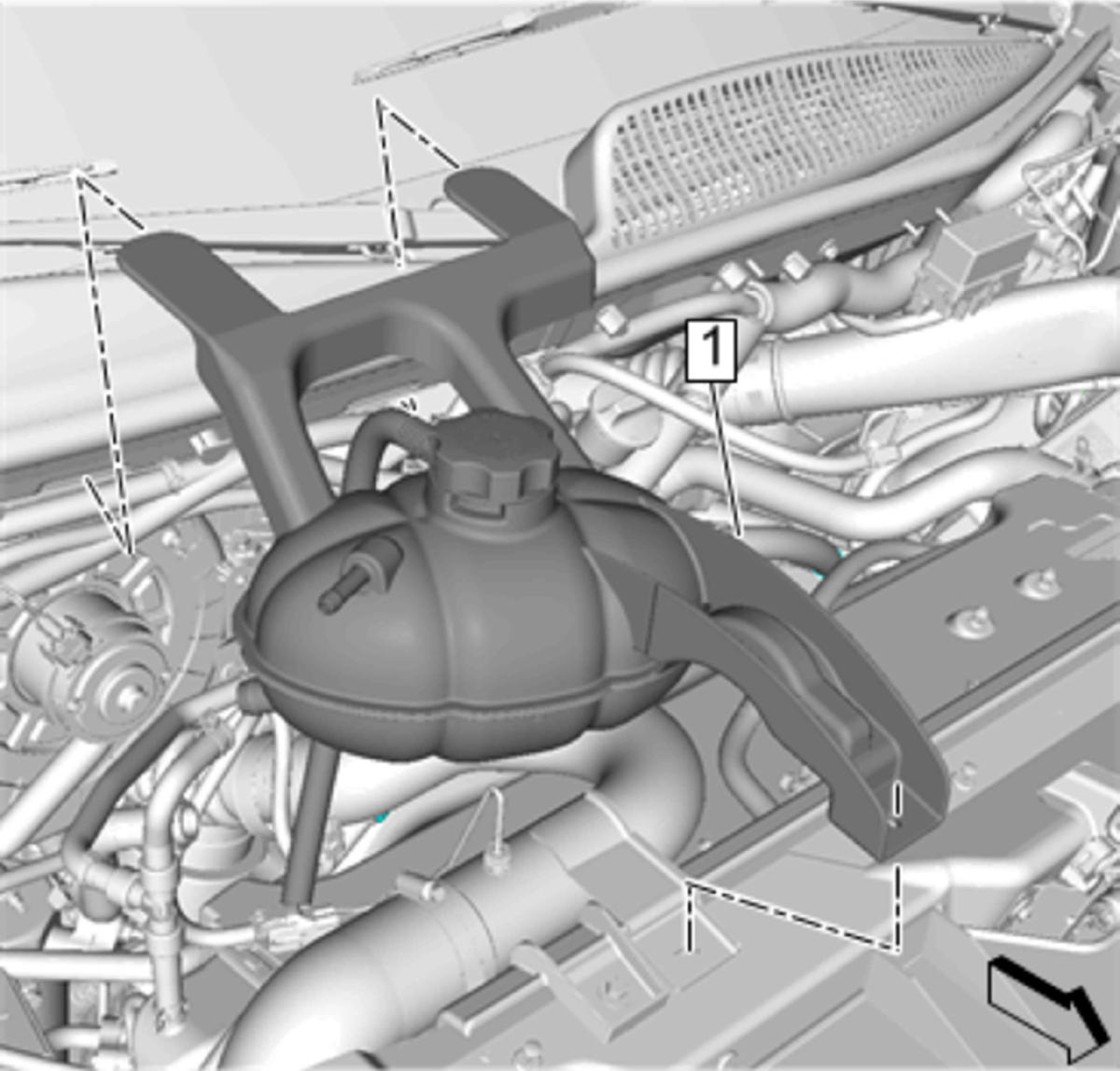

Radiator Surge Tank (1) - Remove - Radiator Surge Tank Replacement (LWN)
Coolant Recovery Reservoir (1) - Remove - Coolant Recovery Reservoir Replacement (LV1)Coolant Recovery Reservoir Replacement (L96, LC8)

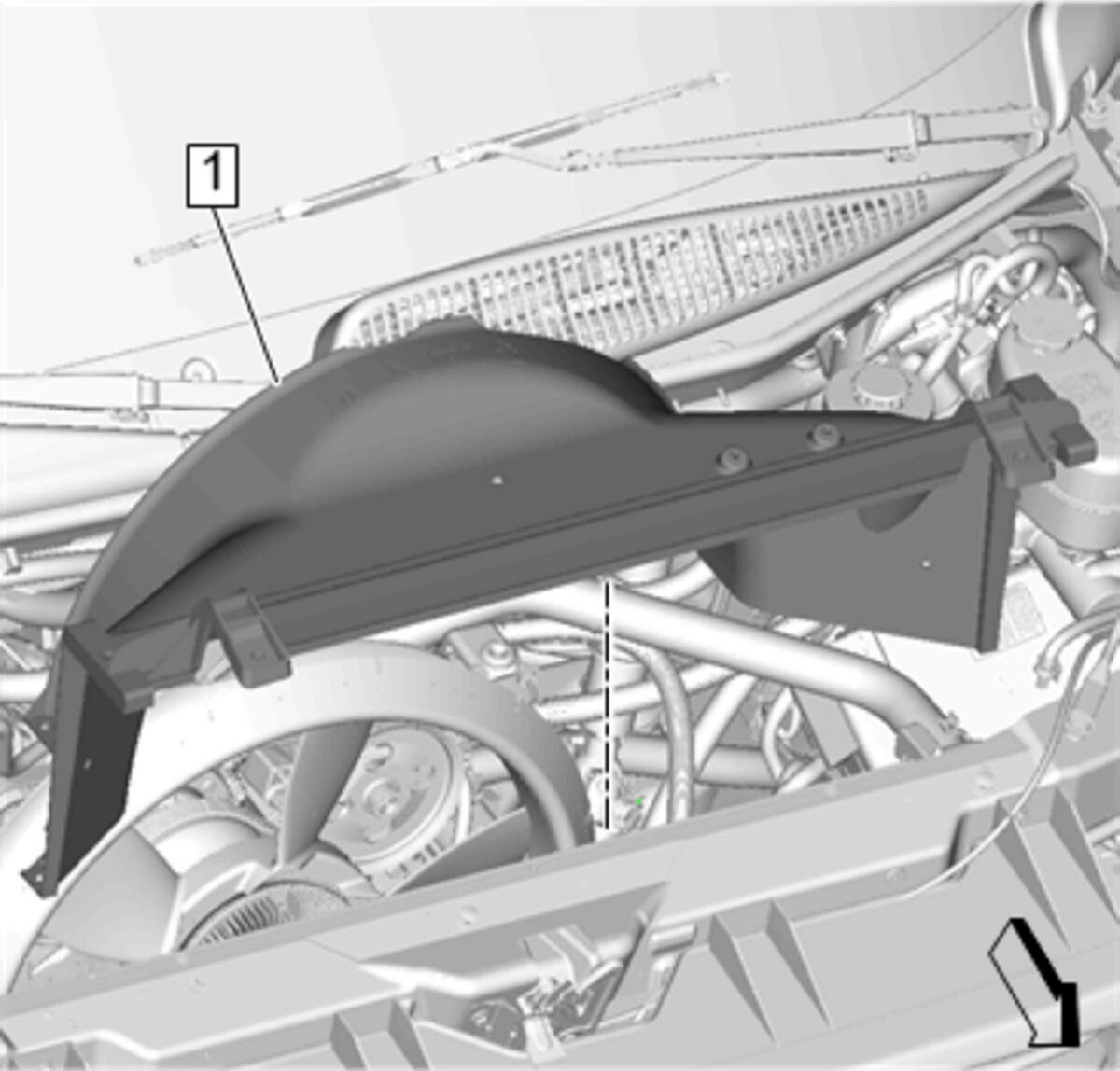

Engine Coolant Fan Upper Shroud (1) - Remove - Engine Coolant Fan Upper Shroud Replacement (LWN)Engine Coolant Fan Upper Shroud Replacement (LV1)Engine Coolant Fan Upper Shroud Replacement (L96, LC8)

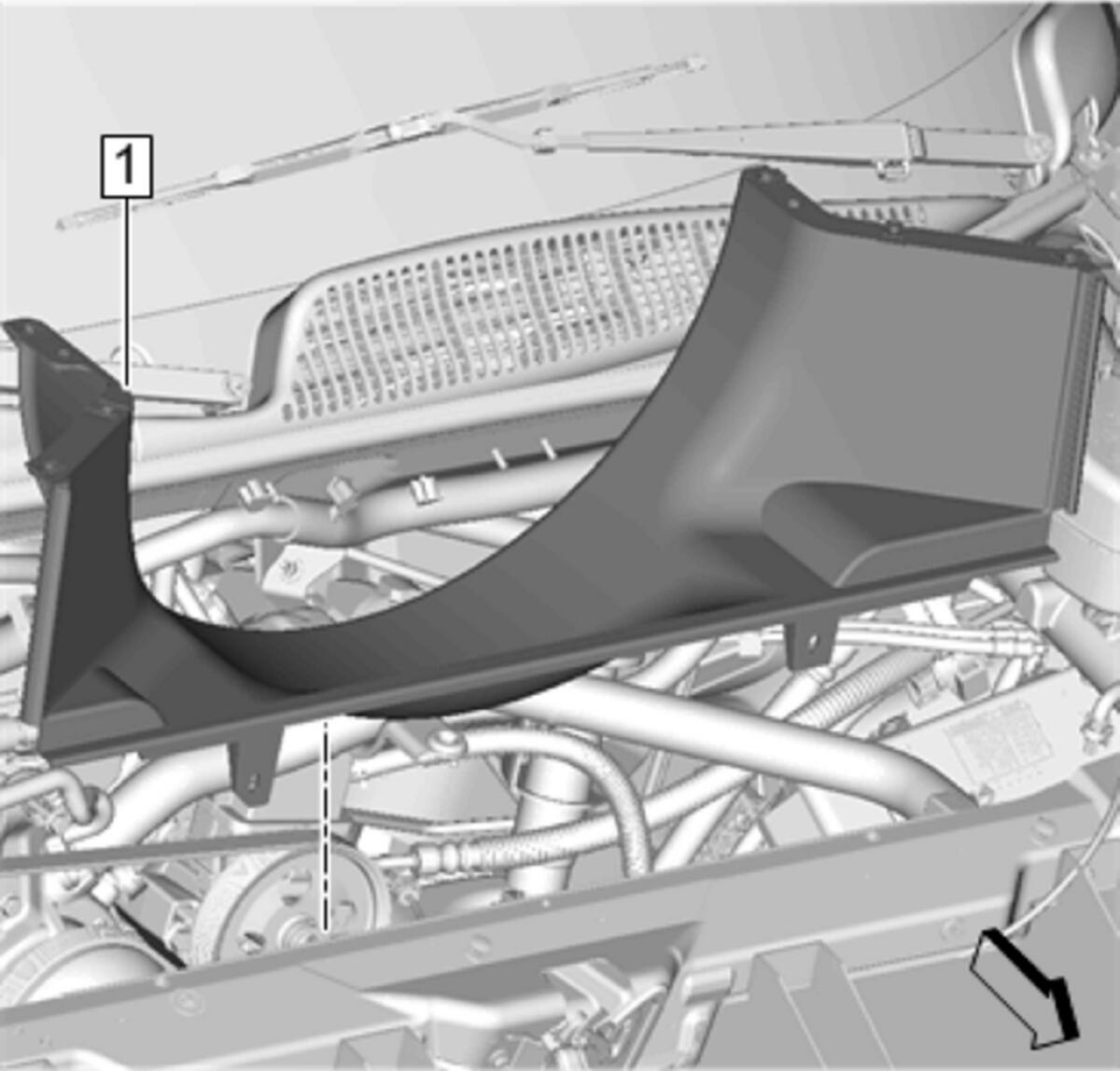

Engine Coolant Fan Lower Shroud(1) - Remove - Engine Coolant Fan Lower Shroud Replacement (LWN)Engine Coolant Fan Lower Shroud Replacement (LV1)Engine Coolant Fan Lower Shroud Replacement (L96, LC8)

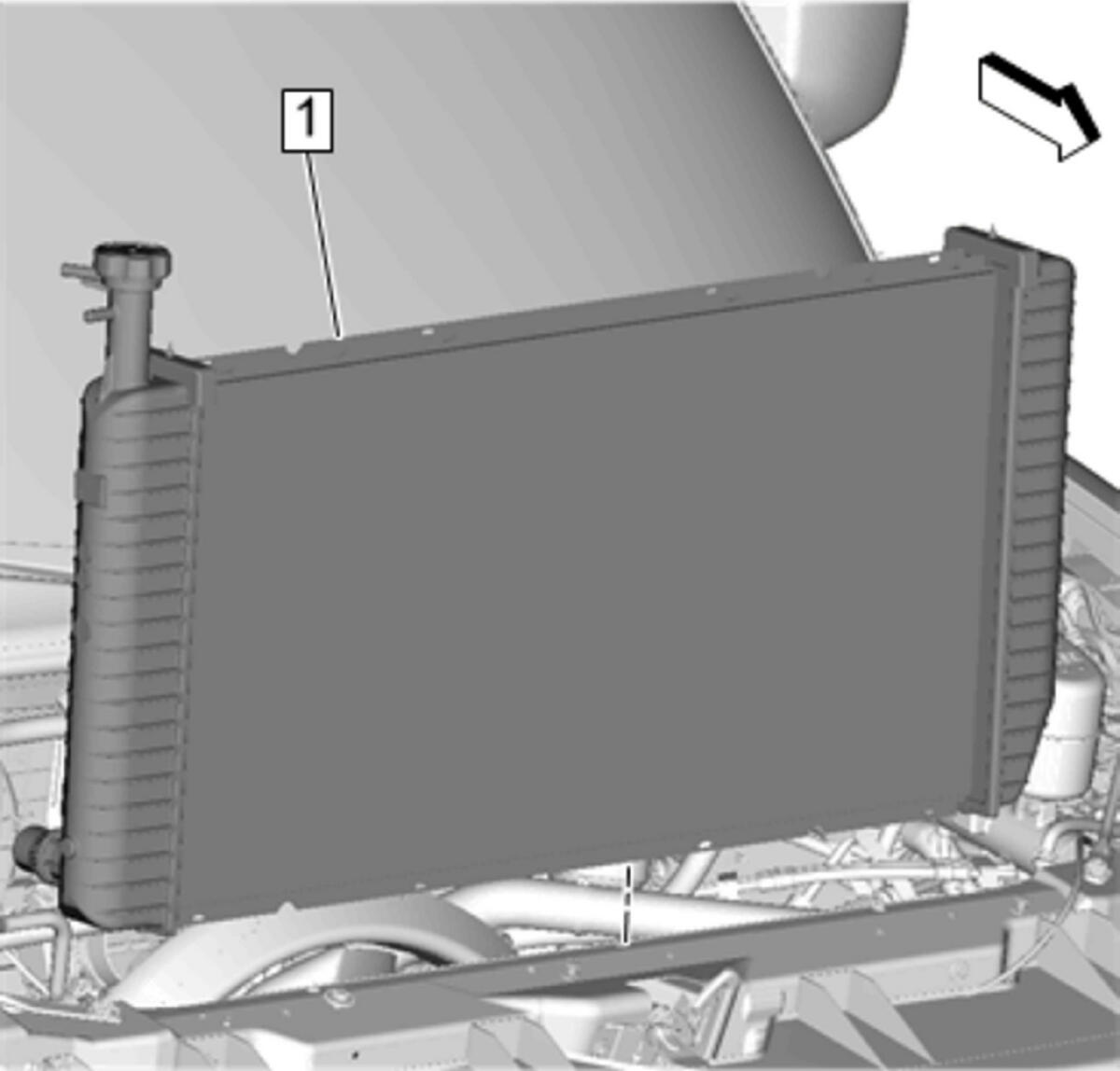

Radiator(1) - Remove - Radiator Replacement (LWN)Radiator Replacement (LV1)Radiator Replacement (L96, LC8)

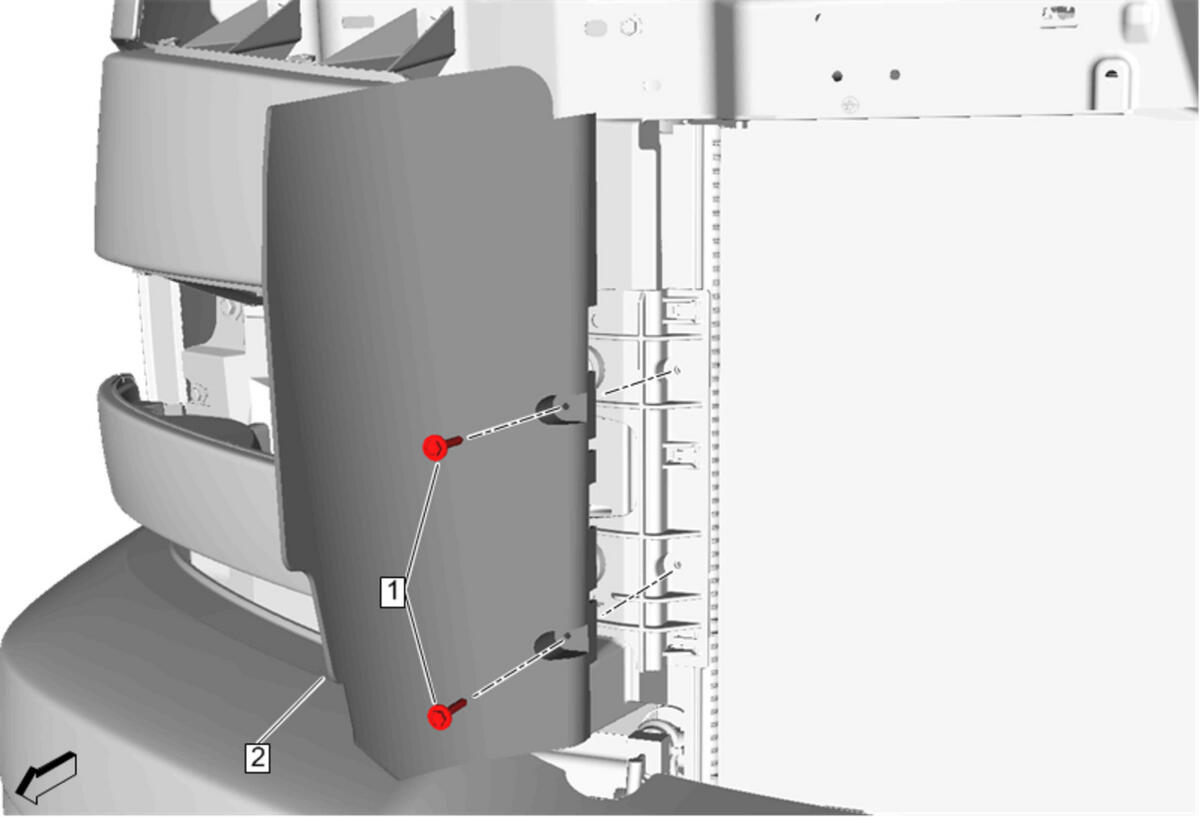

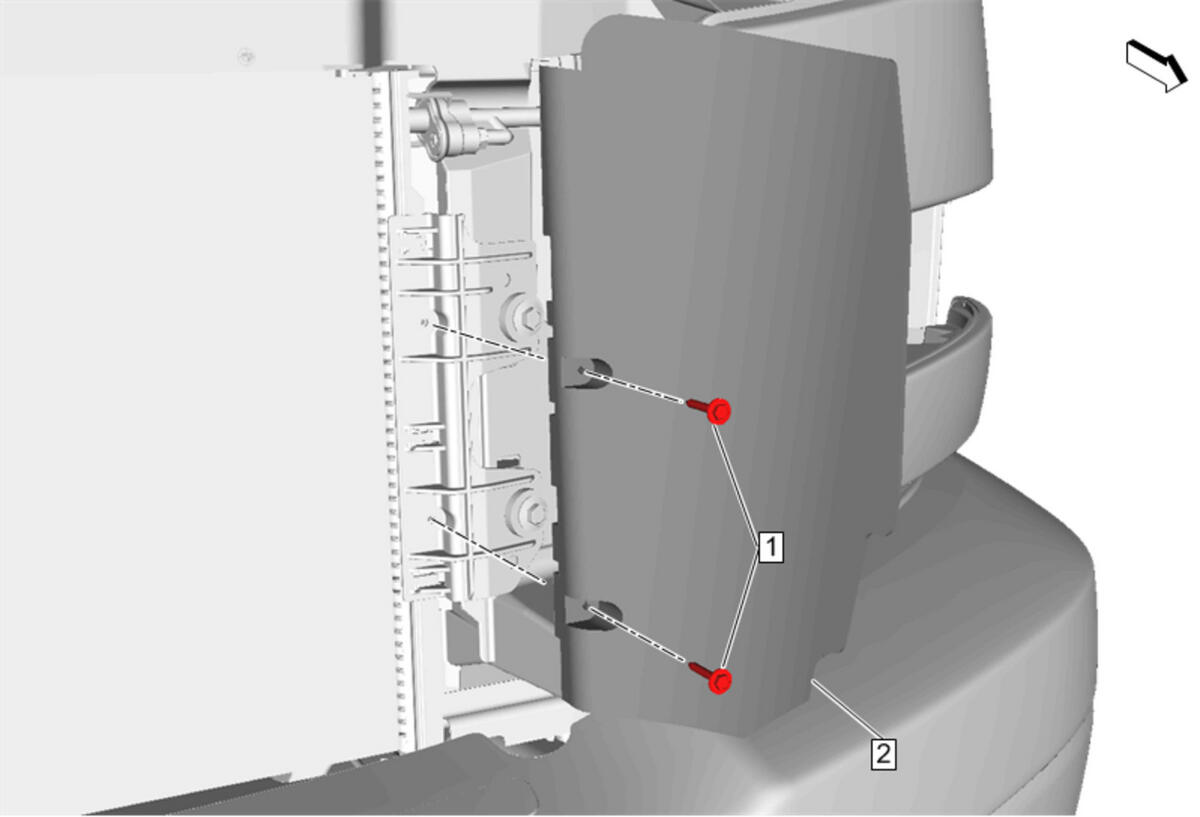

Radiator Air Side Baffle - Left Side(2) - Remove - Radiator Air Side Baffle Replacement - Left Side (LV1, LWN, L96, LC8)
Radiator Air Side Baffle - Right Side(2) - Remove - Radiator Air Side Baffle Replacement - Right Side (LWN, LV1)Radiator Air Side Baffle Replacement - Right Side (L96, LC8)

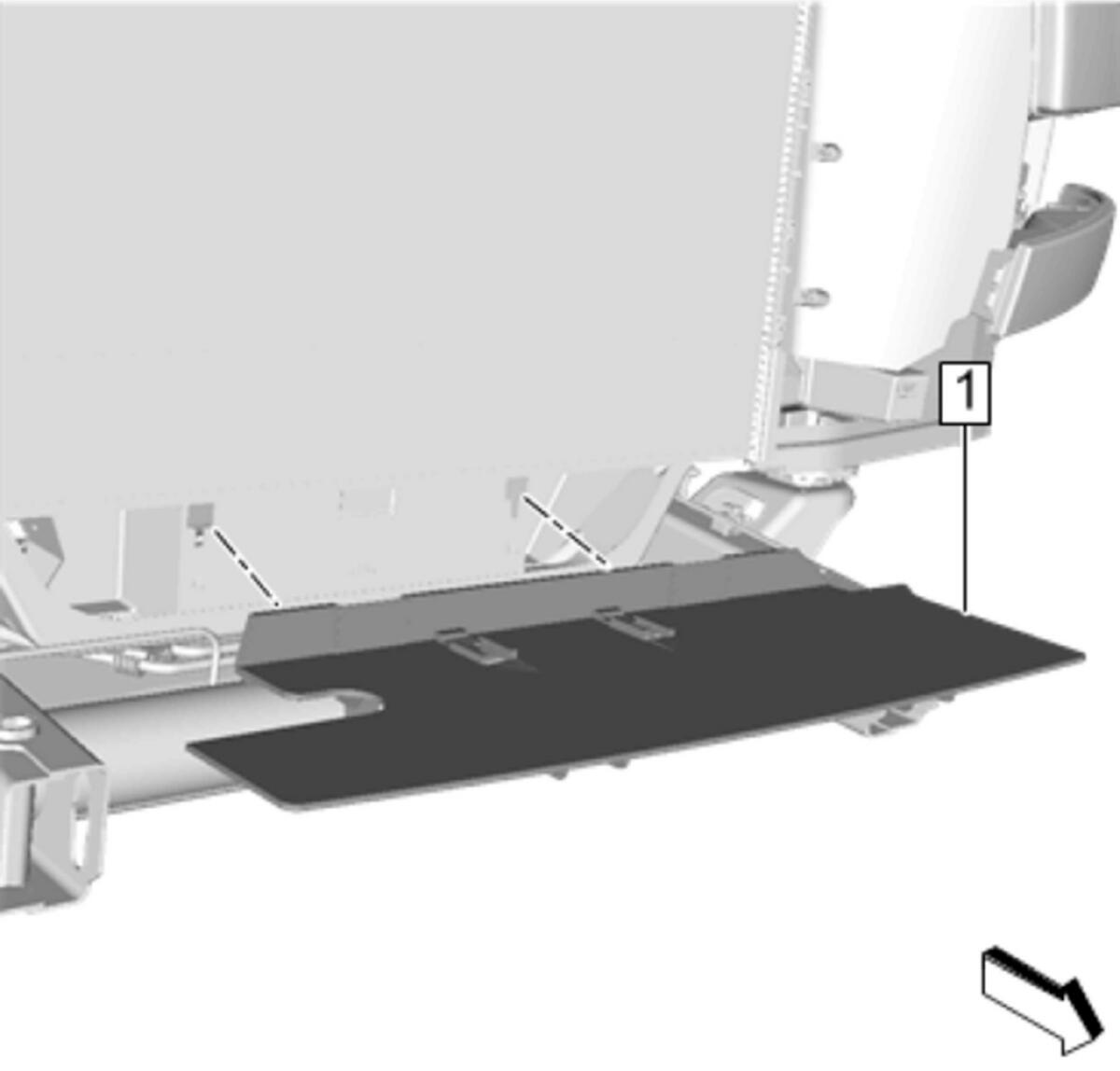

Radiator Air Lower Baffle(1) - Remove - Radiator Air Lower Baffle Replacement (L96, LC8)Radiator Air Lower Baffle Replacement (LWN)

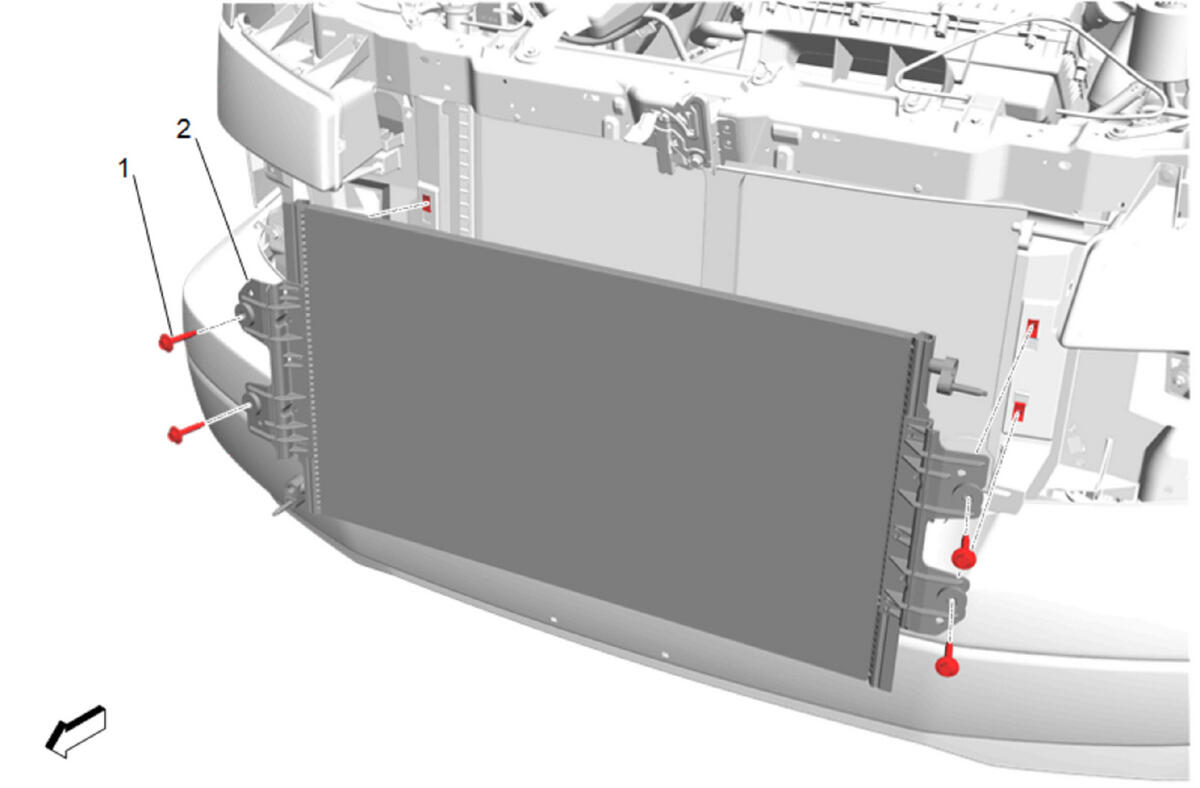

Air Conditioning Condenser(2) - Remove - Air Conditioning Condenser Replacement (LV1)Air Conditioning Condenser Replacement (L96, LC8, LWN)

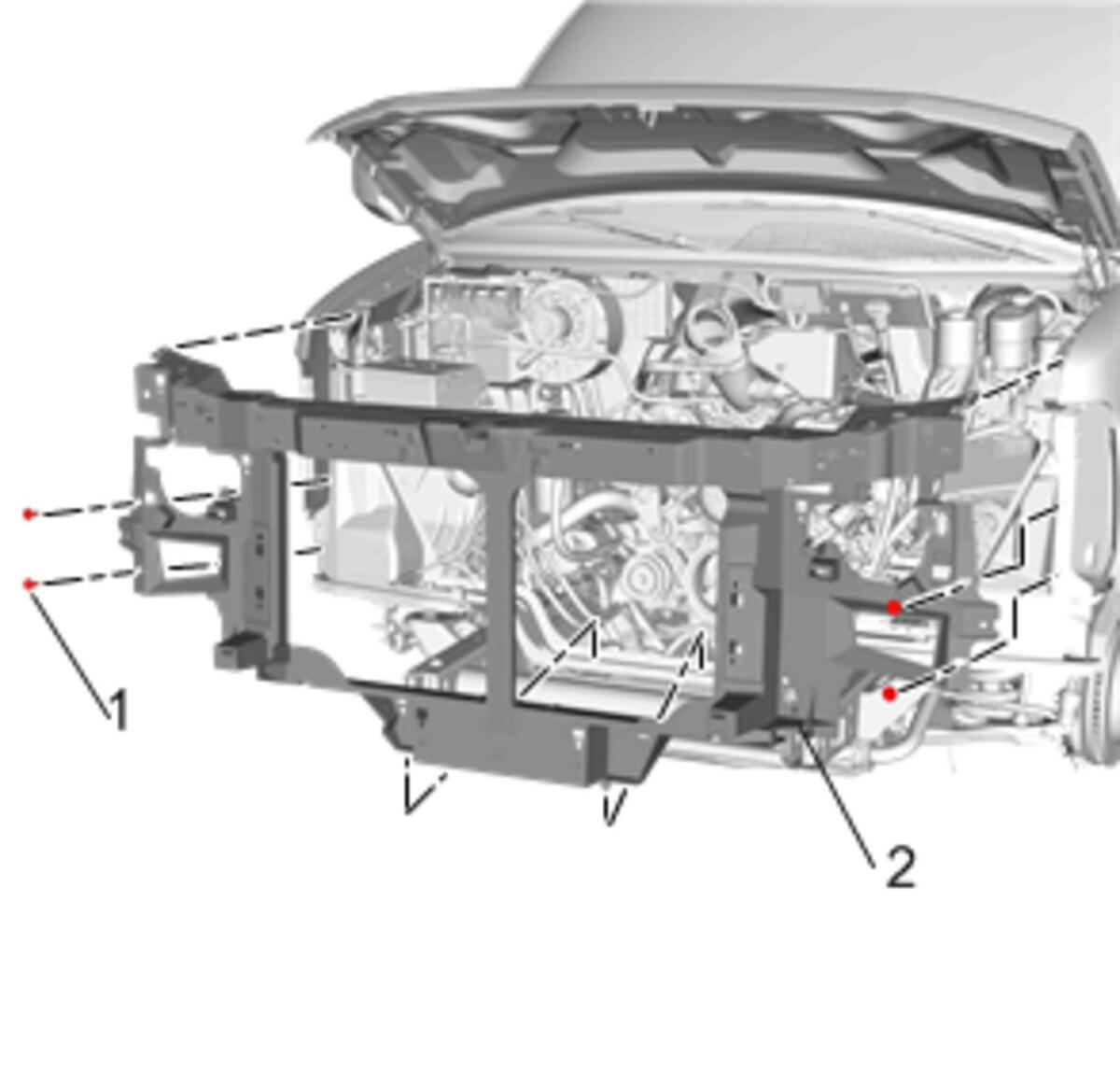

Radiator Lower Support Bolt (1) - Remove[8x]
- Radiator Lower Support (2) - Remove
- Reposition the wiring harness.
- Transfer components as necessary.
