Intermediate Side Door Weatherstrip Replacement

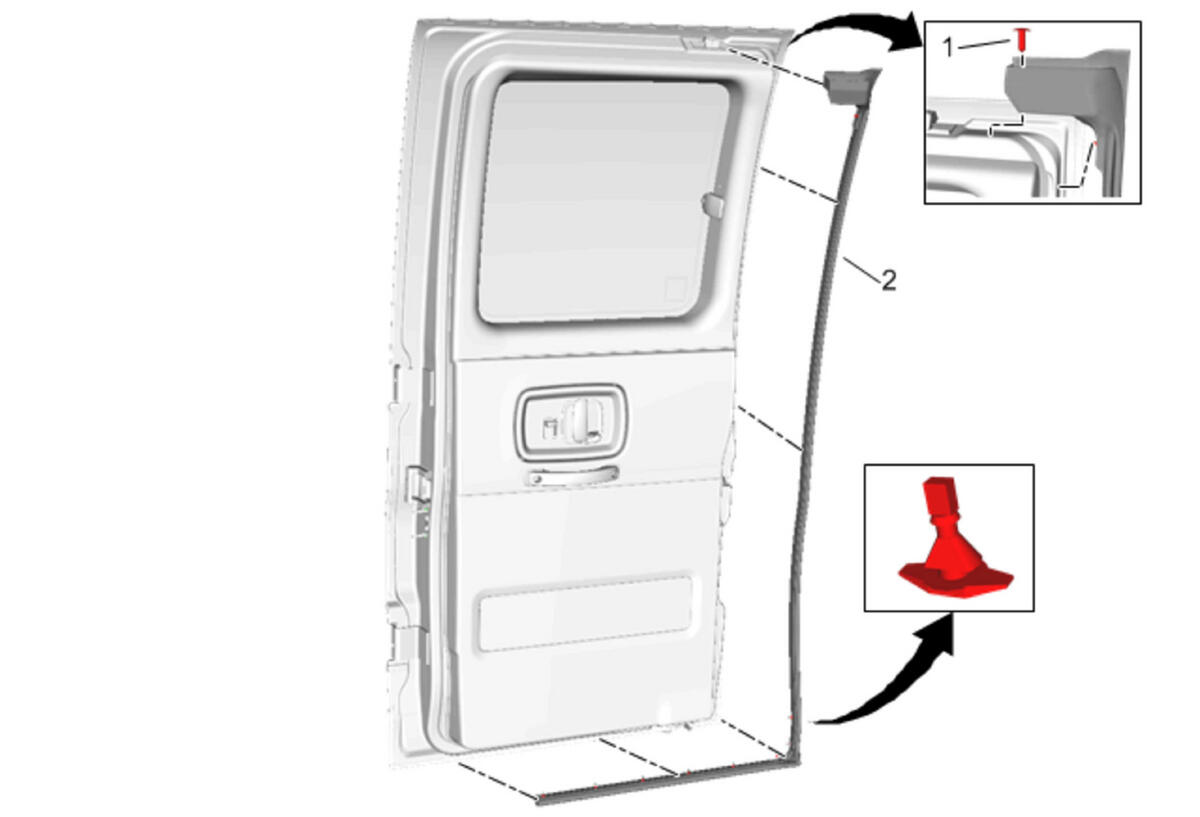

GM4854981Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Intermediate Side Door Weather Strip Retainer
2 Intermediate Side Door Weather Strip
Procedure
Using the appropriate tool, remove the weather strip retainers from around the door.
