Installation Procedure

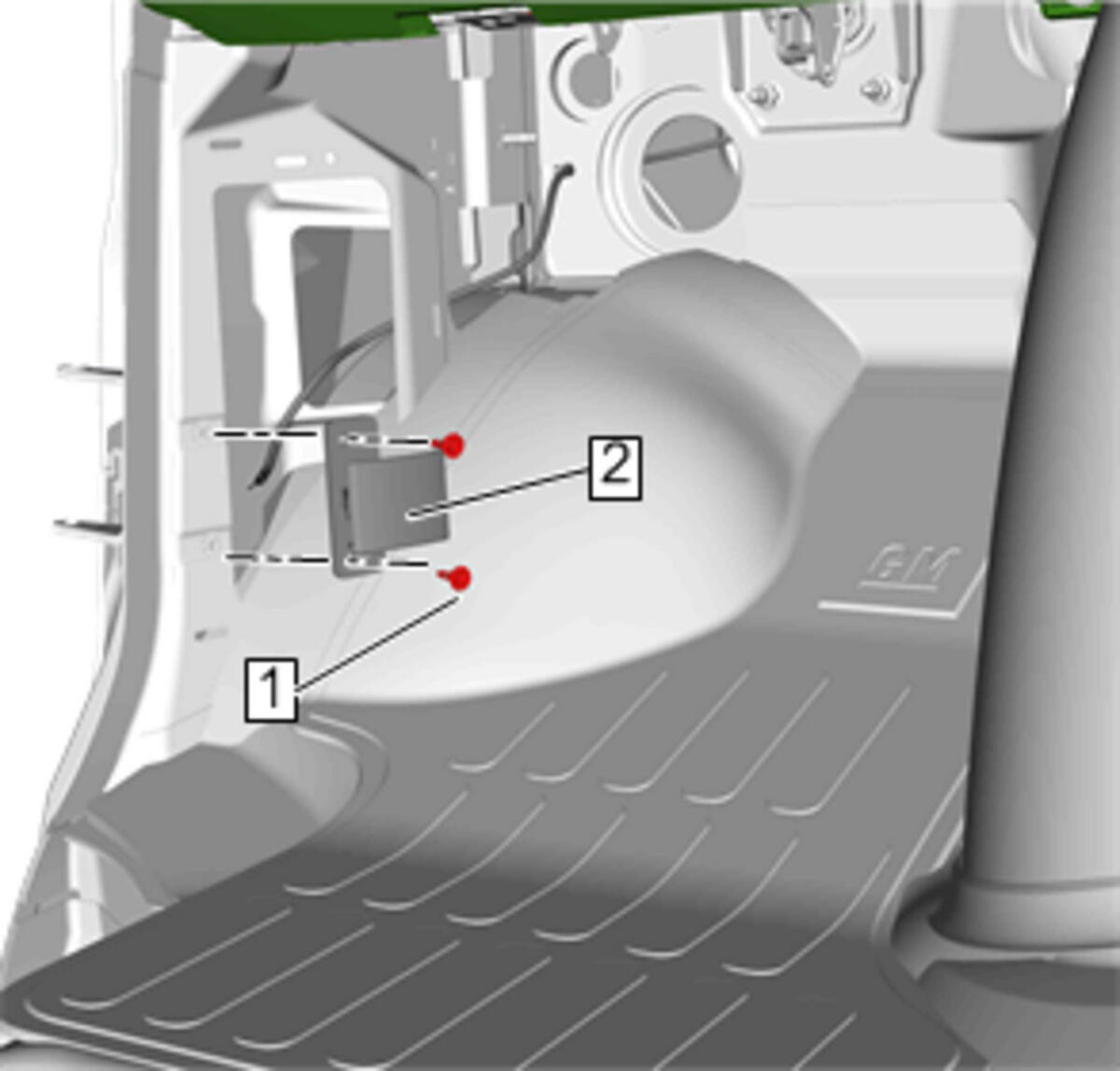

  1. GM4841452Courtesy of GENERAL MOTORS COMPANY

    Install the cable through the dash panel.

  2. Remove the attach mechanics wire from cable.
  3. Install the hood primary latch release cable to the handle (2).
  4. Secure the cable to the remaining clip on the wire harness by the master cylinder.

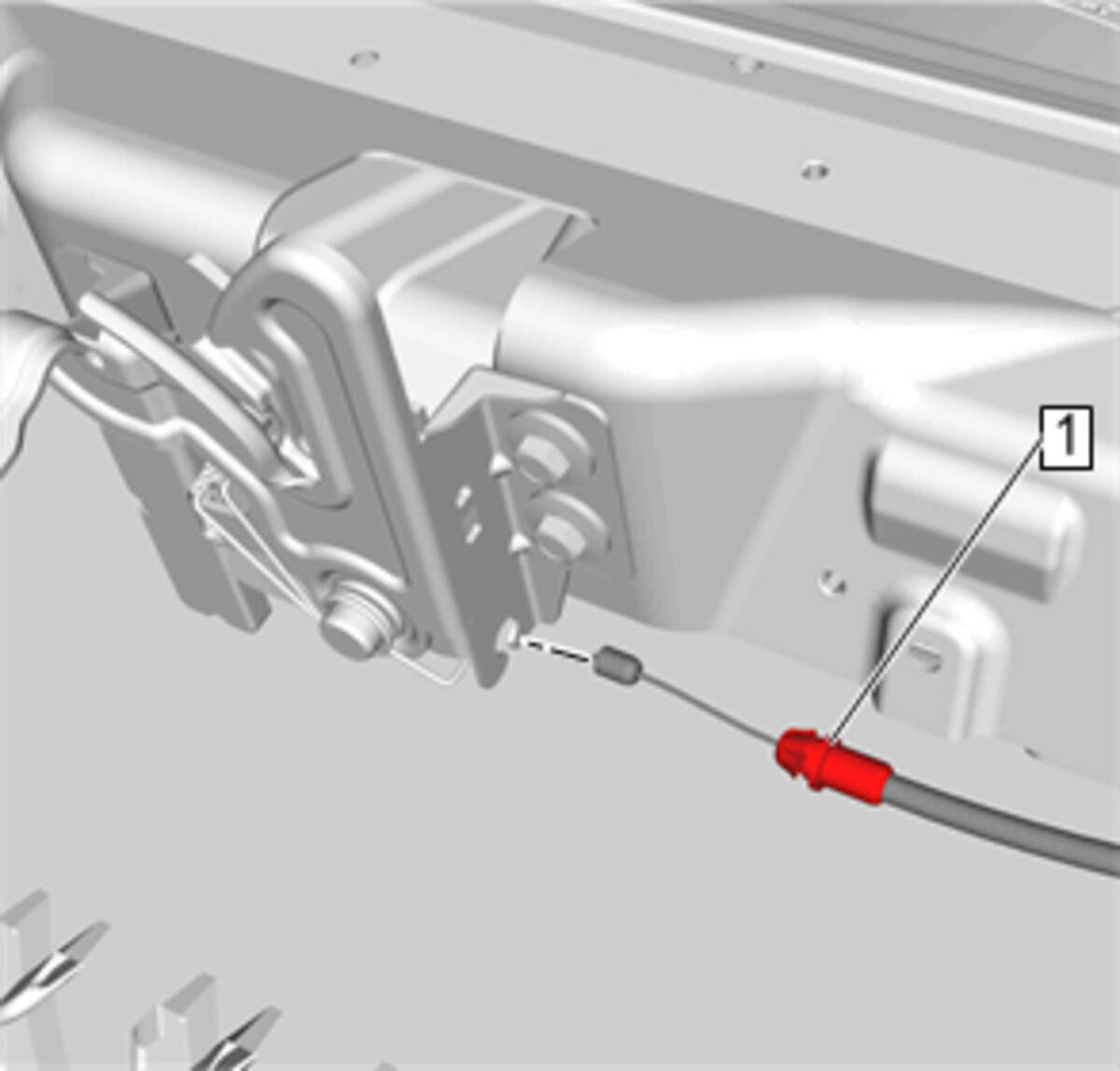

  5. GM4841450Courtesy of GENERAL MOTORS COMPANY

    Connect the hood primary latch release cable to the primary latch.

  6. GM4841449Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle(1) - Install - Radiator Air Upper Baffle Replacement (LWN)Radiator Air Upper Baffle Replacement (LV1)Radiator Air Upper Baffle Replacement (L96, LC8)

  7. Body Hinge Pillar Trim Panel - Install - Body Hinge Pillar Trim Panel Replacement
