Removal Procedure

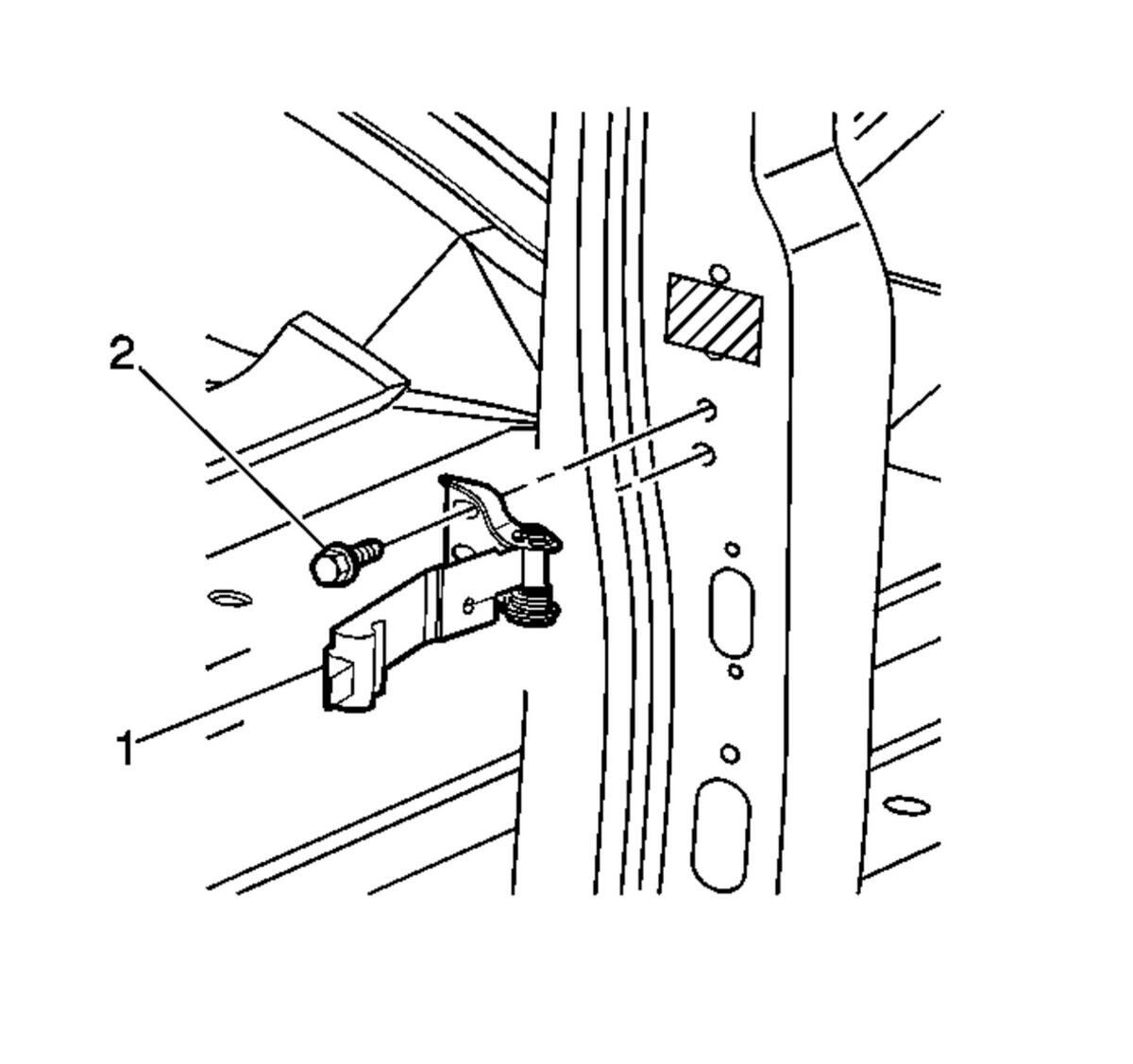

  1. GM333981Courtesy of GENERAL MOTORS COMPANY

    Open the door approximately half way.

  2. Pull the side door check strap (1) toward the inside of the door.
  3. Swing the door open.
  4. Remove the fasteners (2) that retain the side door check strap (1) to the door pillar.
  5. Remove the side door check strap (1) from the door.
