Front Side Door Check Link Replacement

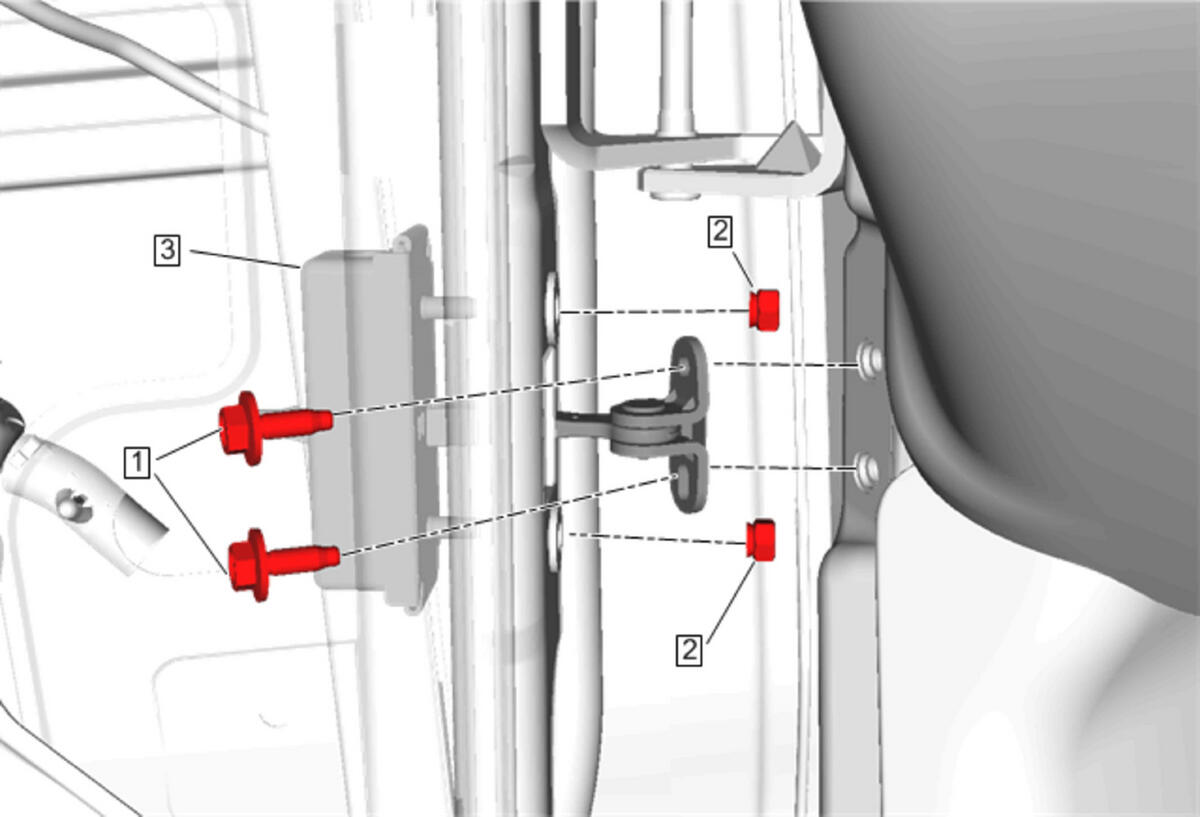

GM4848214Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Place the window in the full up position.
  2. Reposition the front side door water deflector. Front Side Door Water Deflector Replacement
1 Front Side Door Check Link Bolt[2x]
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Front Side Door Check Link Nut [2x]
Tighten
11 N.m (97 lb in)
3 Front Side Door Check Link
