Windshield Multifunction Sensor Mount Bracket Cover Insert Replacement

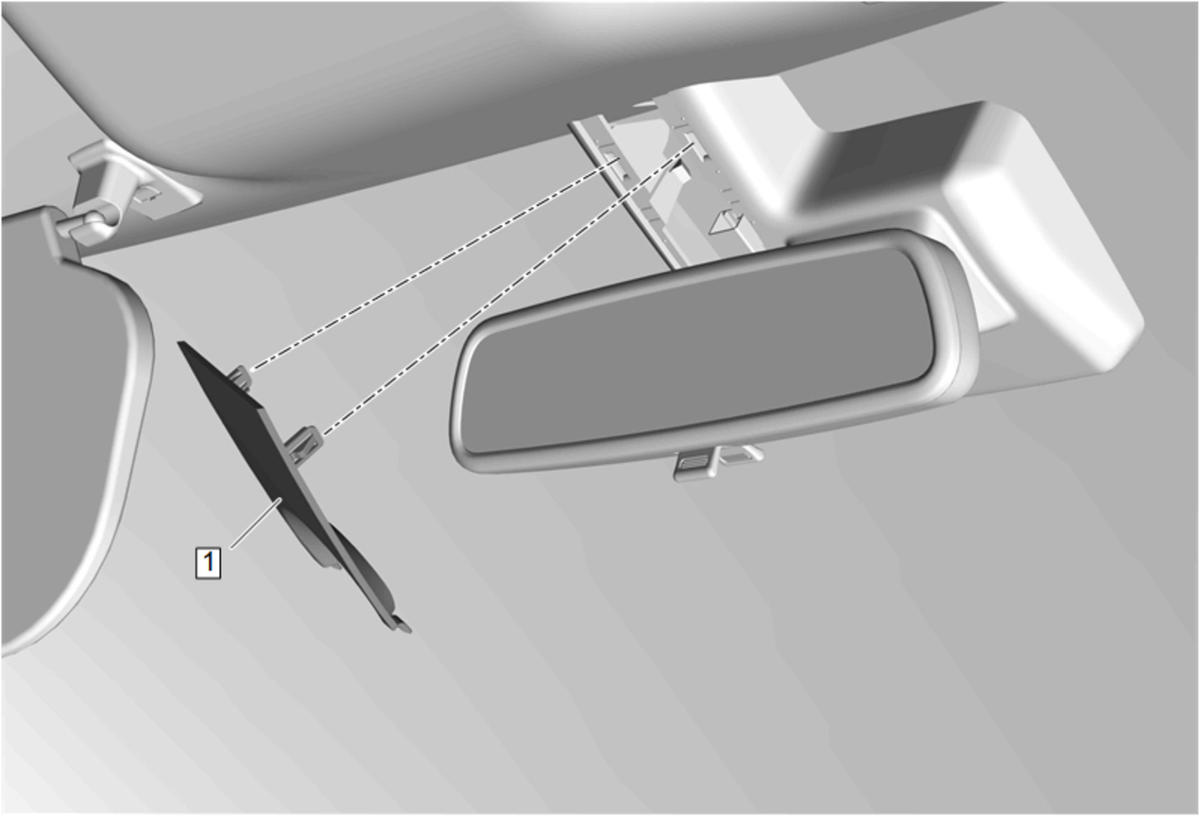

GM5133735Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Windshield Multifunction Sensor Mount Bracket Cover Insert
Procedure
Using a plastic trim tool, carefully pry downward on the windshield multifunction sensor mount bracket cover insert to release from windshield multifunction sensor mount bracket cover.
