Parking and Turn Signal Lamp Replacement

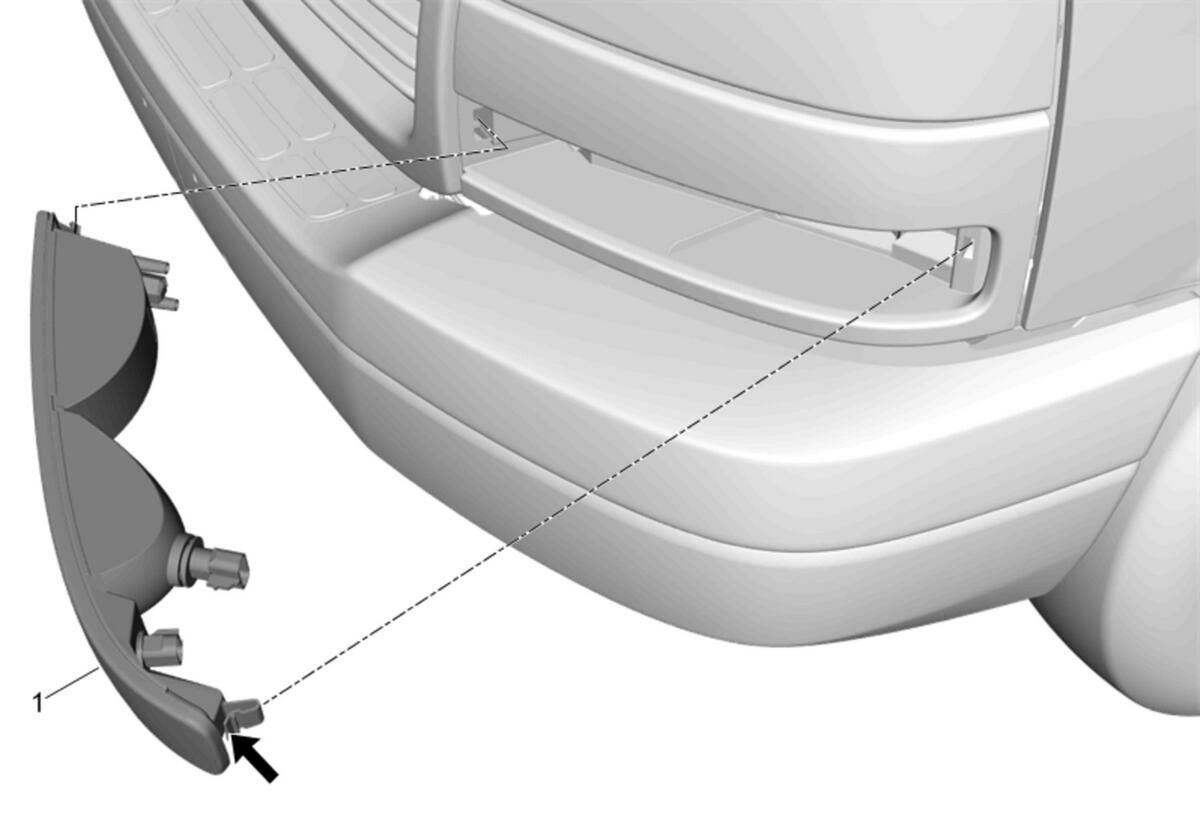

GM4697480Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Parking and Turn Signal Lamp

Procedure

  1. Insert a plastic trim tool between the outer edge of the lamp and the grille to release the retainer tab.
  2. Disconnect all electrical connectors.
  3. Transfer components as necessary.
