Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

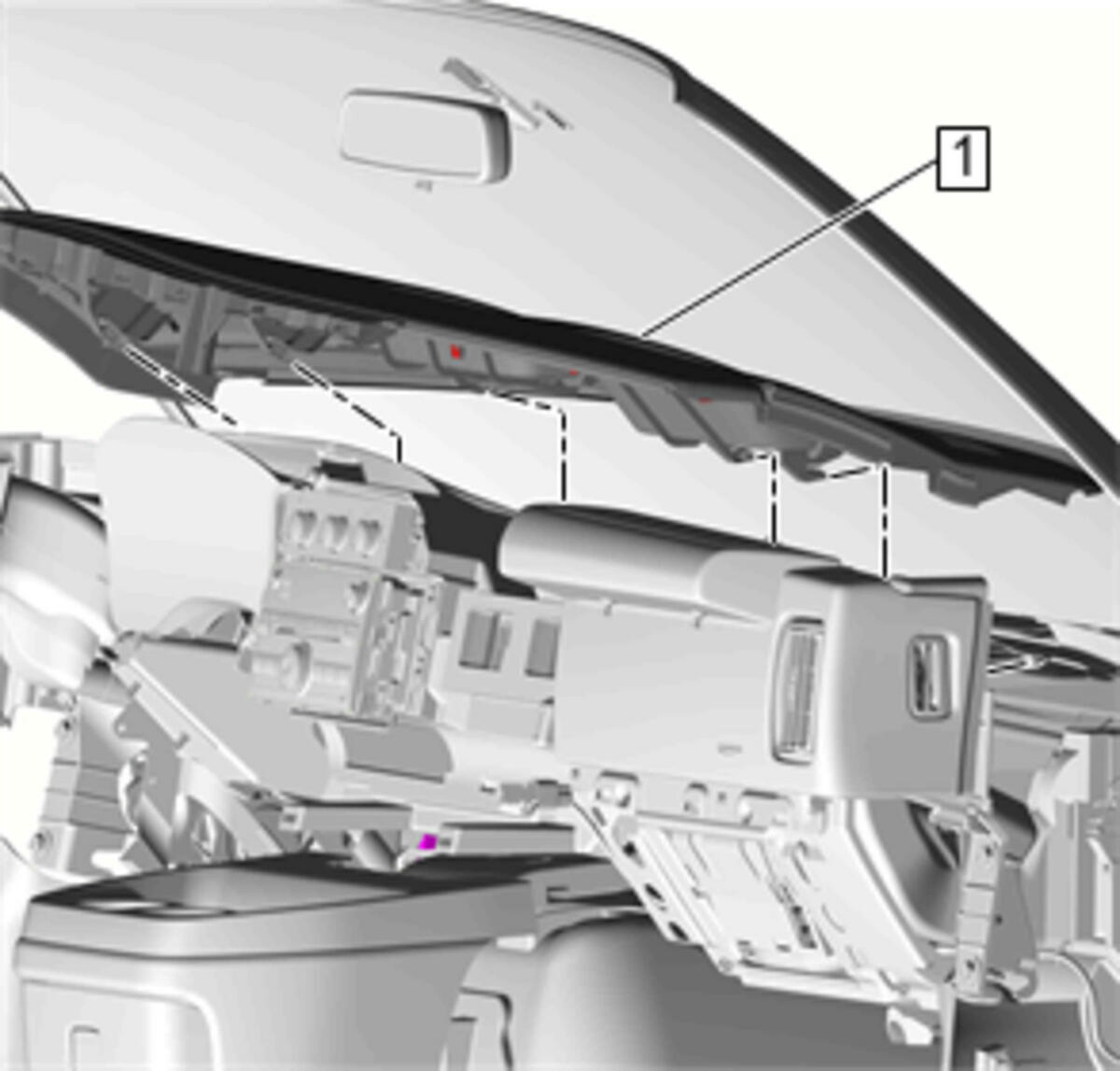

Insert the instrument panel upper trim panel (1) tabs into the slots on the instrument panel carrier.
Courtesy of GENERAL MOTORS COMPANY

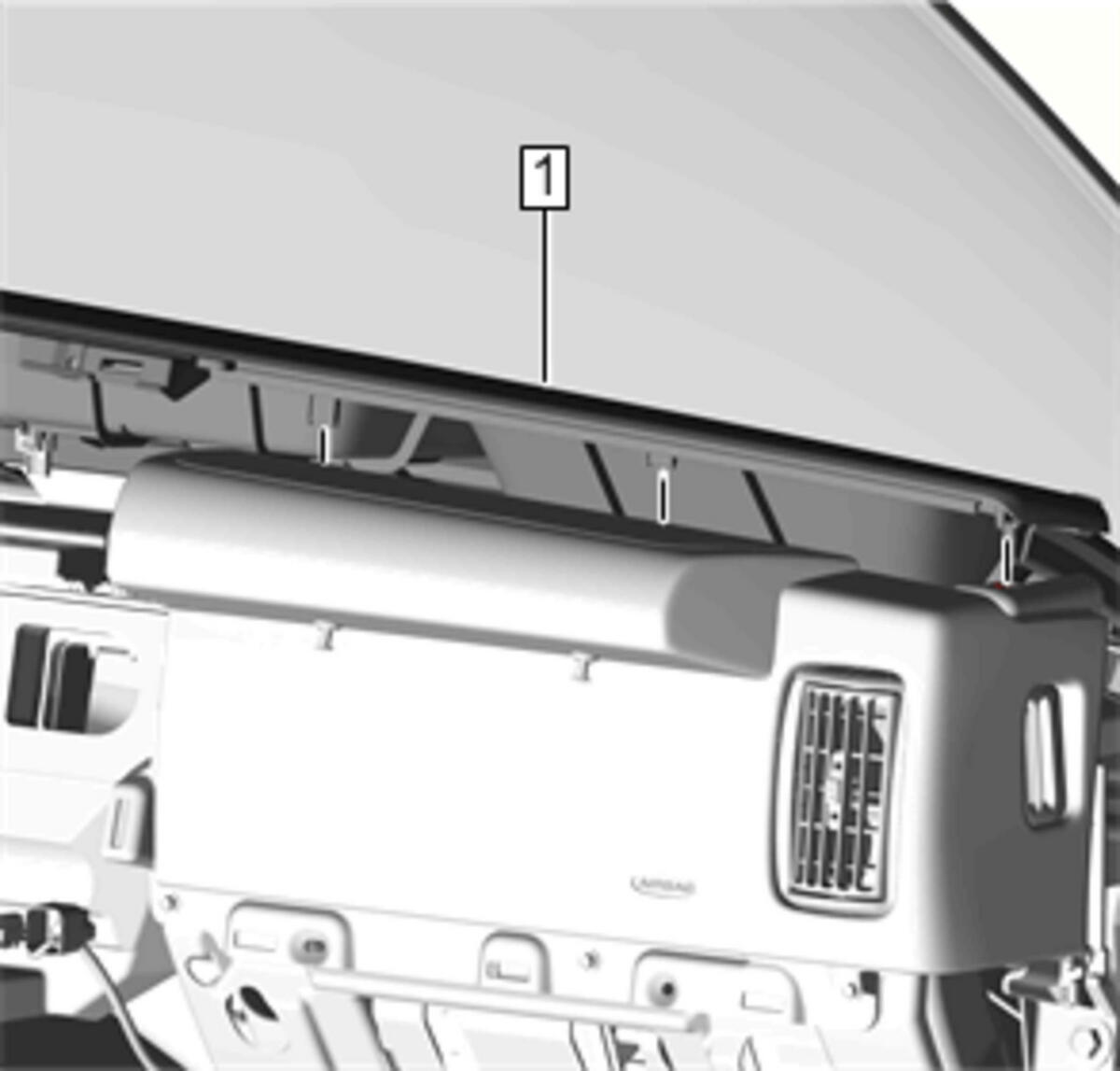

Instrument Panel Upper Trim Panel(1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

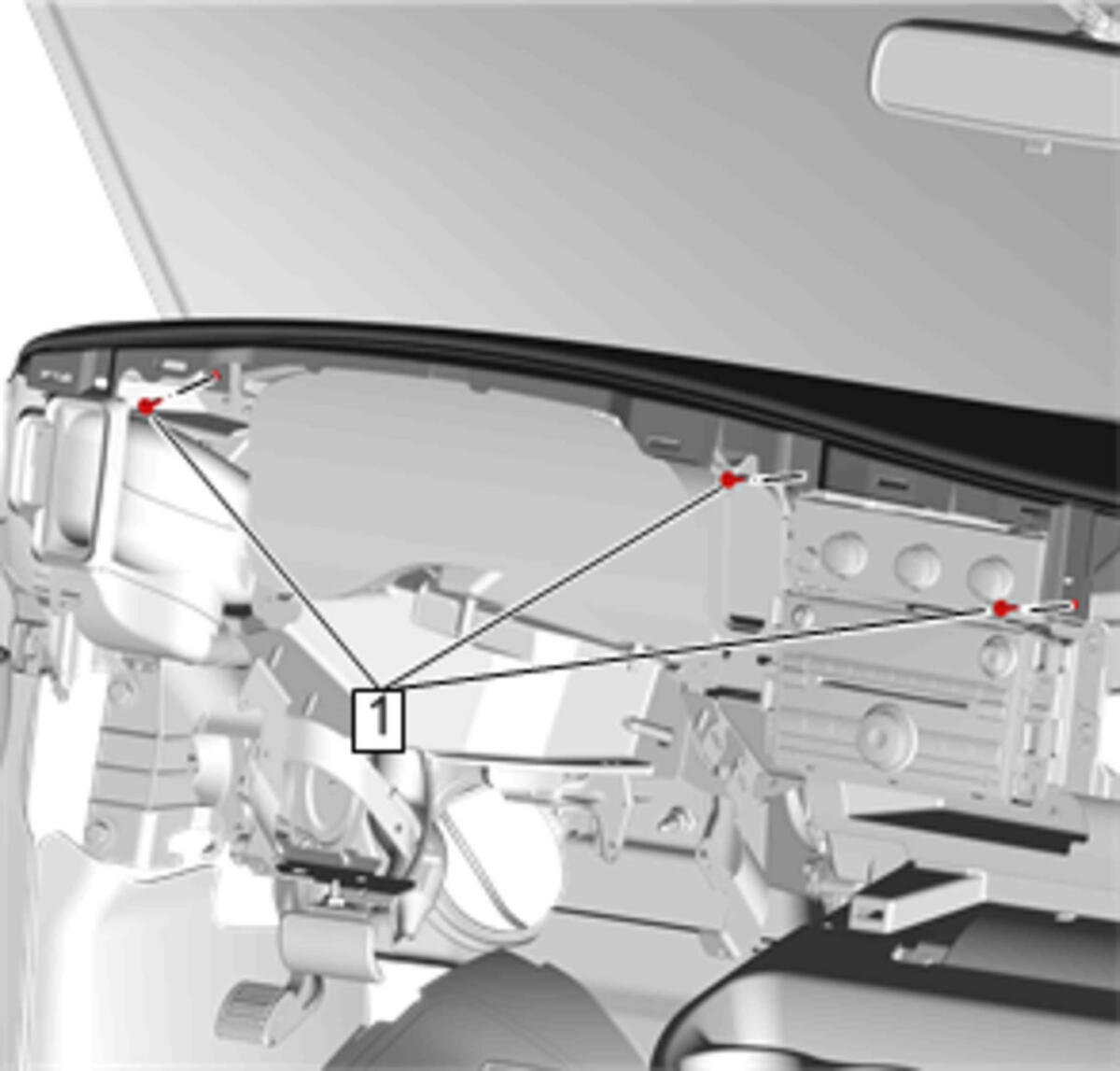

Instrument Panel Upper Trim Panel Bolt(1) - Install and tighten[3x]2.5N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Windshield Garnish Molding(3) - Install - Windshield Garnish Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Cluster Trim Plate(1) - Install - Instrument Panel Cluster Trim Plate Replacement
