Removal Procedure

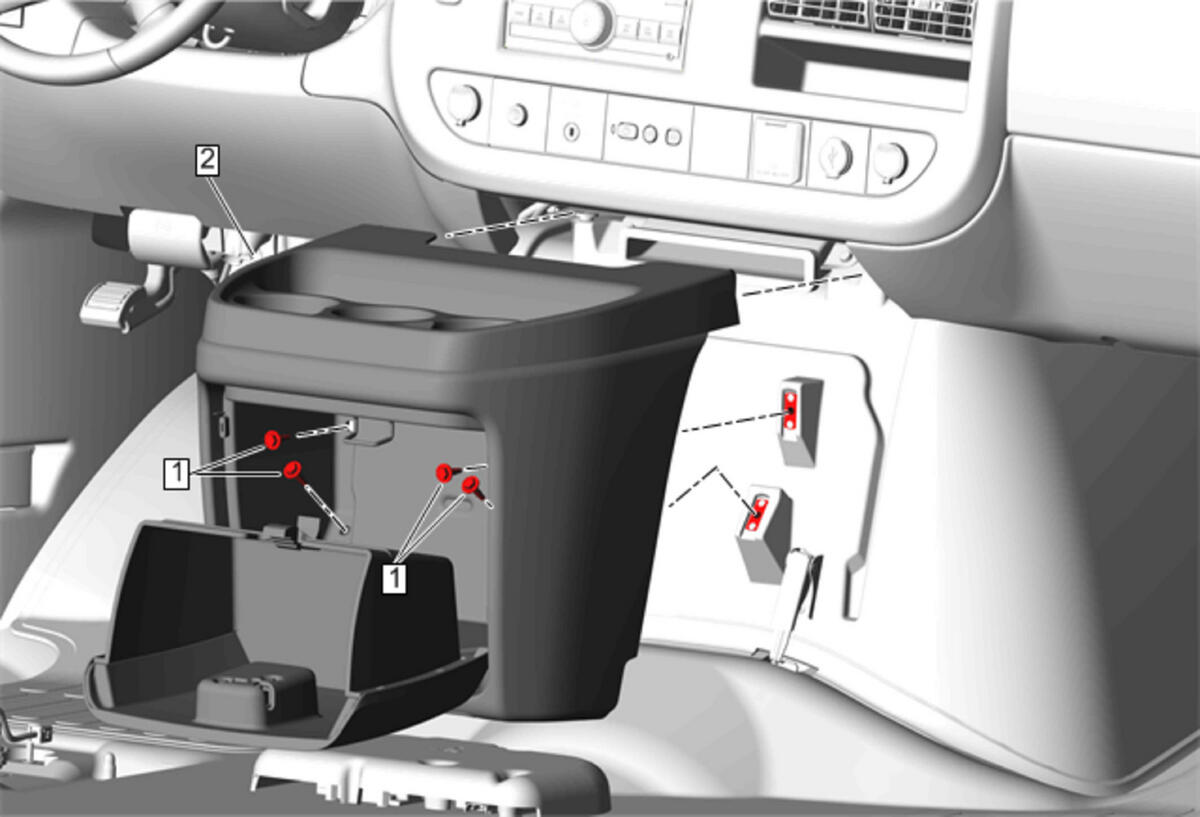

  1. GM4846560Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel(2) - Remove - Front Floor Console Extension Panel Replacement

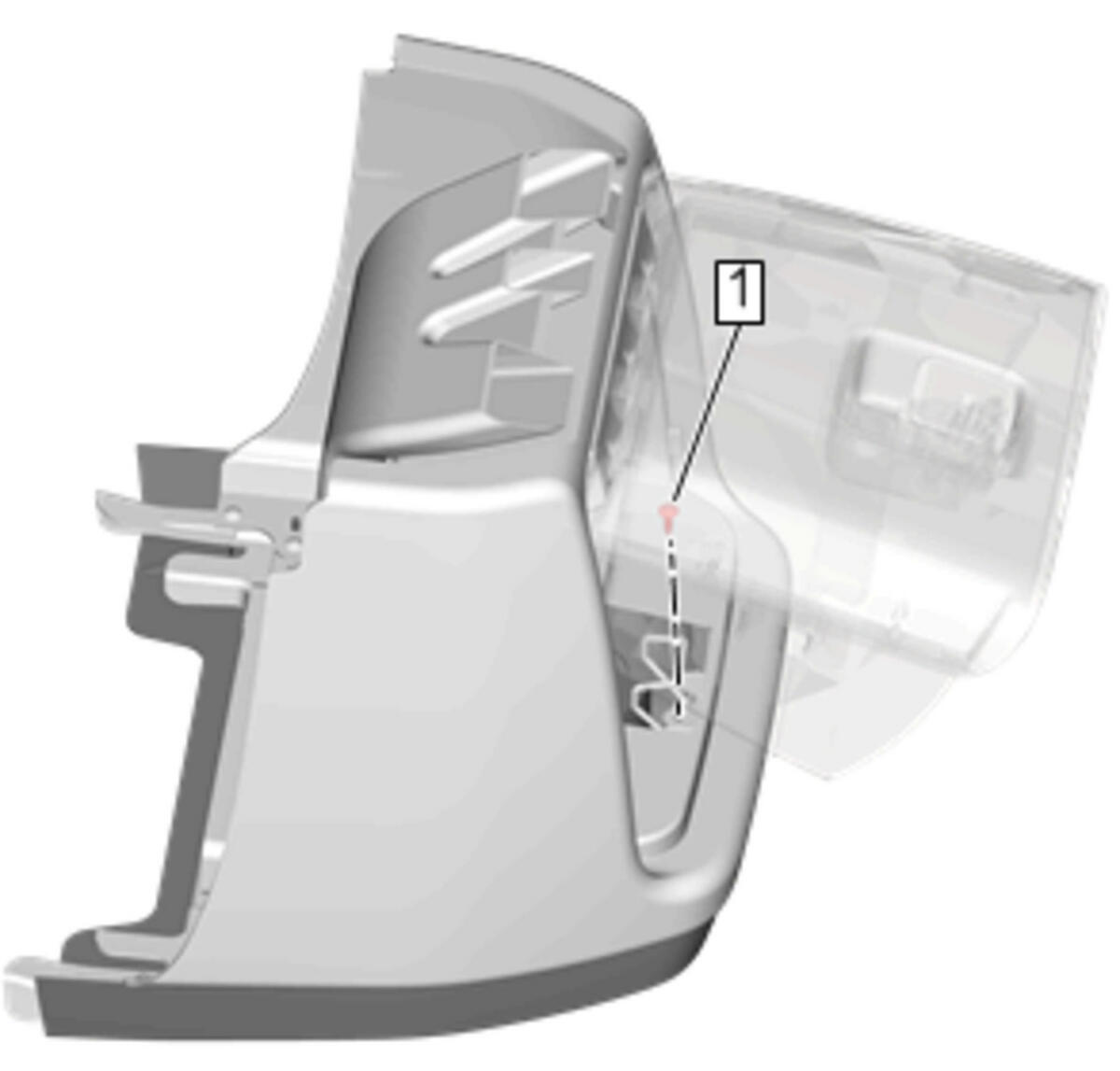

  2. GM4834117Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Extension Tray Bolt(1) - Remove

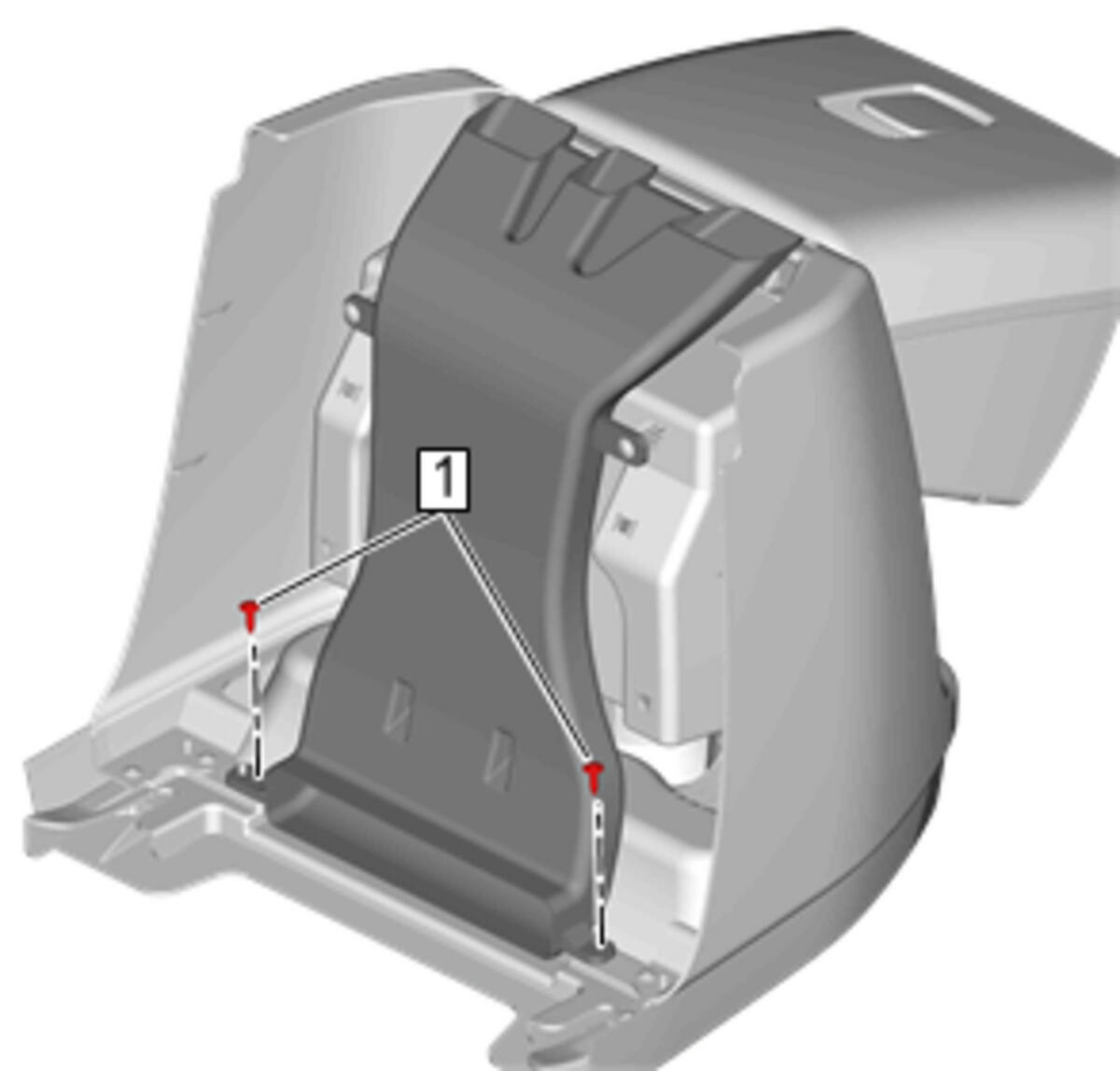

  3. GM4834119Courtesy of GENERAL MOTORS COMPANY

    Rear Floor Air Duct Bolt(1) - Remove[2x]

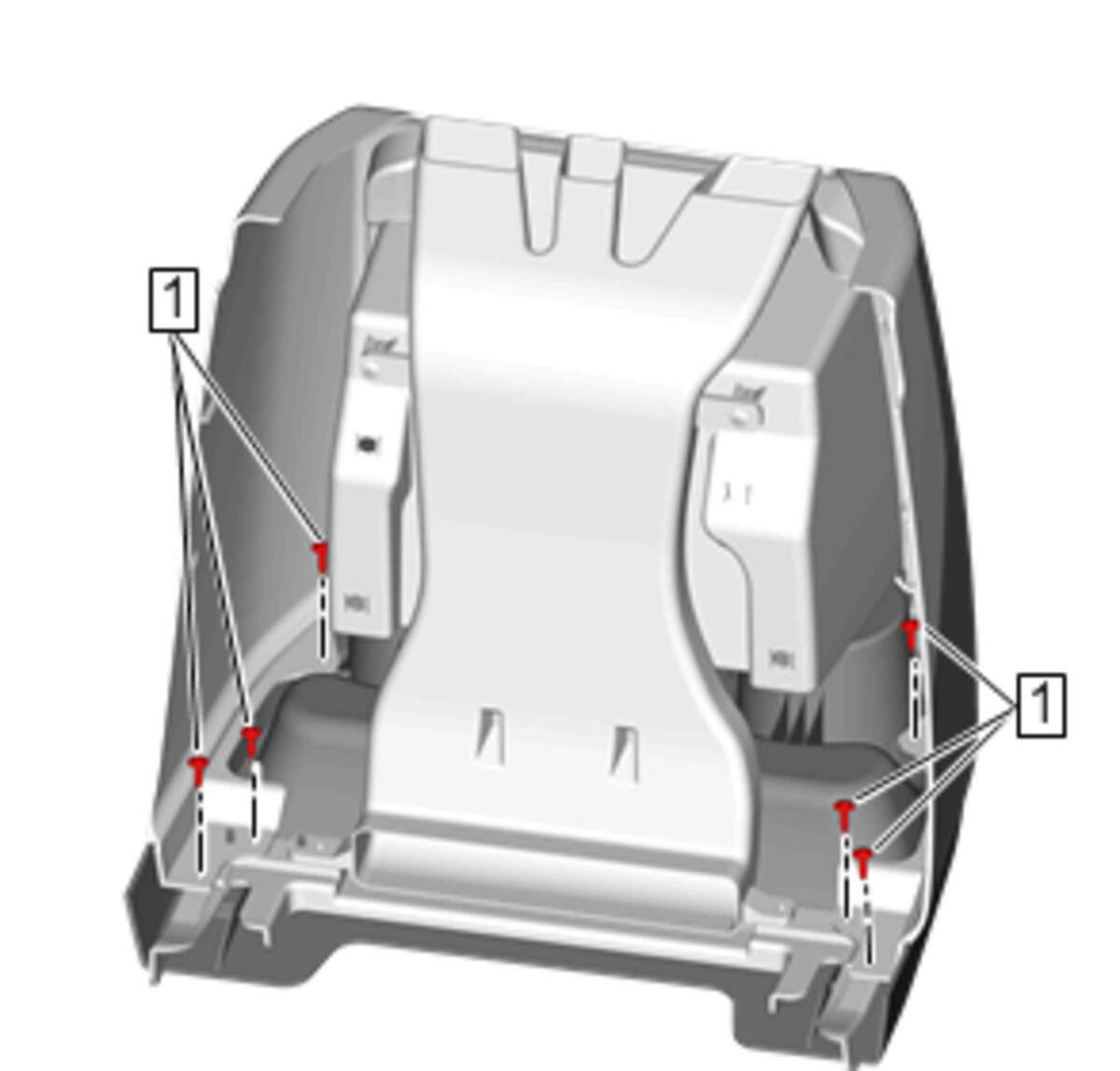

  4. GM4834121Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Extension Tray Bolt(1) - Remove[6x]

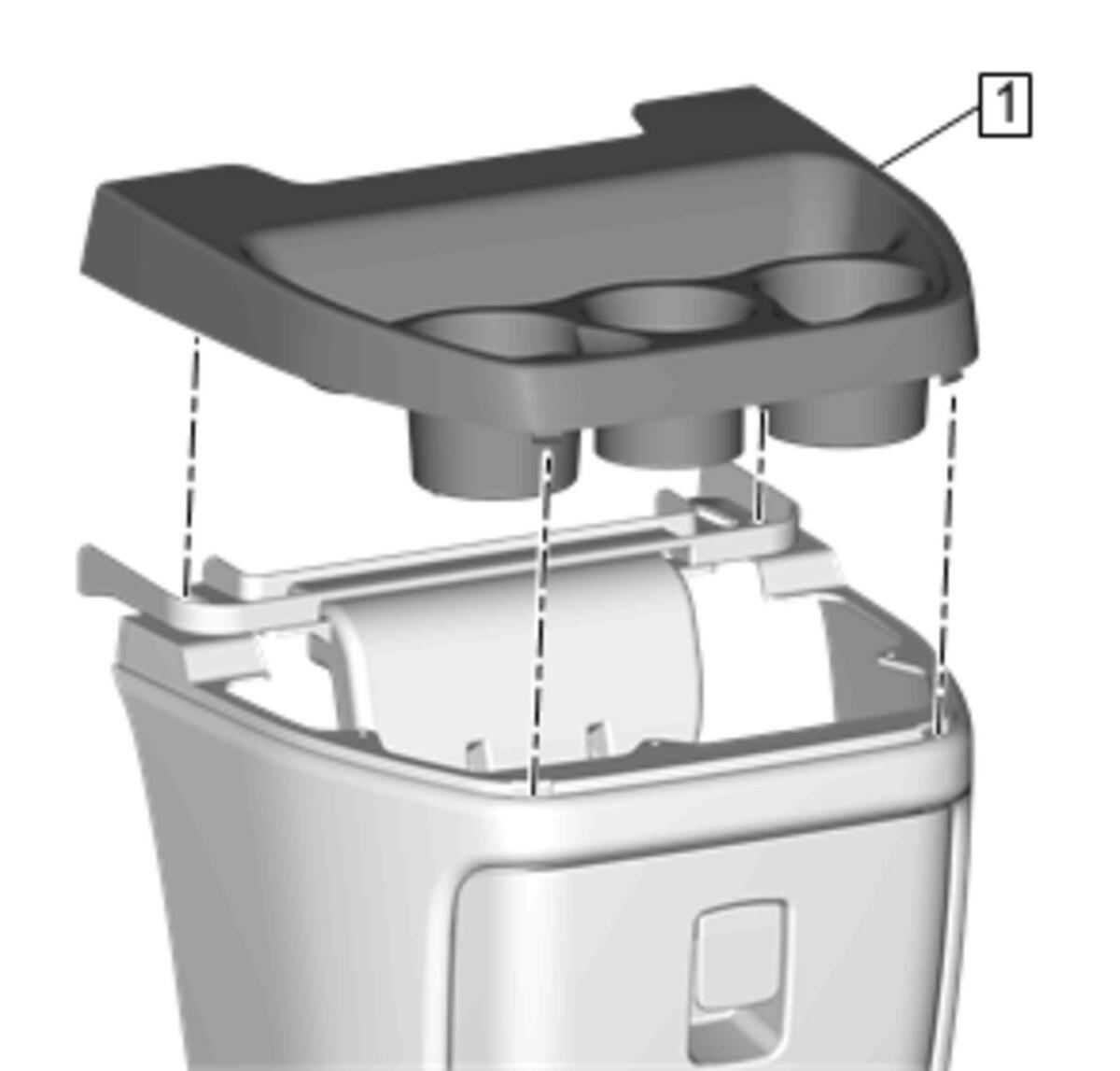

  5. GM4834123Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Extension Tray(1) - Remove

  6. Transfer components as necessary.
