Installation Procedure

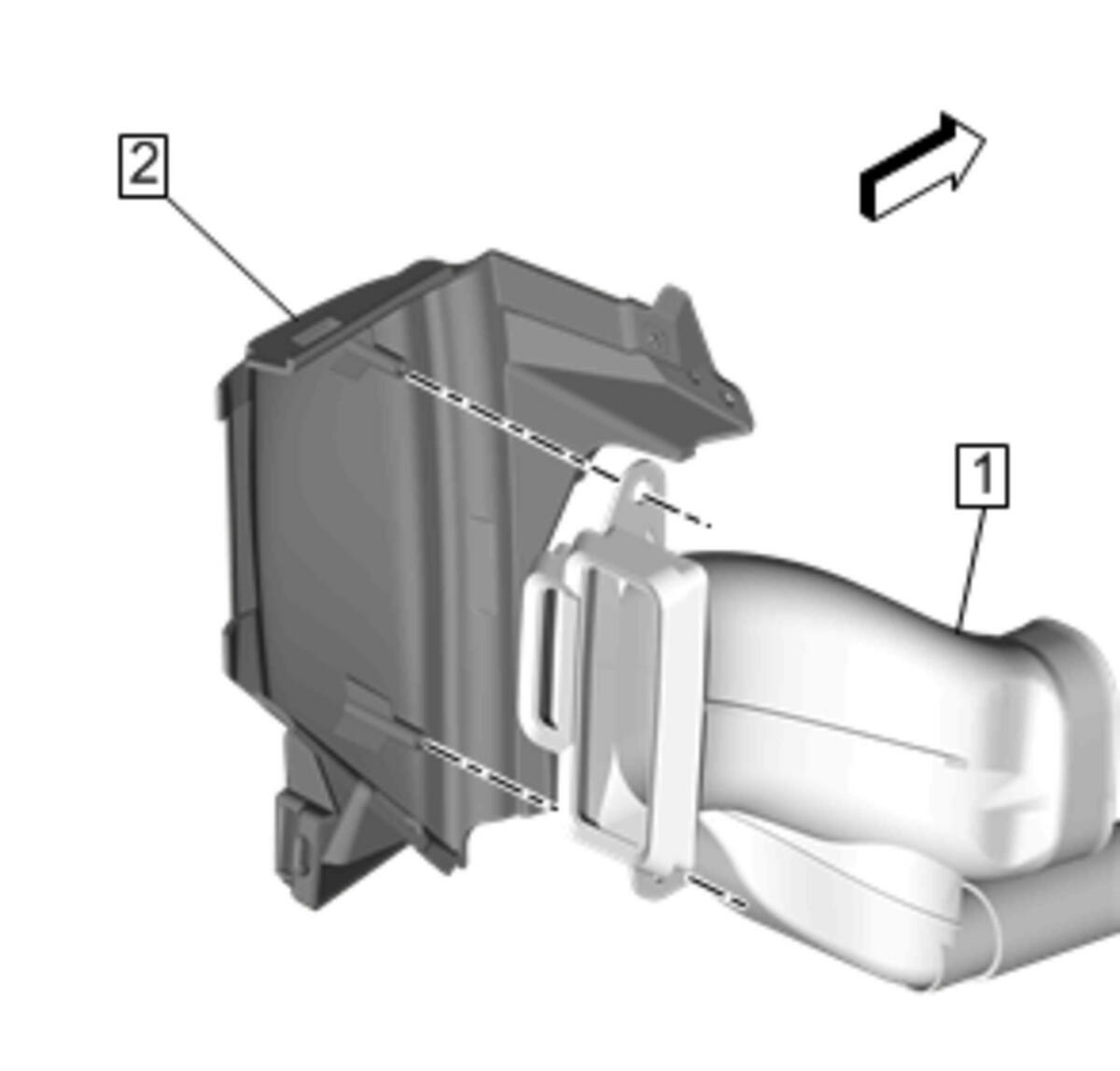

  1. GM4829962Courtesy of GENERAL MOTORS COMPANY

    Attach the instrument panel outer air outlet duct (1) to the instrument panel extension (2).

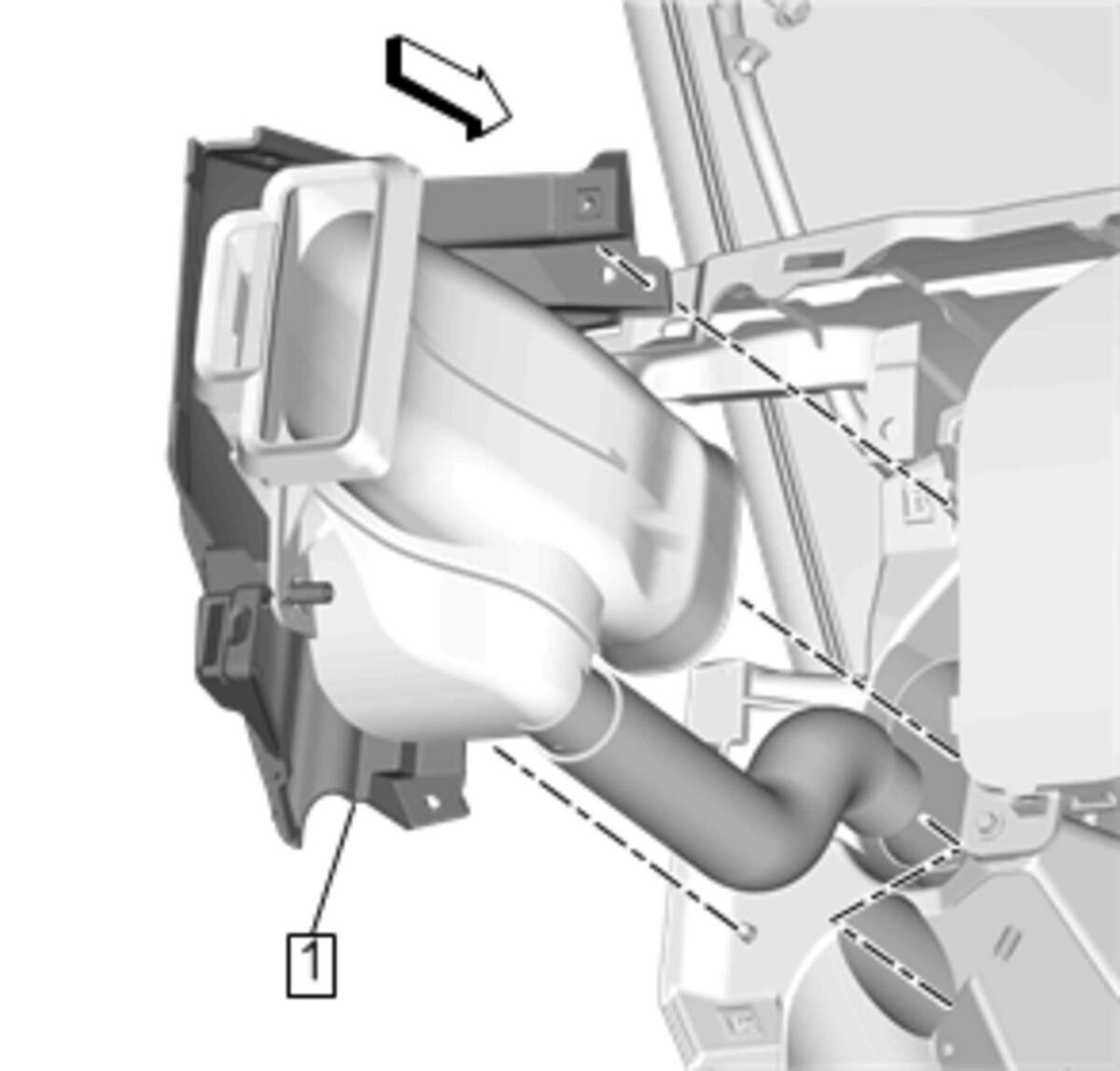

  2. GM4829960Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Extension(1) - Install

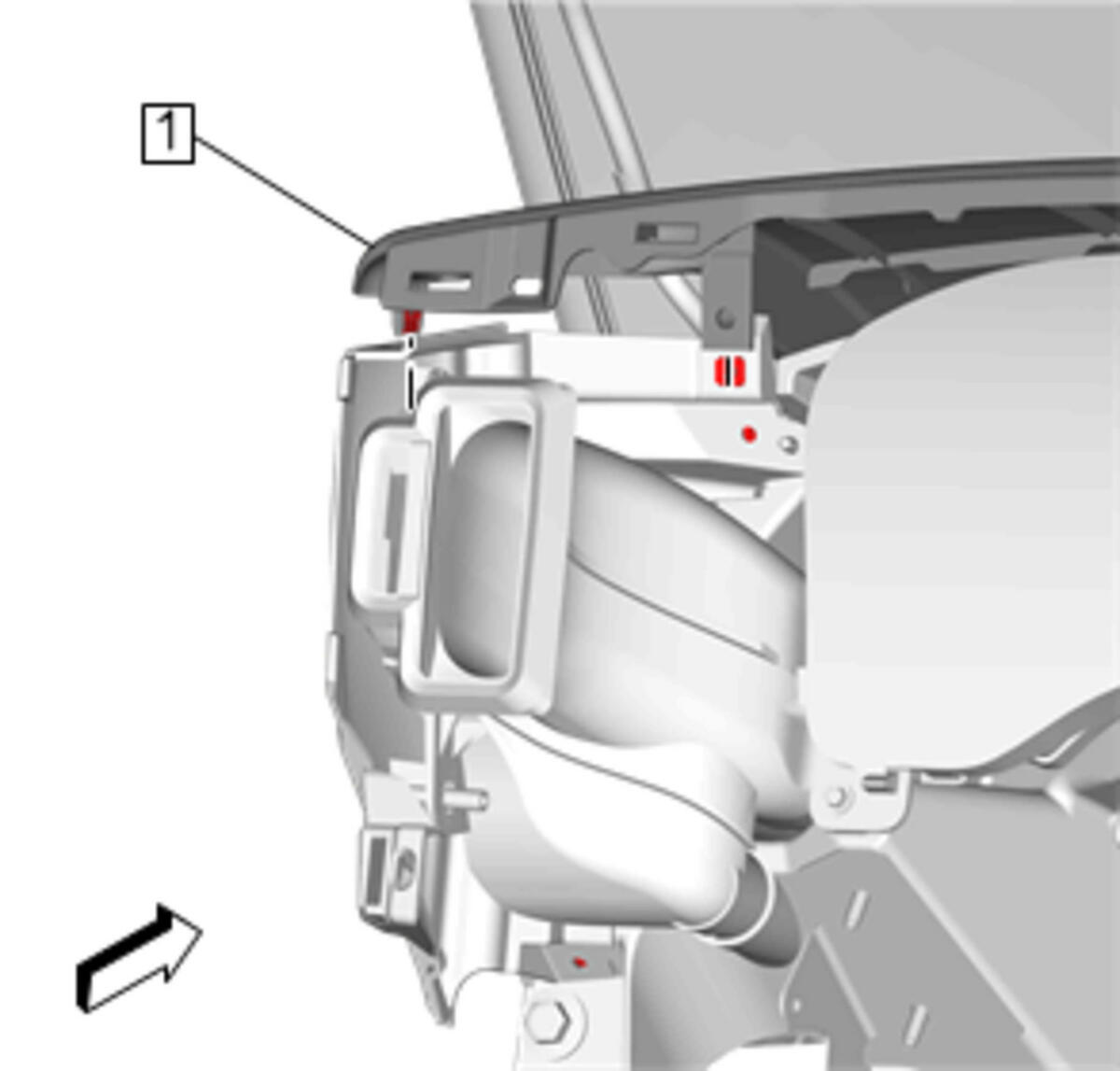

  3. GM4829957Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel(1) - Install

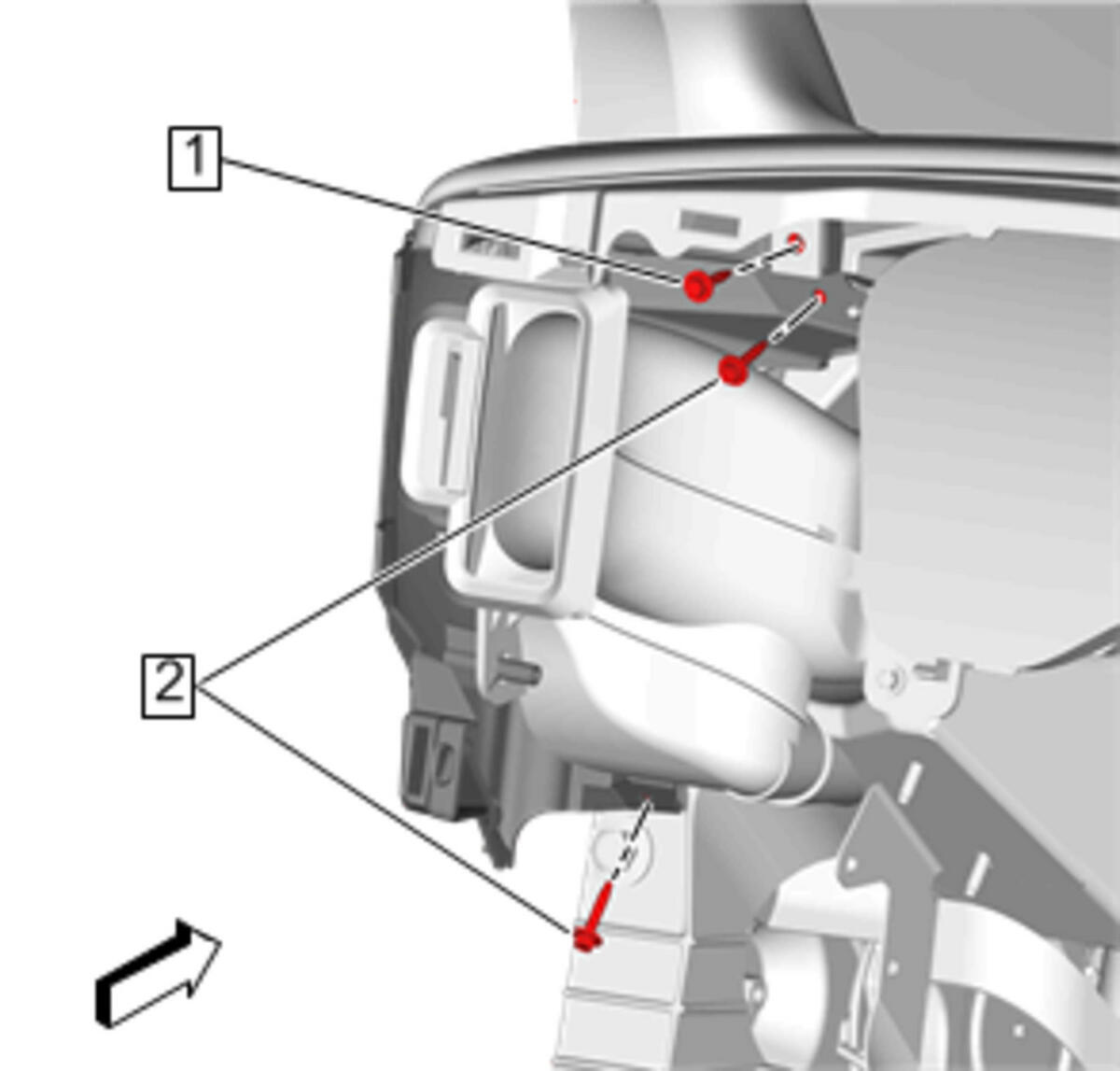

  4. GM4829955Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Upper Trim Panel Bolt(1) - Install and tighten2.5N.m (22 lb in)

  5. Instrument Panel Extension Bolt(2) - Install and tighten[2x]2.5N.m (22 lb in)
  6. GM4850465Courtesy of GENERAL MOTORS COMPANY

    Windshield Garnish Molding(3) - Install - Windshield Garnish Molding Replacement

  7. GM4826303Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate(1) - Install - Instrument Panel Cluster Trim Plate Replacement
