Removal Procedure

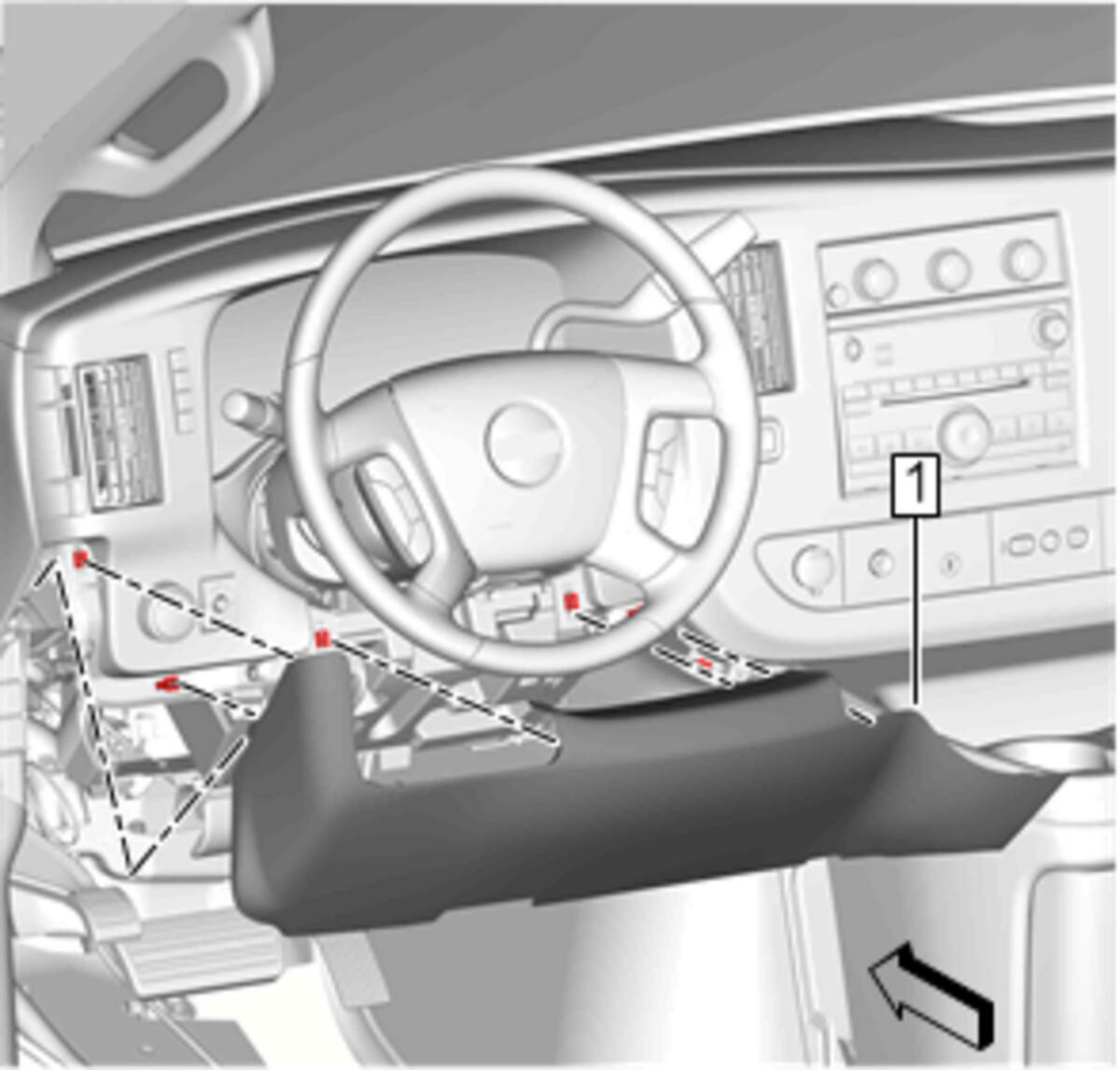

  1. GM4824075Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster-Left Side(1) - Remove - Instrument Panel Knee Bolster Replacement (Left Side) Instrument Panel Knee Bolster Replacement (Right Side)

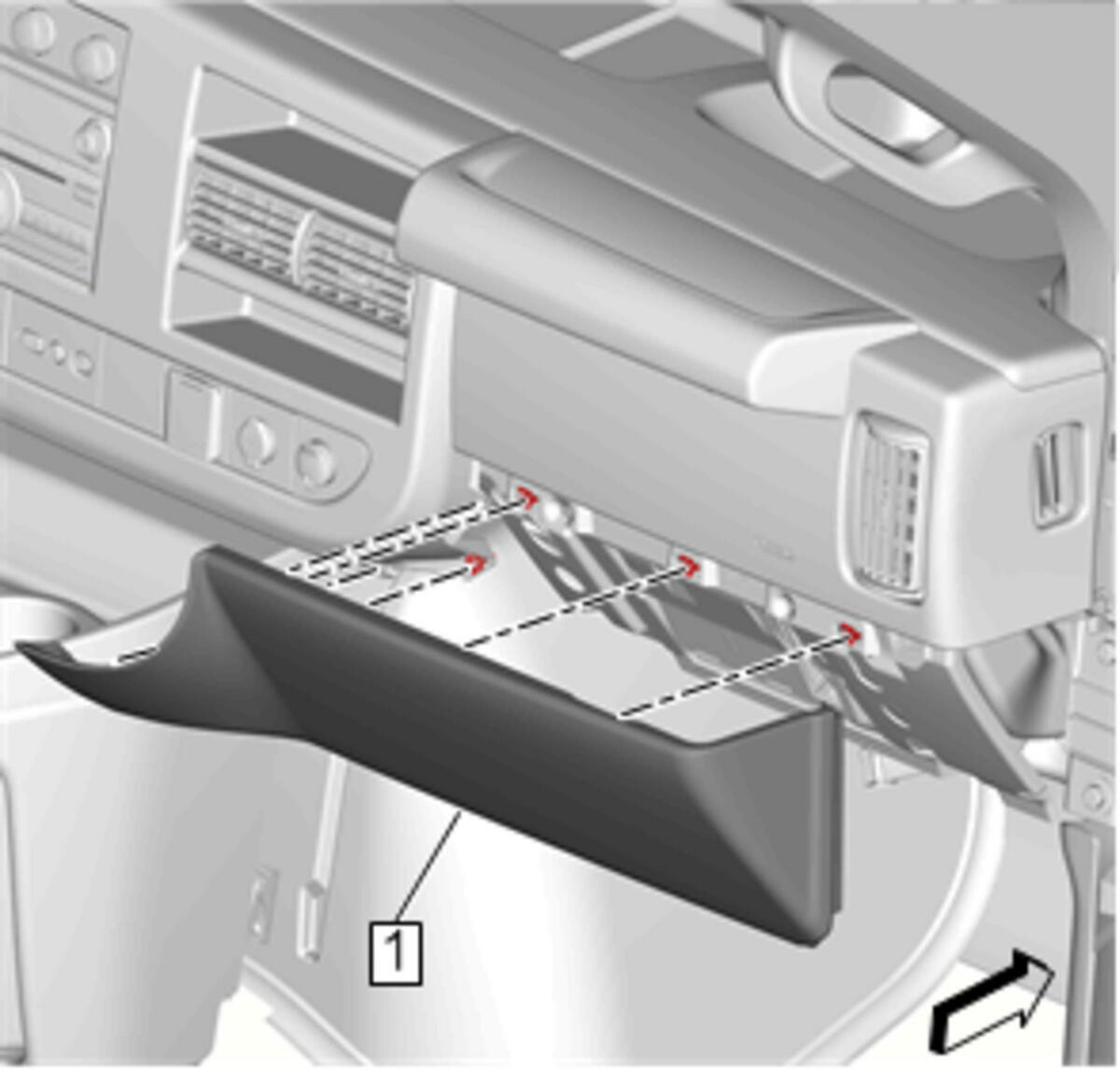

  2. GM4824438Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster-Right Side(1) - Remove - Instrument Panel Knee Bolster Replacement (Left Side) Instrument Panel Knee Bolster Replacement (Right Side)

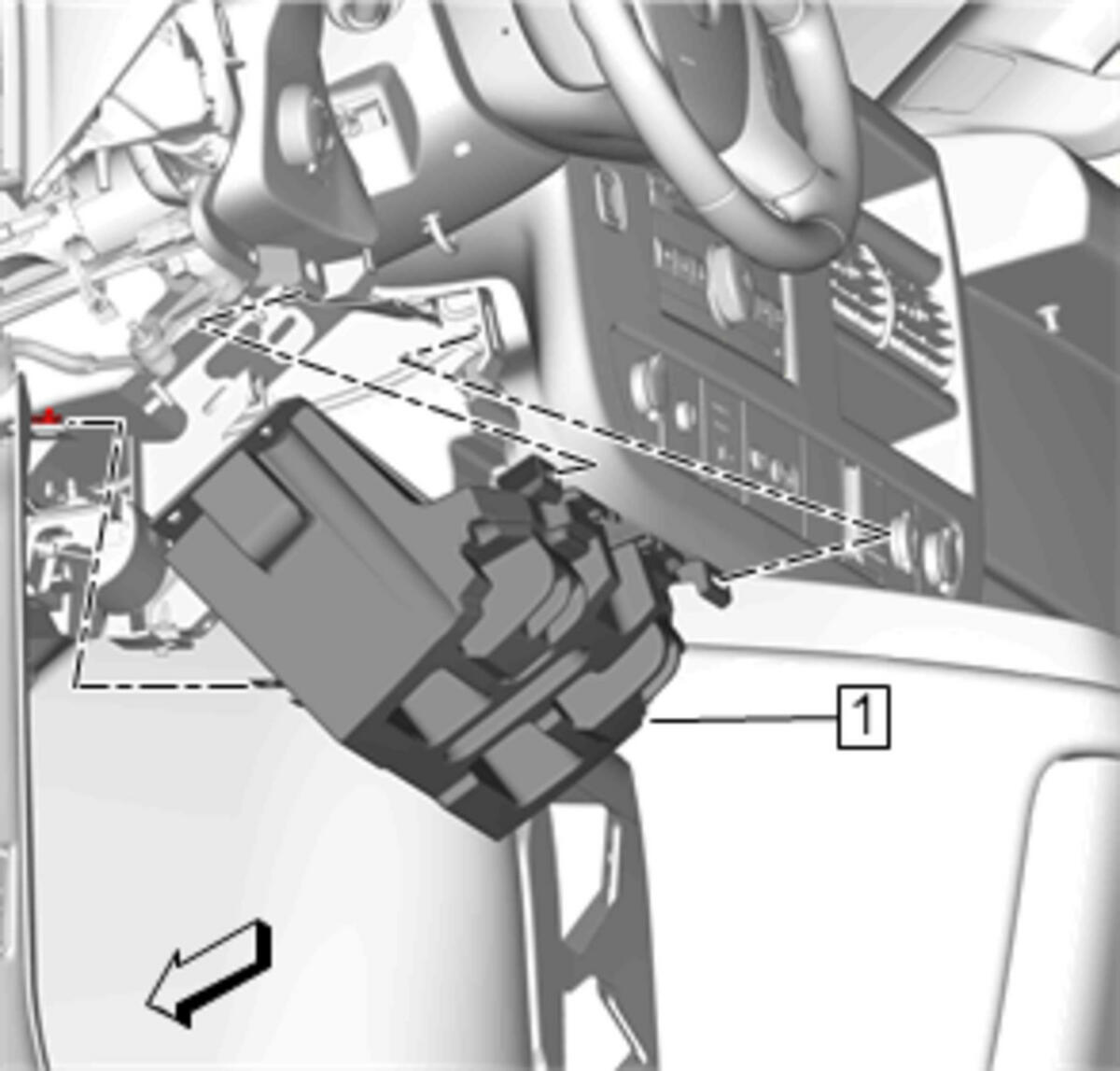

  3. GM4824132Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Bracket(1) - Remove - Instrument Panel Knee Bolster Bracket Replacement (Left Side) Instrument Panel Knee Bolster Bracket Replacement (Right Side)

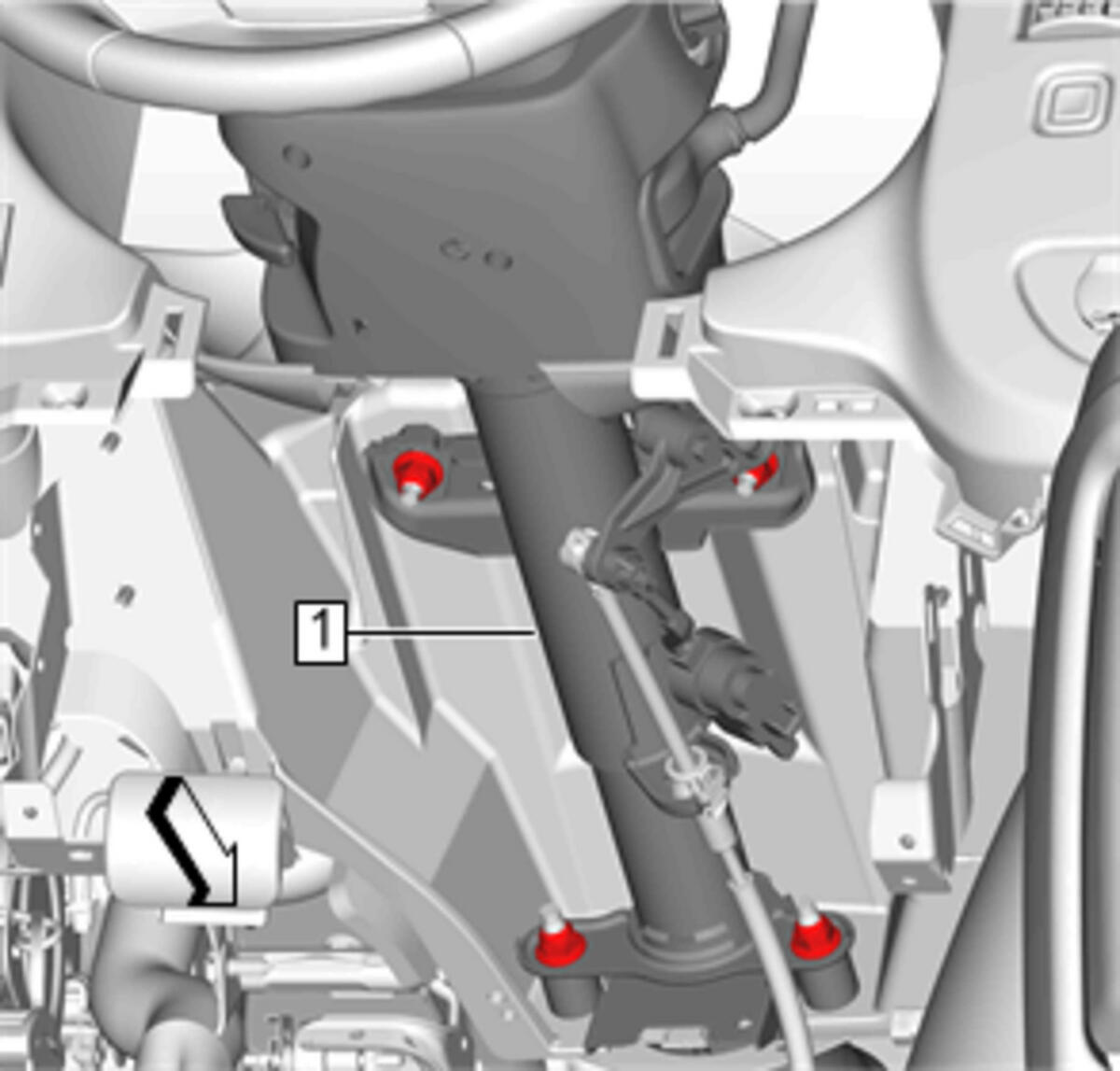

  4. GM4826301Courtesy of GENERAL MOTORS COMPANY

    Remove the steering column nuts securing the steering column (1) to the instrument panel carrier and lower the entire column to the floor and position out of the way. Steering Column Replacement

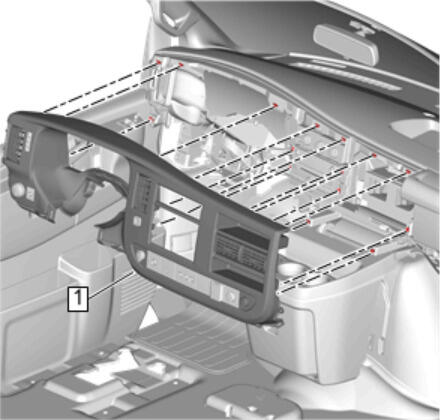

  5. GM4826303Courtesy of GENERAL MOTORS COMPANY

    Use a flat bladed plastic trim tool.

  6. Instrument Panel Cluster Trim Plate(1) - Remove
  7. Disconnect the electrical connectors.
  8. Transfer components as necessary.
