Removal Procedure

  1. GM4831159Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel(1) - Remove - Instrument Panel Upper Trim Panel Replacement

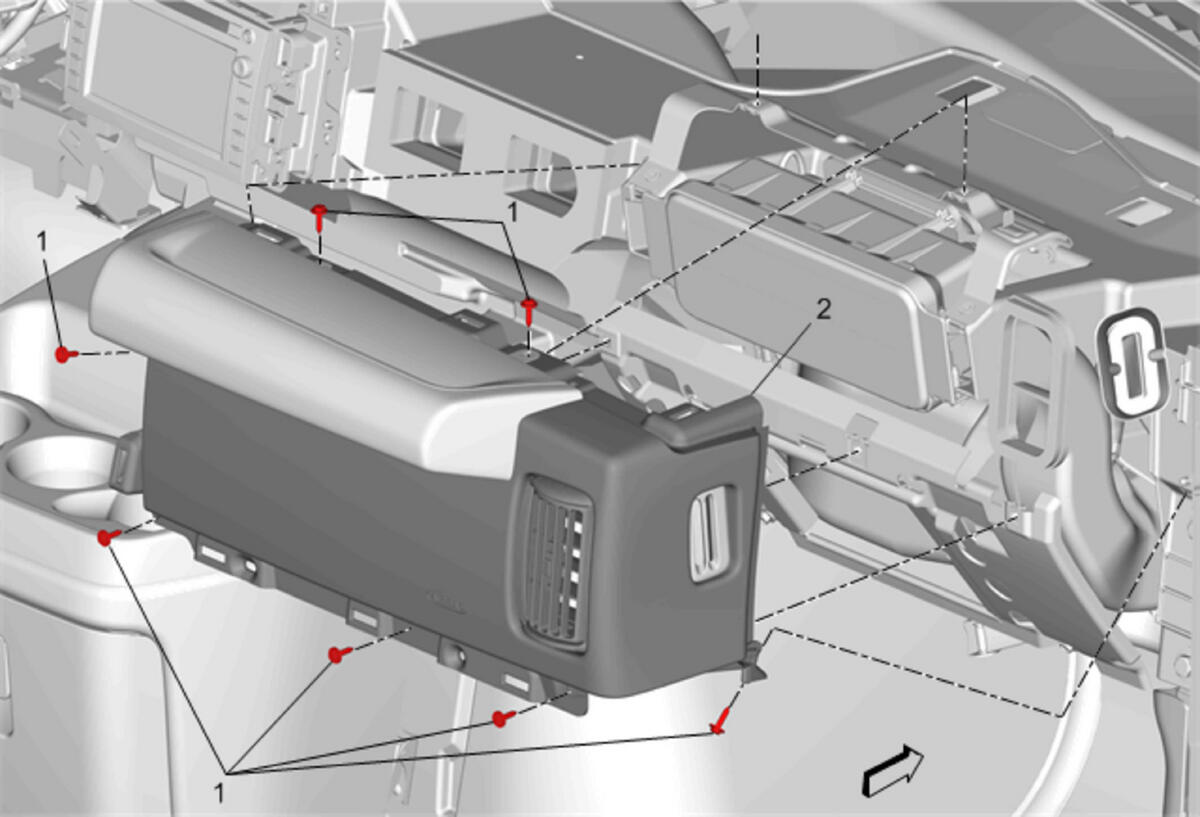

  2. GM3819898Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad(2) - Remove - Instrument Panel Trim Pad Replacement

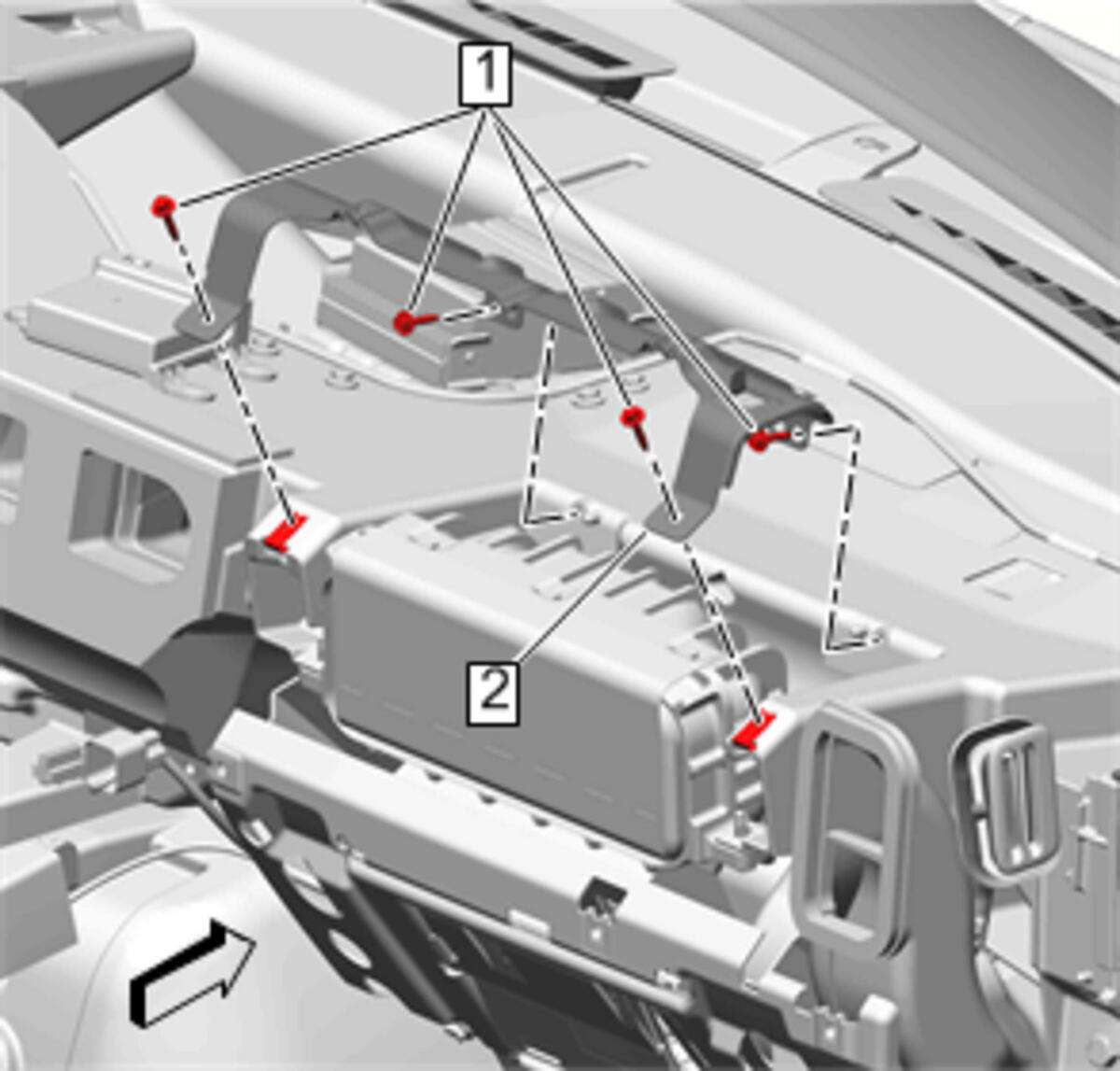

  3. GM4841247Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Pad Bracket Bolt(1) - Remove

  4. Instrument Panel Accessory Bracket(2) - Remove
