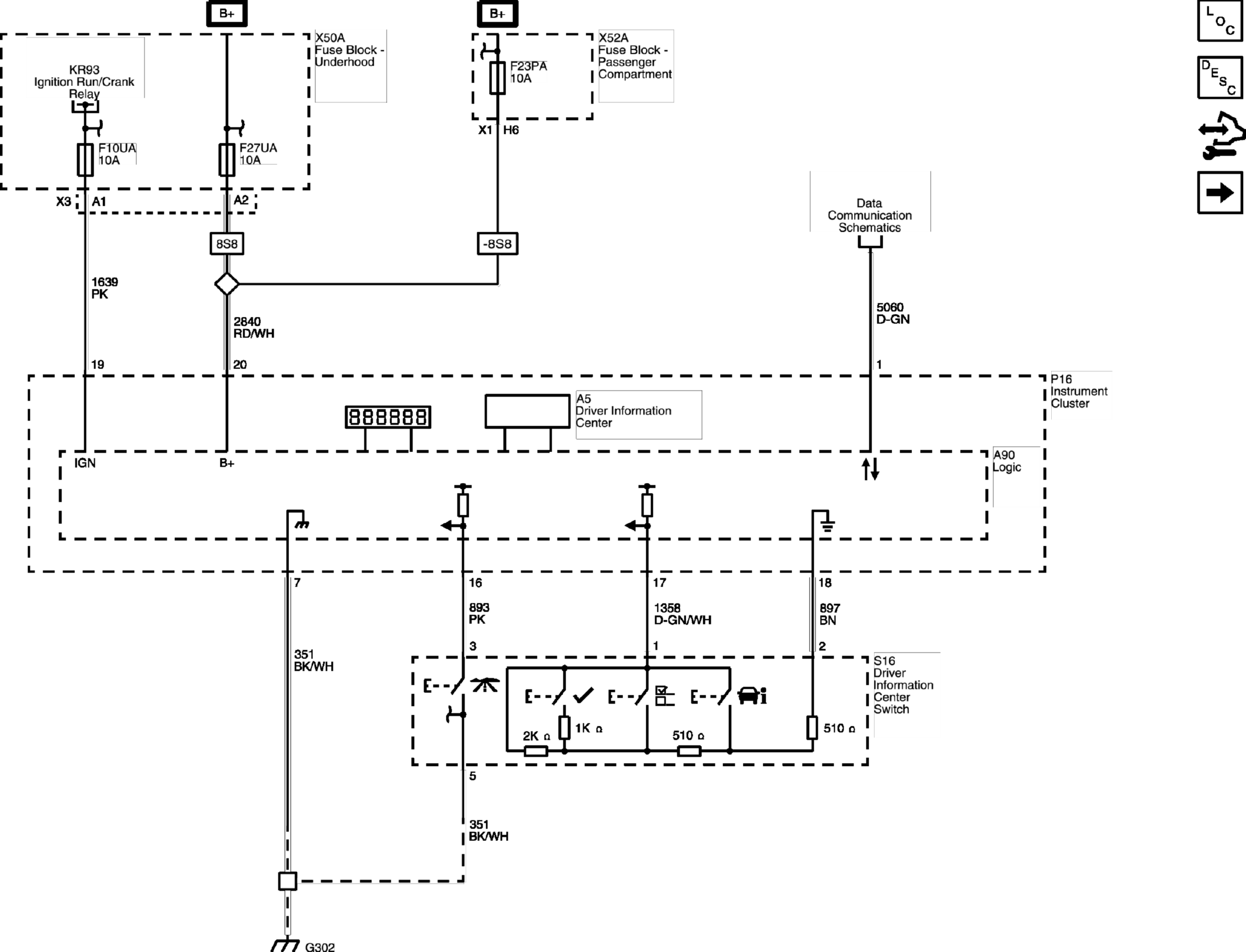

Power, Ground and Driver Information Center (DIC) Switch

GM5278451

Courtesy of GENERAL MOTORS COMPANY
