Instrument Panel Lower Trim Panel Insulator Replacement - Left Side

Courtesy of GENERAL MOTORS COMPANY

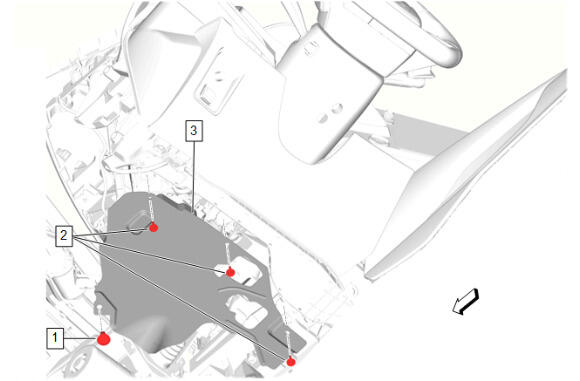

Callout	Component Name
1	Instrument Panel Lower Insulator Retainer Procedure  Using a flat-bladed plastic trim tool, release the retainer
2	Instrument Panel Lower Trim Panel Insulator Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
3	Instrument Panel Lower Trim Panel Insulator
