Removal Procedure
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection

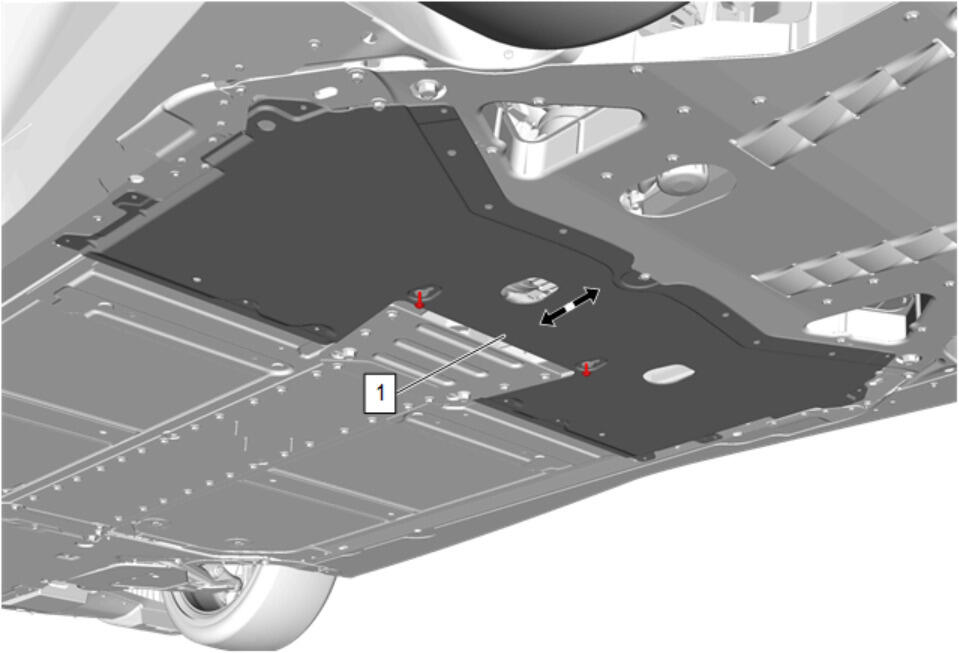

Underbody Rear Air Deflector (1) - Remove - Underbody Rear Air Deflector Replacement

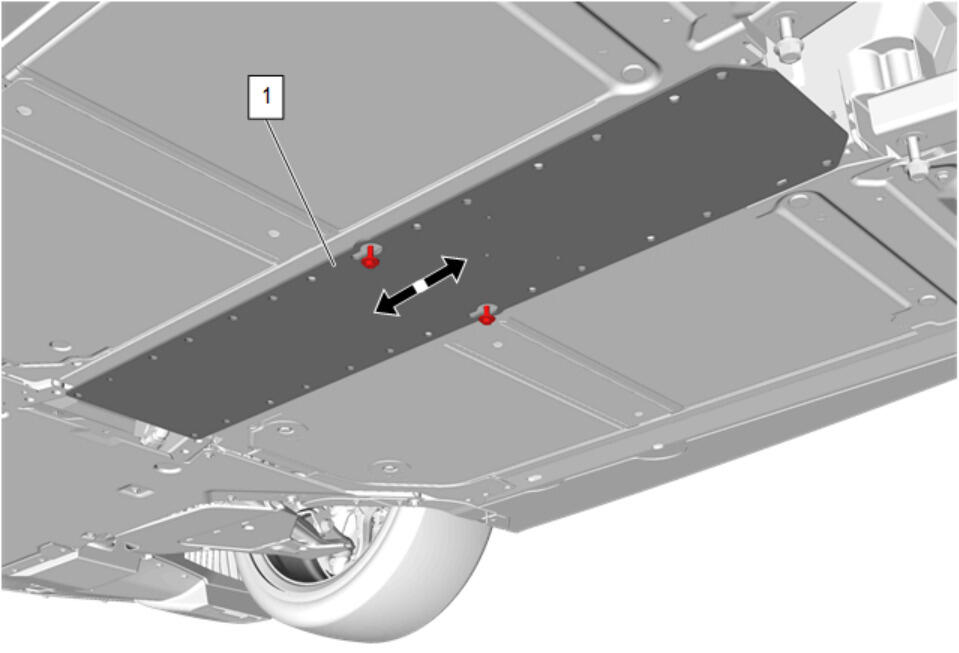

Floor Panel Tunnel Panel Front Reinforcement (1) - Remove - Floor Panel Tunnel Panel Front Reinforcement Replacement - Mid-Tunnel

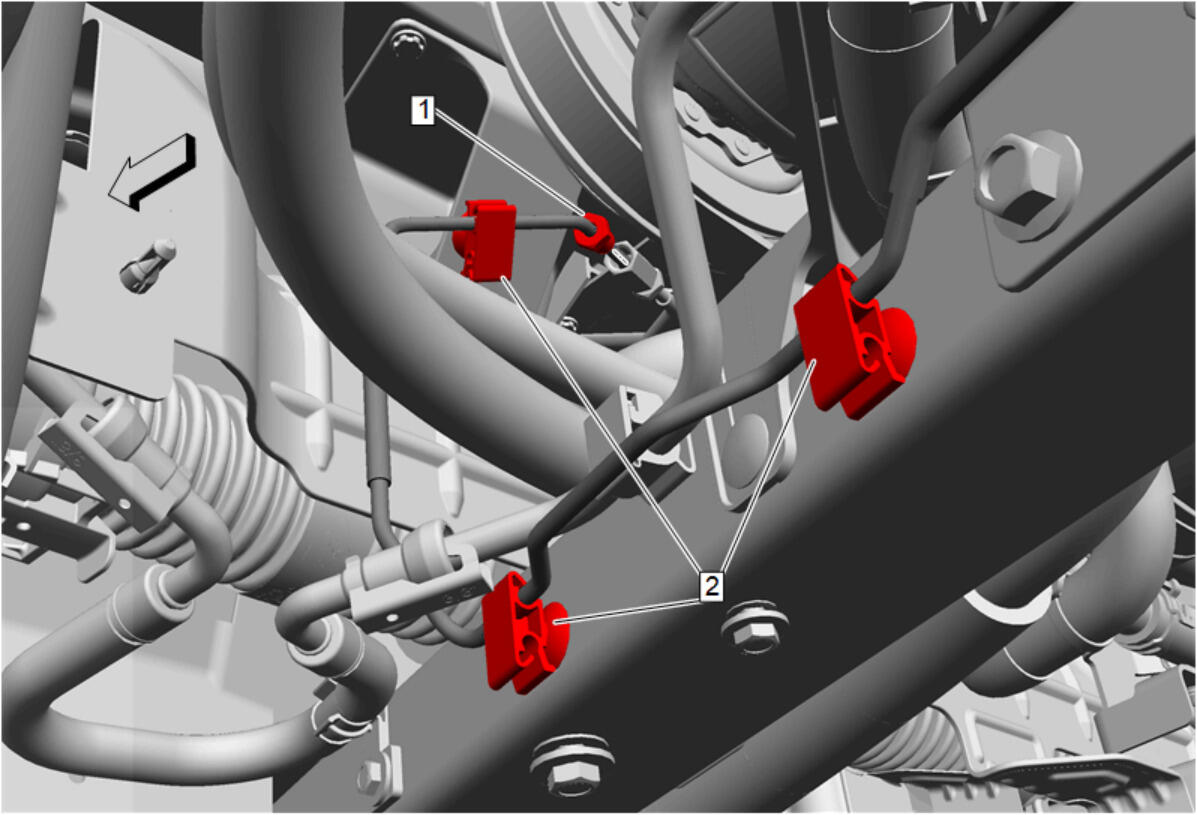

Retainer (2) - Release [3x]
- Rear Brake Pipe Nut (1) - Remove
- Plug the brake pipe union inlet port to prevent brake fluid loss and contamination.
- Cap the rear brake pipe to prevent brake fluid loss and contamination.

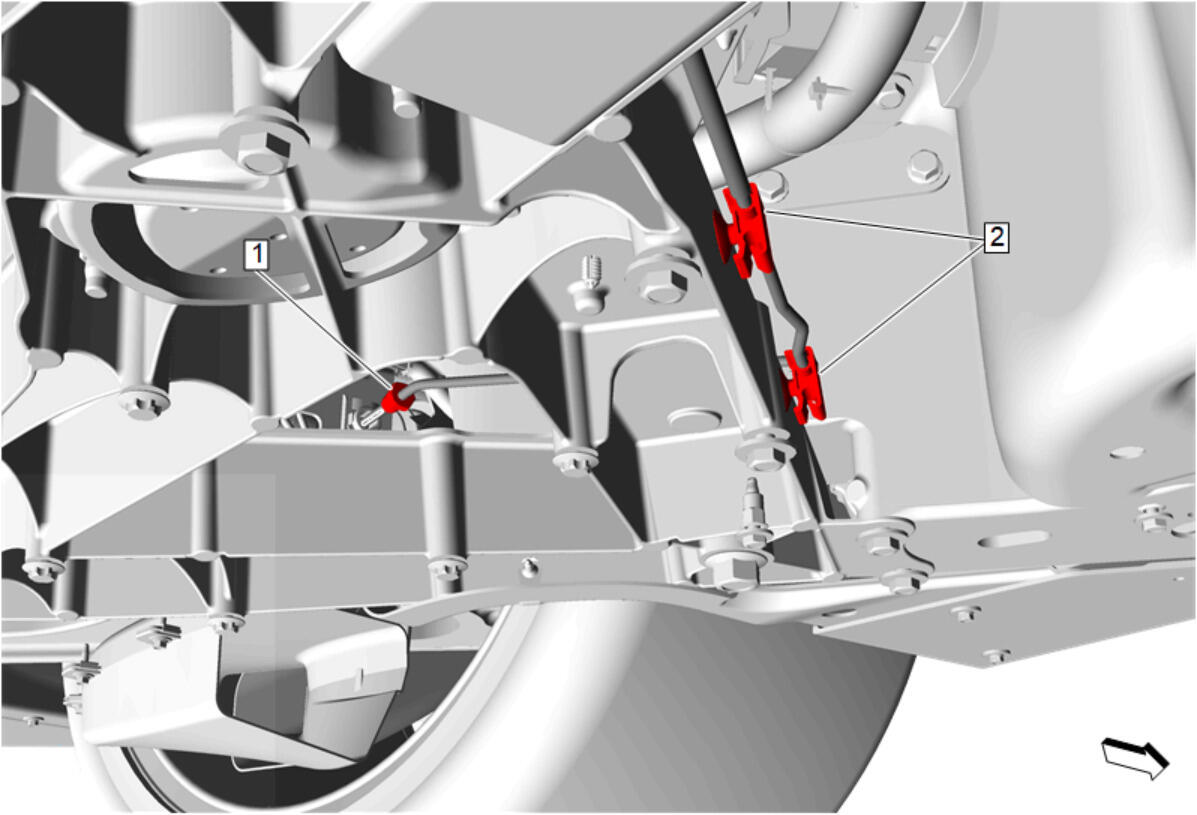

Retainer (2) - Release [2x]
- Rear Brake Pipe Nut (1) - Remove
- Plug the rear brake hose inlet port to prevent brake fluid loss and contamination.
- Cap the rear brake pipe to prevent brake fluid loss and contamination.

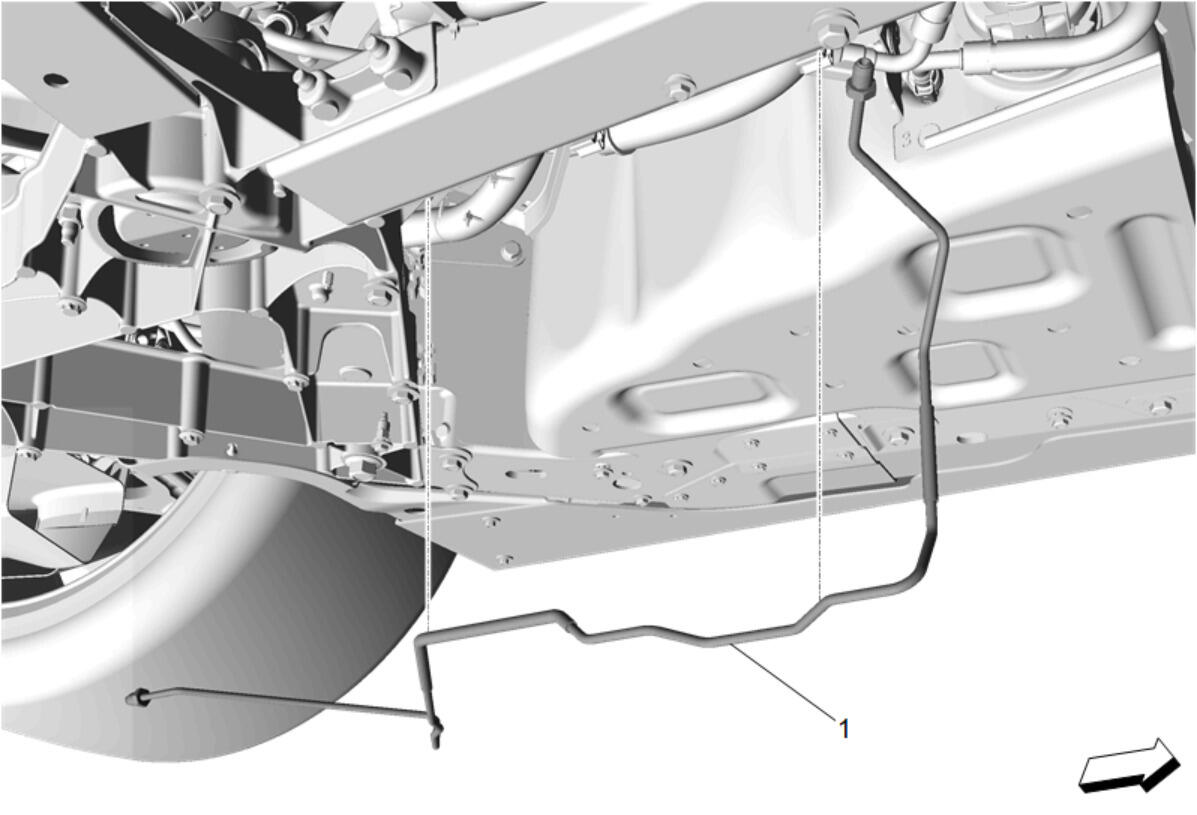

Maneuver the rear brake pipe (1) out from under the vehicle.
