Removal Procedure
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation

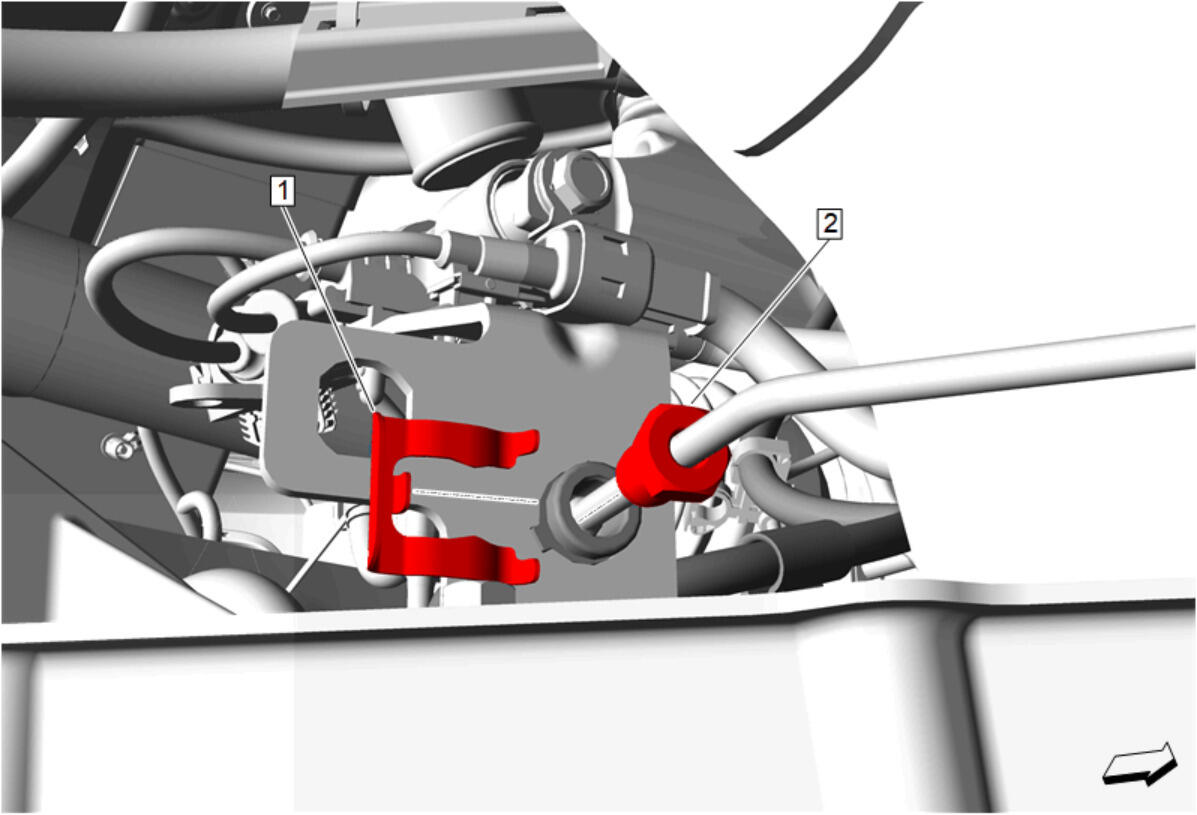

Brake Pressure Modulator Valve Master Cylinder Reservoir Rear Pipe Nut (2) - Remove
- Retainer (1) - Remove
- Cap the brake pipe fitting to prevent brake fluid loss and contamination.
- Plug rear brake hose to prevent brake fluid loss and contamination.

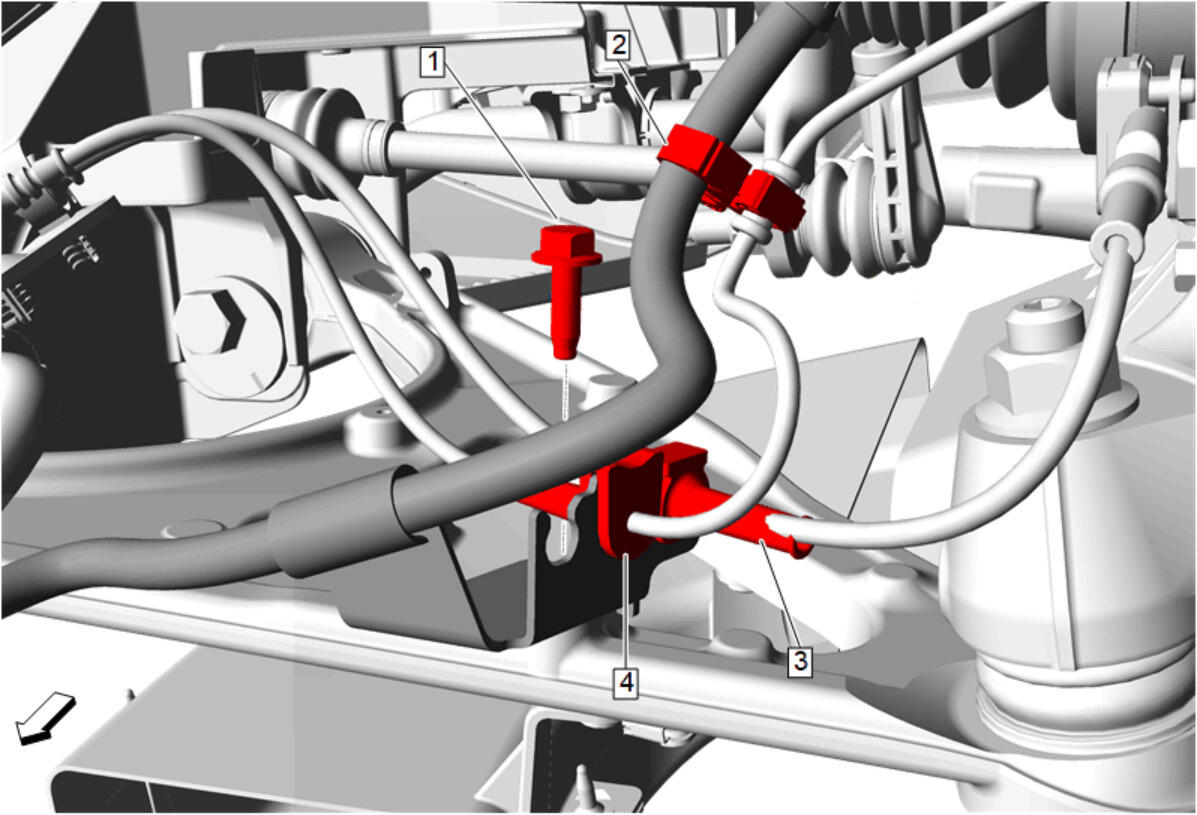

Retainer Clip (2) - Release
- If equipped, remove the electronic suspension rear vertical accelerometer grommet (3) from the brake hose bracket.
- Remove the rear wheel speed sensor grommet (4) from the brake hose bracket.
- Rear Brake Hose Bracket Bolt (1) - Remove

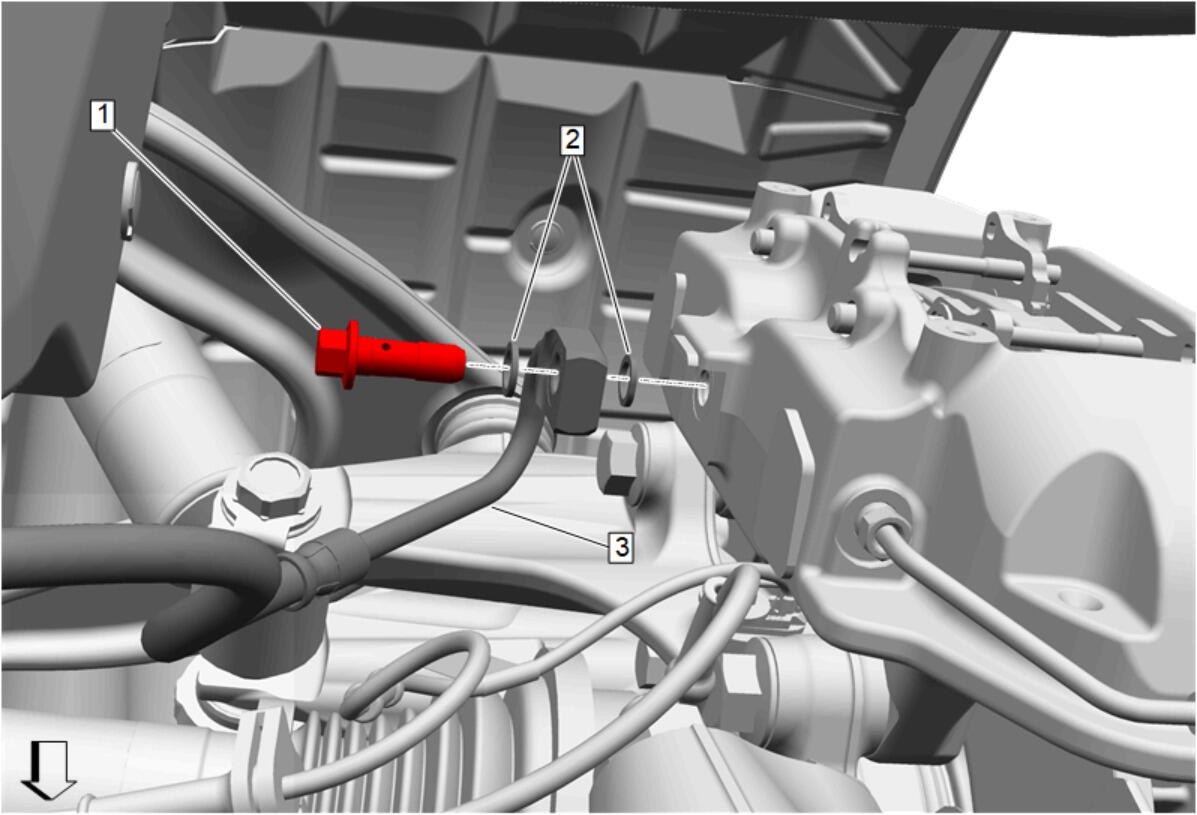

Rear Brake Hose Fitting (1) - Remove
- Brake Hose Fitting Gasket (2) @ Rear Brake Hose Fitting (1) - Remove and DISCARD [2x]
- Plug the brake caliper inlet to prevent brake fluid loss and contamination.
- Plug the brake hose inlet to prevent brake fluid loss and contamination.
- Rear Brake Hose (3) - Remove
