Removal Procedure
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Remove the tire and wheel assembly. Tire and Wheel Removal and Installation

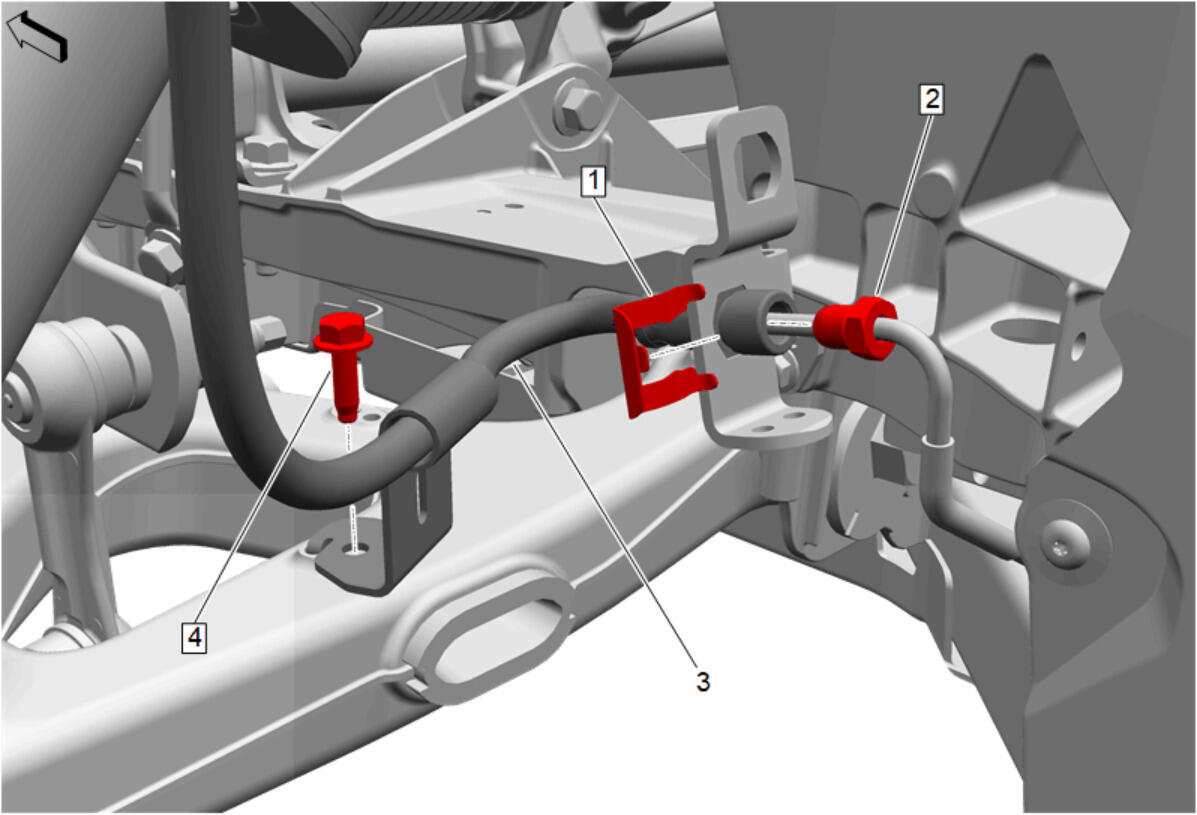

Brake Pressure Modulator Valve Master Cylinder Reservoir Front Pipe Nut (2) - Remove
- Cap the brake pipe fitting to prevent brake fluid loss and contamination.
- Retainer (1) - Remove
- Front Brake Hose Bracket Bolt (4) - Remove

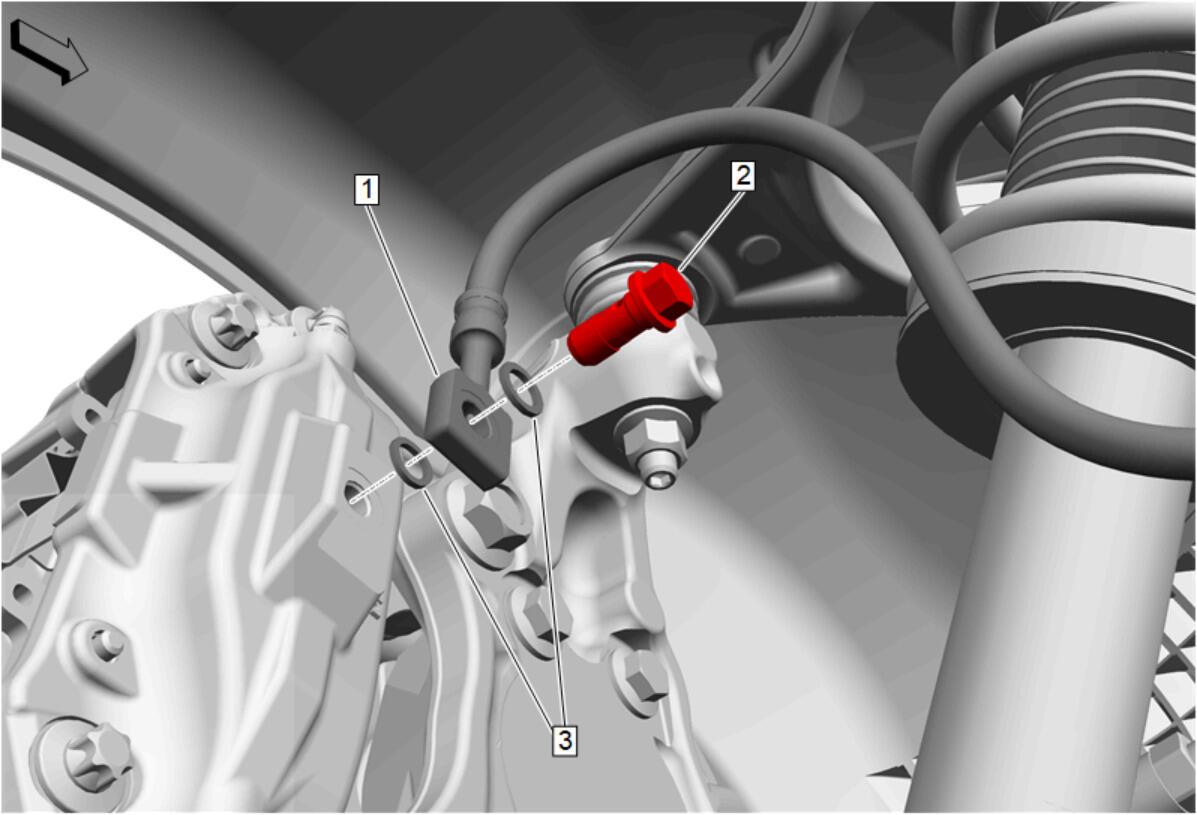

Front Brake Hose Fitting (2) - Remove
- Brake Hose Fitting Gasket (3) @ Front Brake Hose Fitting (2) - Remove and DISCARD [2x]
- Plug the brake caliper inlet to prevent brake fluid loss and contamination.
- Front Brake Hose (1) - Remove
