Removal Procedure

  1. GM5357081Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Rear Access Cover (2) - Remove - Front Compartment Rear Access Cover Replacement

  2. GM5363884Courtesy of GENERAL MOTORS COMPANY

    Battery (1) - Remove - Battery Replacement

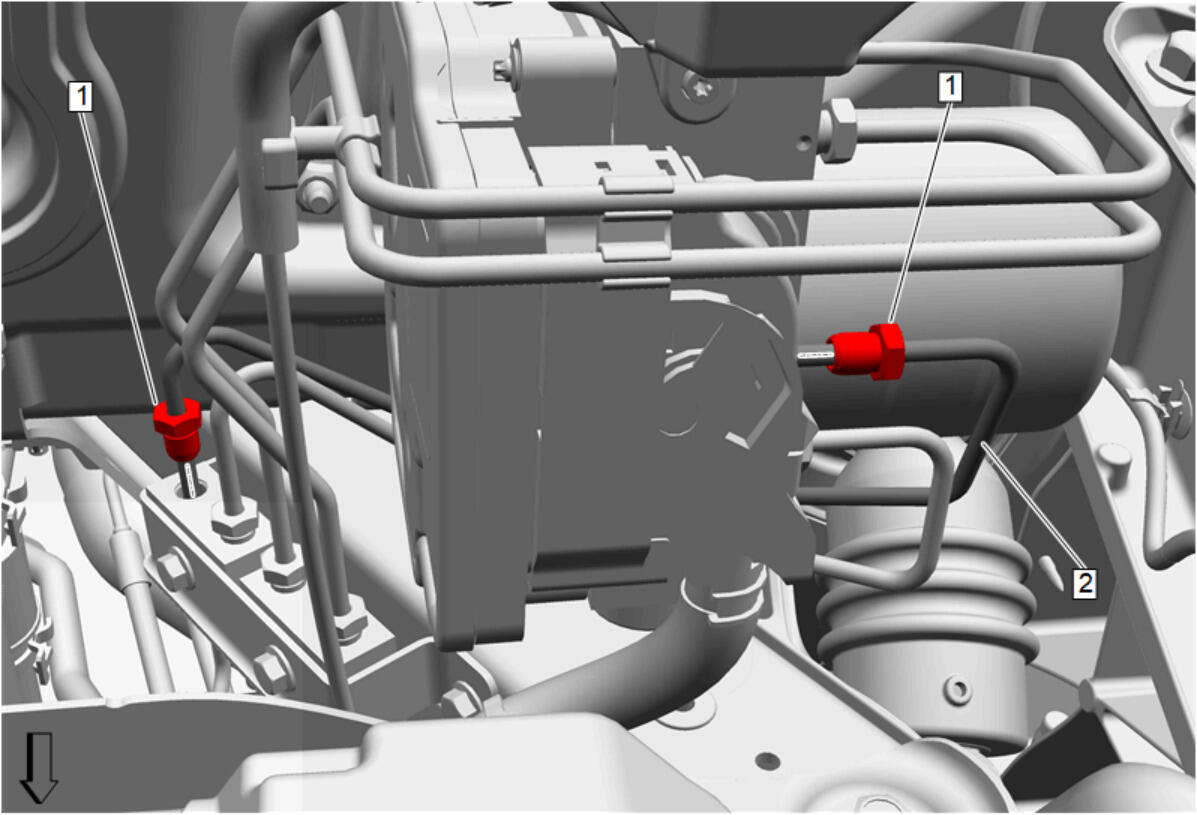

  3. GM5393705Courtesy of GENERAL MOTORS COMPANY

    Front Brake Front Pipe Nut (1) - Remove [2x]

  4. Front Brake Front Pipe (2) - Remove
  5. Plug the brake pressure modulator valve inlet port to prevent brake fluid loss and contamination.
  6. Plug the front brake crossover pipe connector inlet port to prevent brake fluid loss and contamination.
