Removal Procedure
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Recover the refrigerant. Refrigerant Recovery and Recharging
- Drain the coolant. Cooling System Draining and Filling (Static)

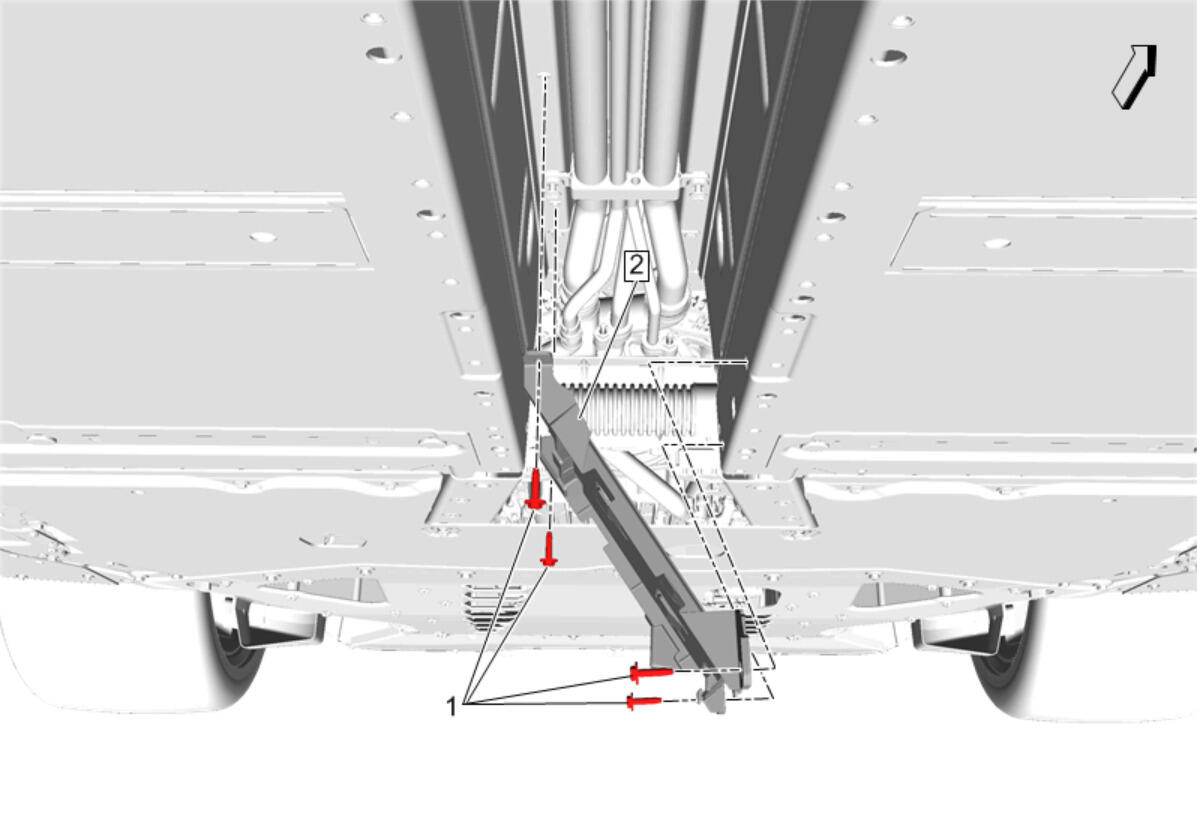

Floor Panel Tunnel Panel Front Reinforcement (1) - Remove - Floor Panel Tunnel Panel Front Reinforcement Replacement - Mid-Tunnel
Engine Control Module Bracket (2) - Remove - Engine Control Module Bracket Replacement

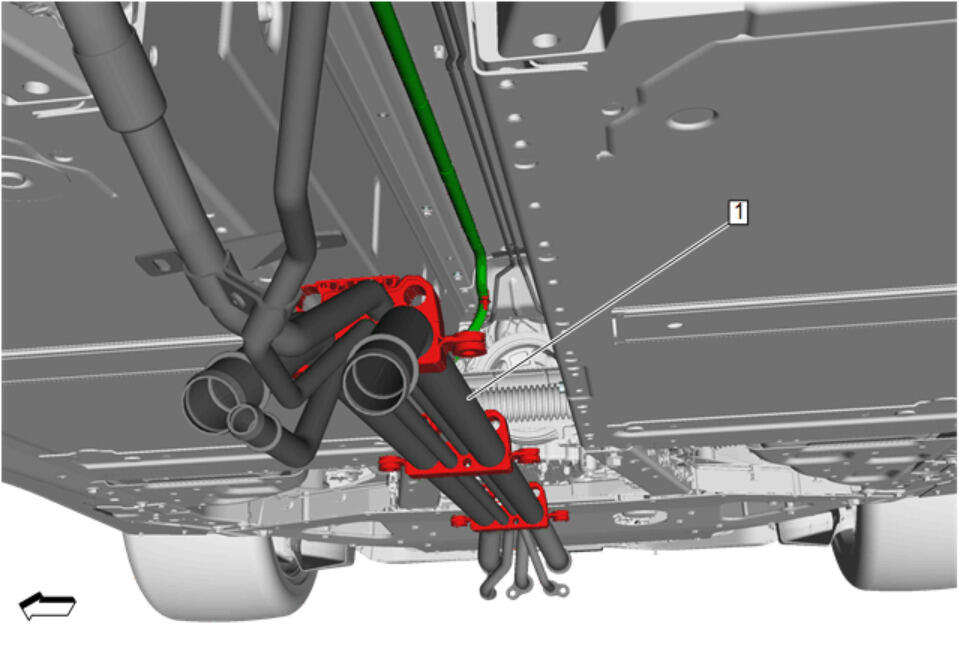

Air Conditioning Condenser and Air Conditioning Evaporator Tube (1) - Remove - Air Conditioning Condenser and Air Conditioning Evaporator Tube Replacement

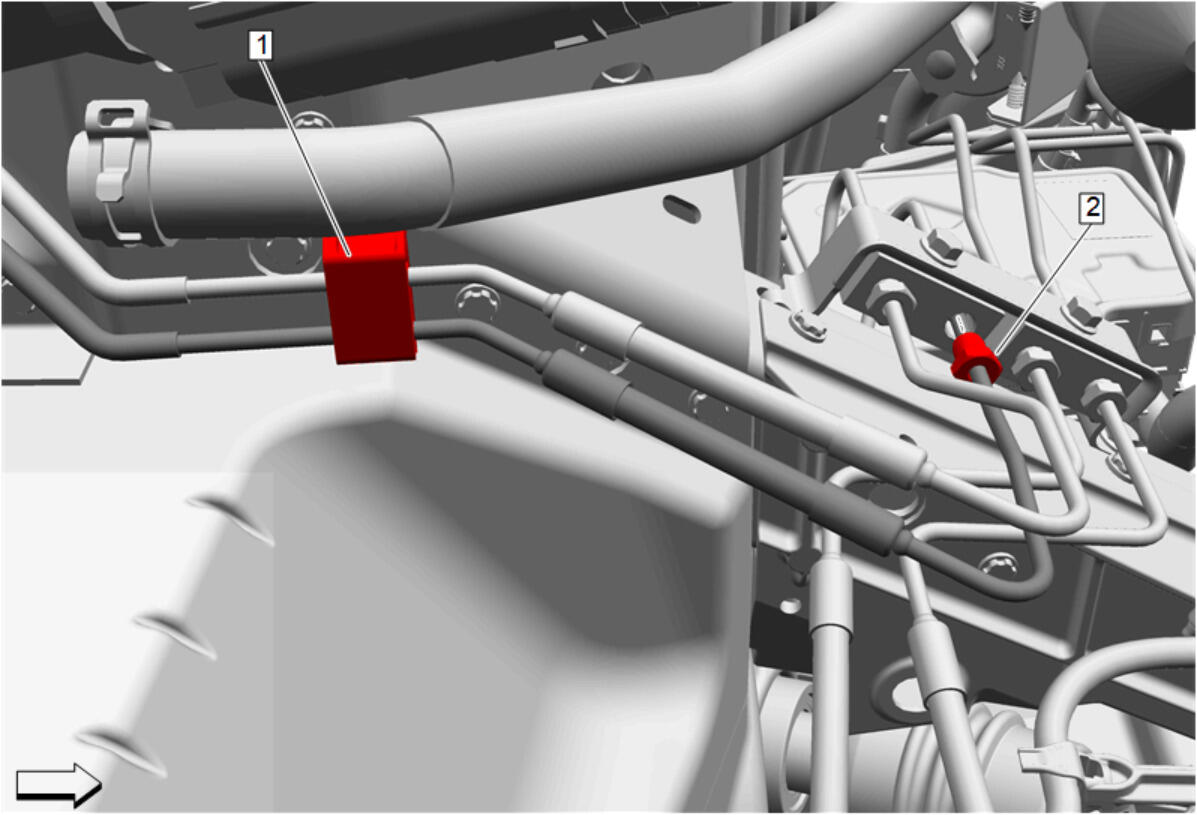

Retainer (1) - Release
- Brake Pressure Modulator Valve Master Cylinder Reservoir Rear Pipe Nut (2) - Remove
- Plug the front brake crossover pipe connector inlet port to prevent brake fluid loss and contamination.
- Cap the brake pressure modulator valve master cylinder reservoir rear pipe to prevent brake fluid loss and contamination.

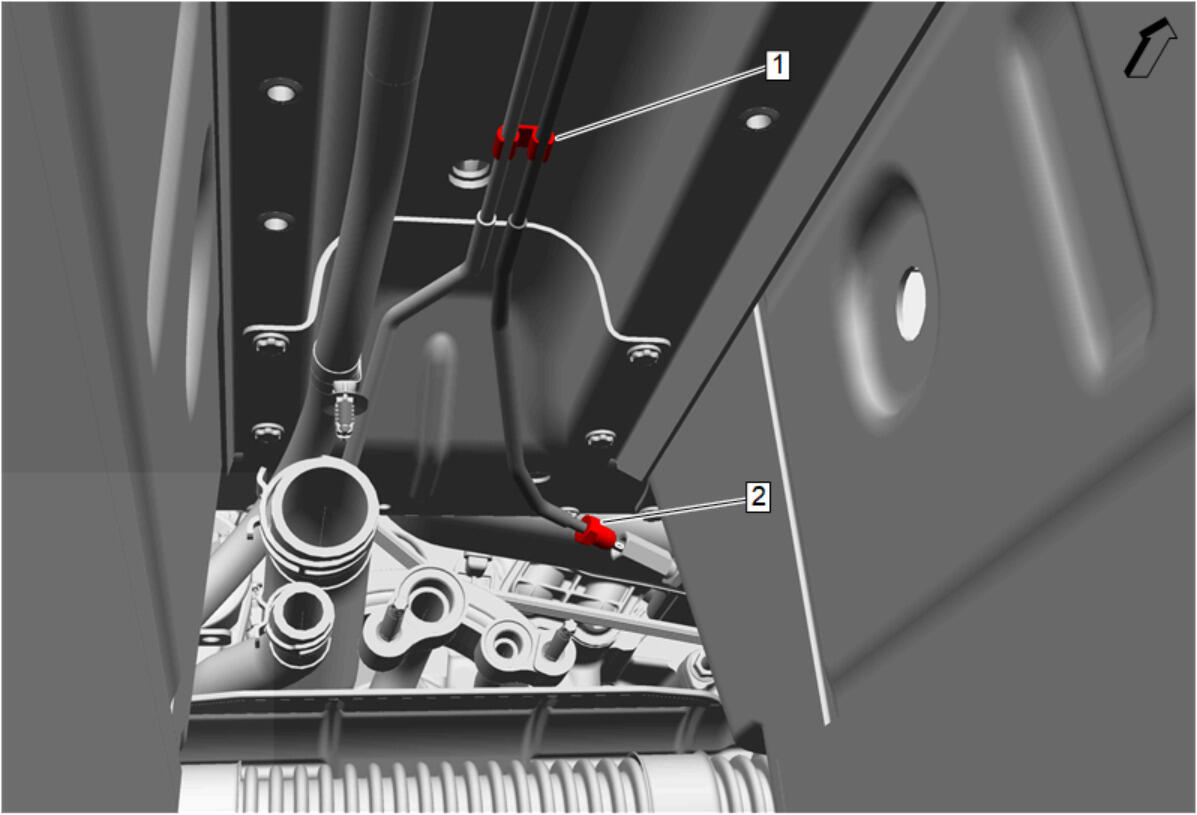

Retainer (1) - Release
- Brake Pressure Modulator Valve Master Cylinder Reservoir Rear Pipe Nut (2) - Remove
- Plug the brake pipe union inlet port to prevent brake fluid loss and contamination.
- Cap the brake pressure modulator valve master cylinder reservoir rear pipe to prevent brake fluid loss and contamination.

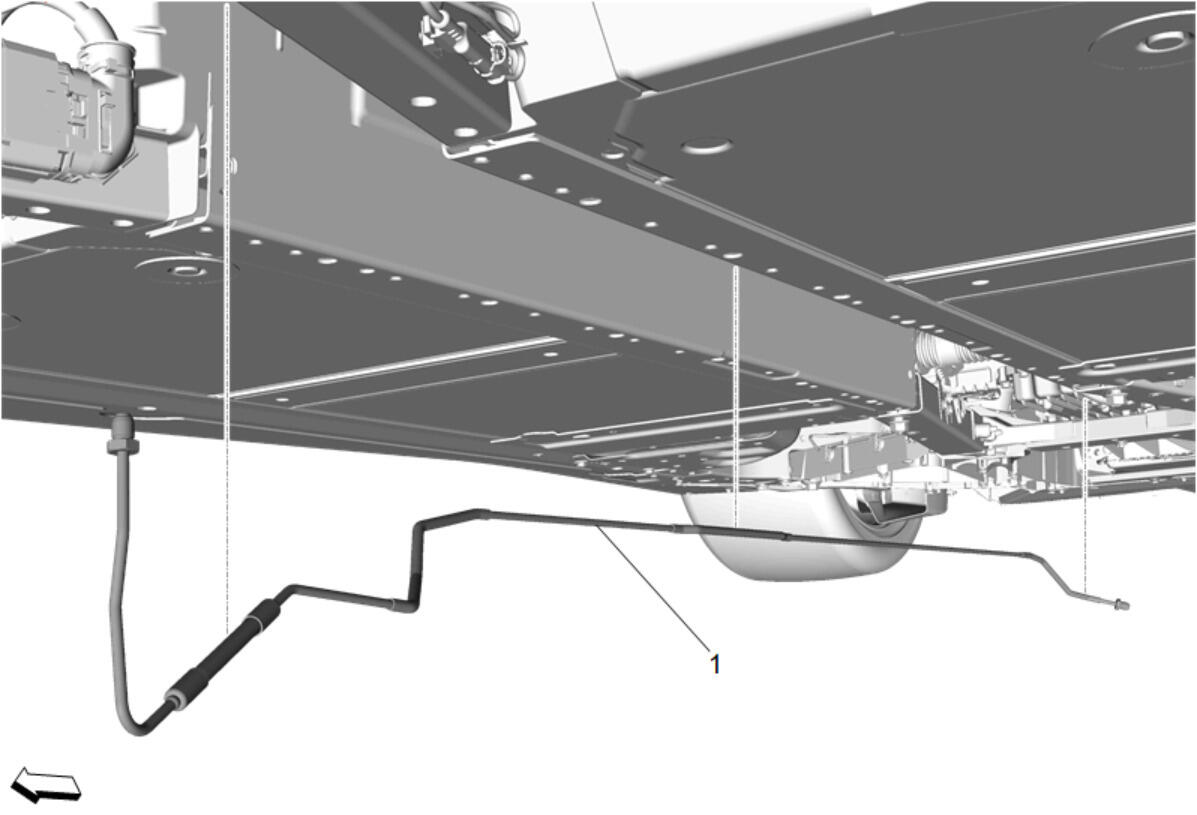

Brake Pressure Modulator Valve Master Cylinder Reservoir Rear Pipe (1) - Remove
