Removal Procedure

Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
Remove the right front tire and wheel assembly. Tire and Wheel Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Insulator (2) - Remove - Front Compartment Insulator Replacement
Courtesy of GENERAL MOTORS COMPANY

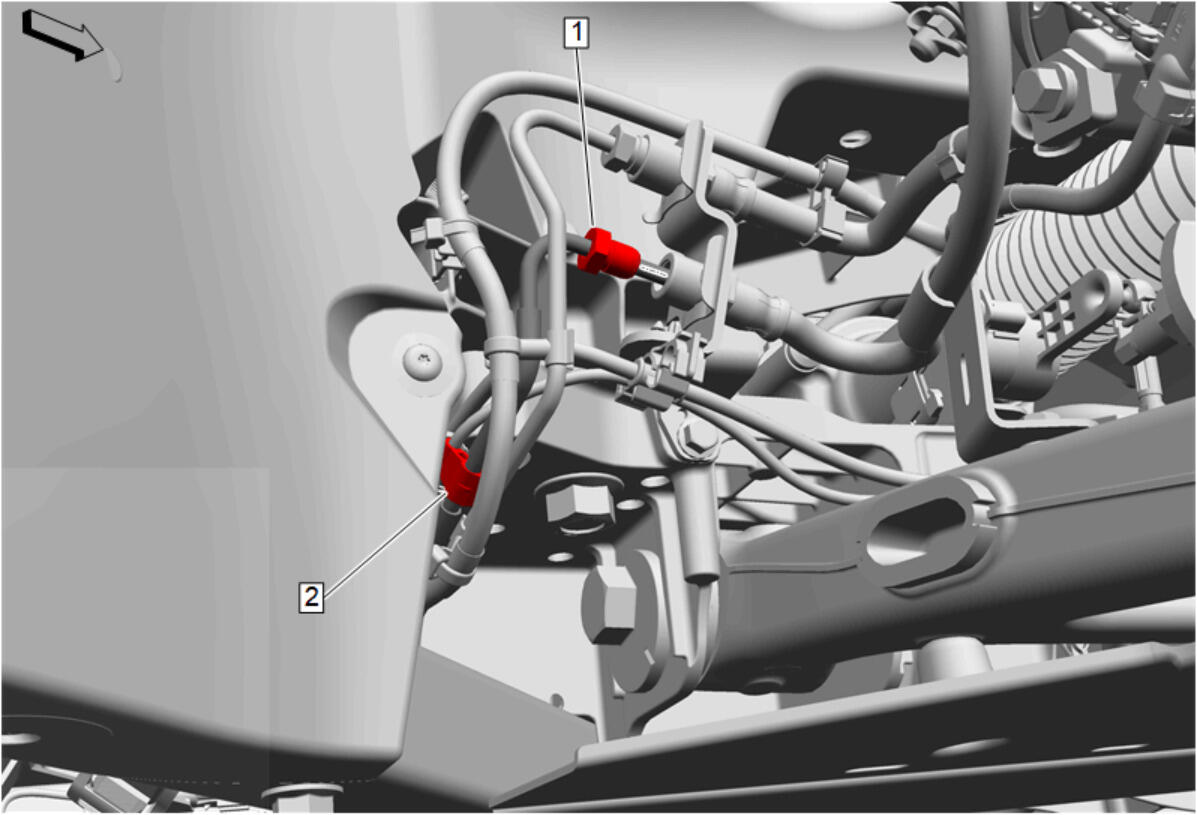

Brake Pressure Modulator Valve Master Cylinder Reservoir Front Pipe Nut (1) - Remove
Plug the front brake hose inlet to prevent brake fluid loss and contamination.
Cap the brake pressure modulator valve master cylinder reservoir front pipe to prevent brake fluid loss and contamination.
Retainer (2) - Release
Courtesy of GENERAL MOTORS COMPANY

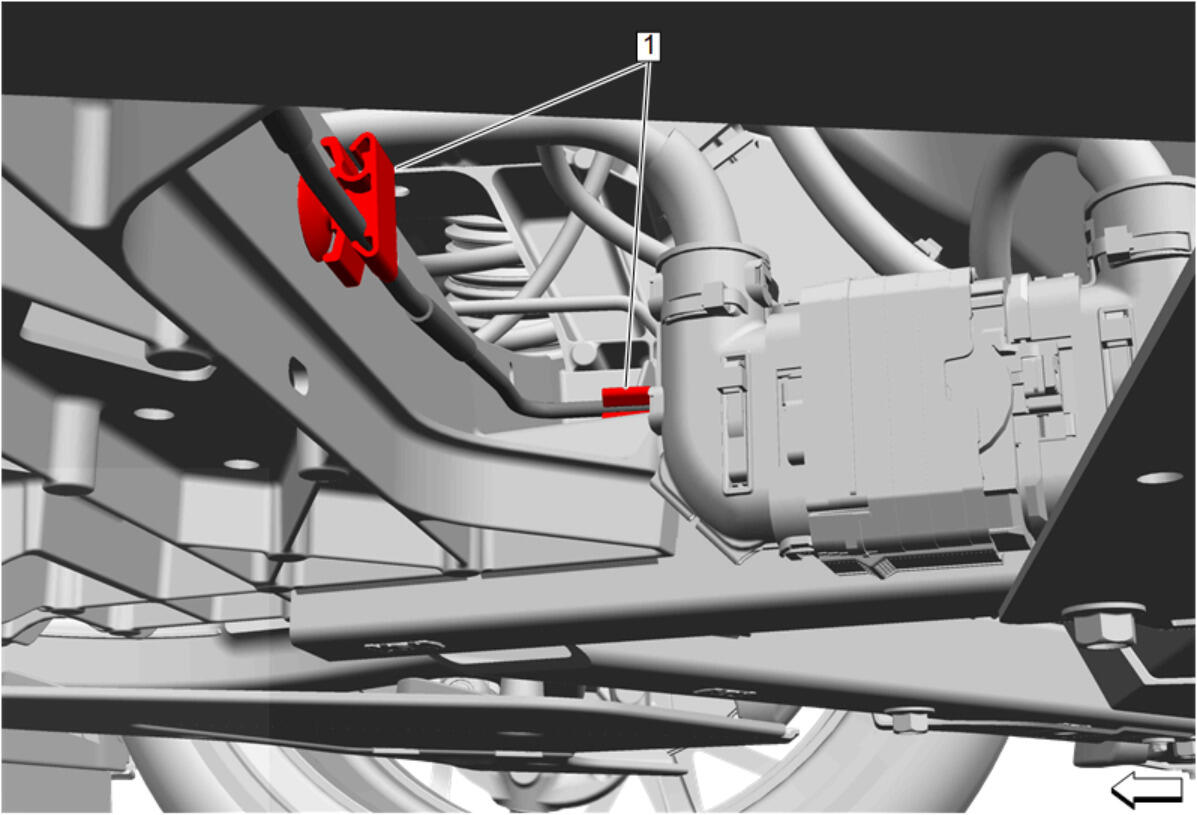

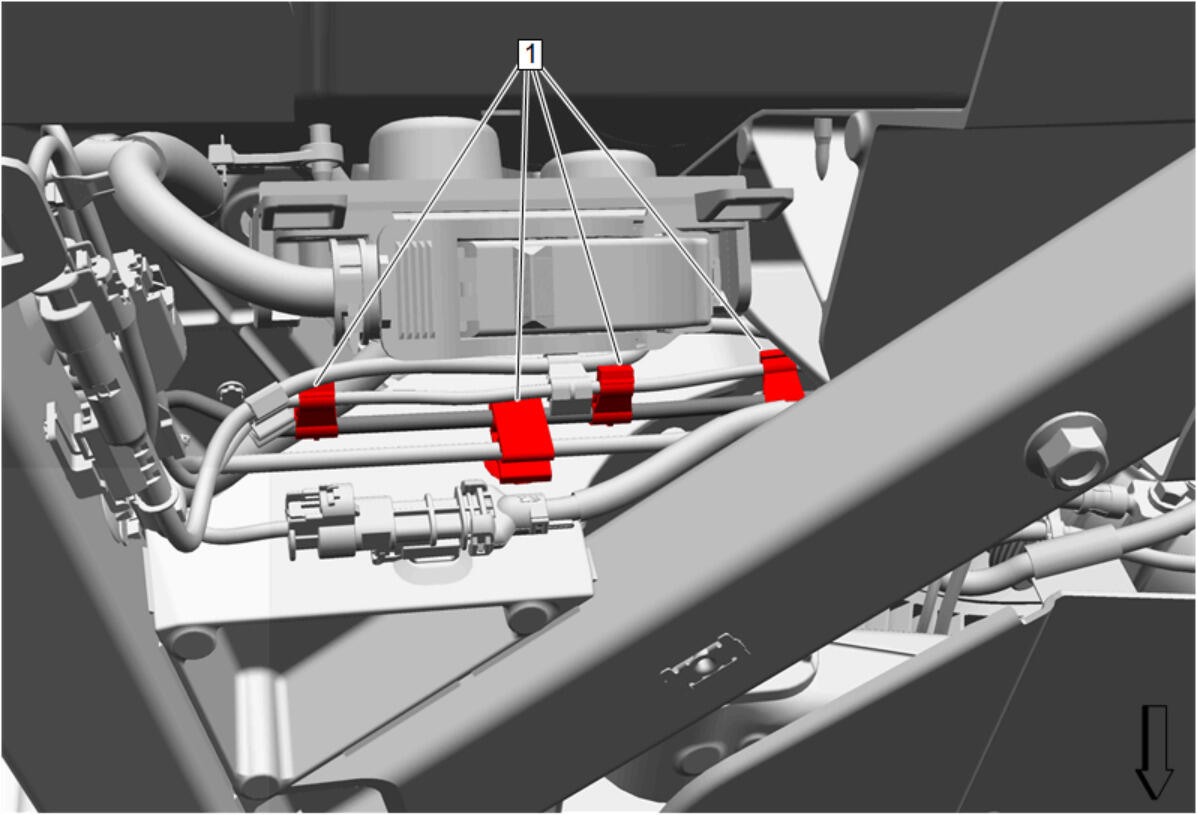

Retainer (1) - Release [4x]
Courtesy of GENERAL MOTORS COMPANY

Retainer (1) - Release [2x]
Courtesy of GENERAL MOTORS COMPANY

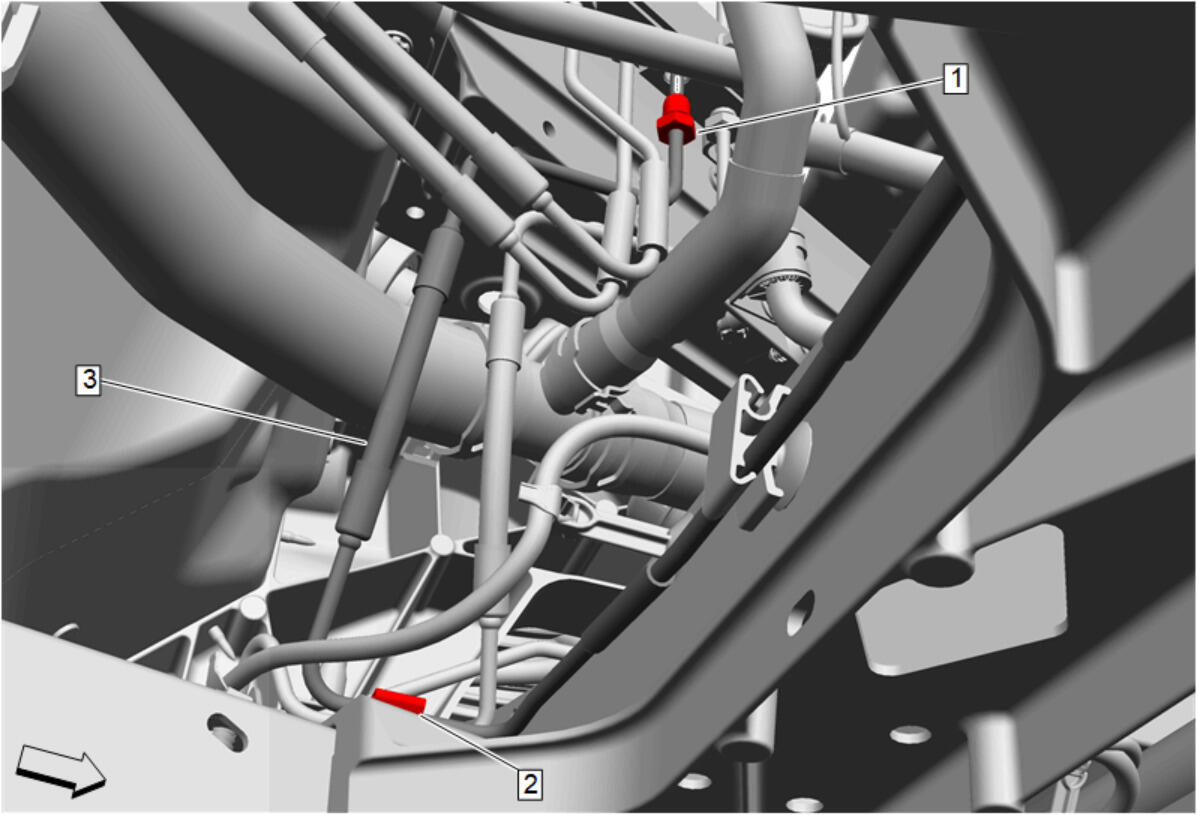

Retainer (2) - Release
Brake Pressure Modulator Valve Master Cylinder Reservoir Front Pipe Nut (1) - Remove
Plug the front brake crossover pipe connector inlet port to prevent brake fluid loss and contamination.
Cap the brake pressure modulator valve master cylinder reservoir front pipe to prevent brake fluid loss and contamination.
Brake Pressure Modulator Valve Master Cylinder Reservoir Front Pipe (3) - Remove
