Brake Fluid Level Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Compartment Rear Access Cover Replacement Electrical Connector @ Brake Fluid Level Sensor - Disconnect

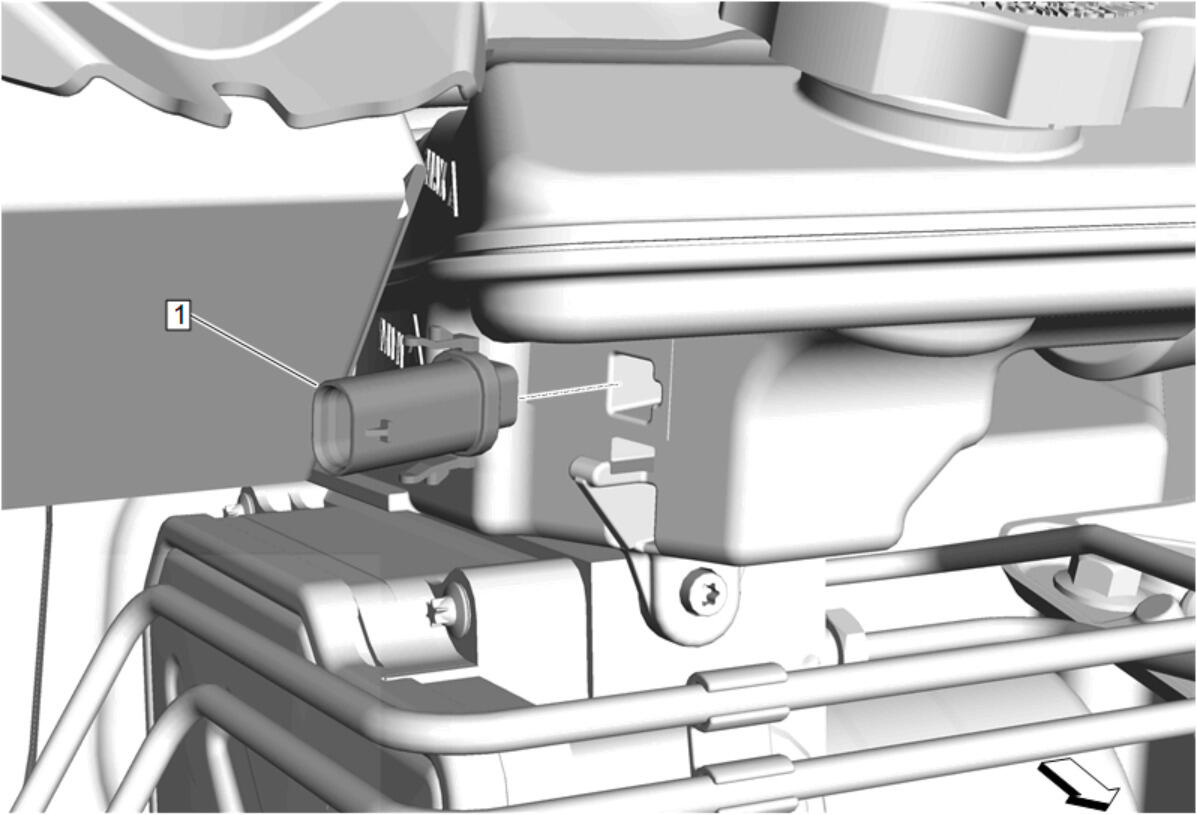

1	Brake Fluid Level Sensor Procedure Squeeze the tabs to release brake fluid level sensor from the brake master cylinder reservoir.

Callout

Component Name

Preliminary Procedures

Brake Fluid Level Sensor
Procedure
Squeeze the tabs to release brake fluid level sensor from the brake master cylinder reservoir.
