Rear Brake Bleeder Valve Replacement

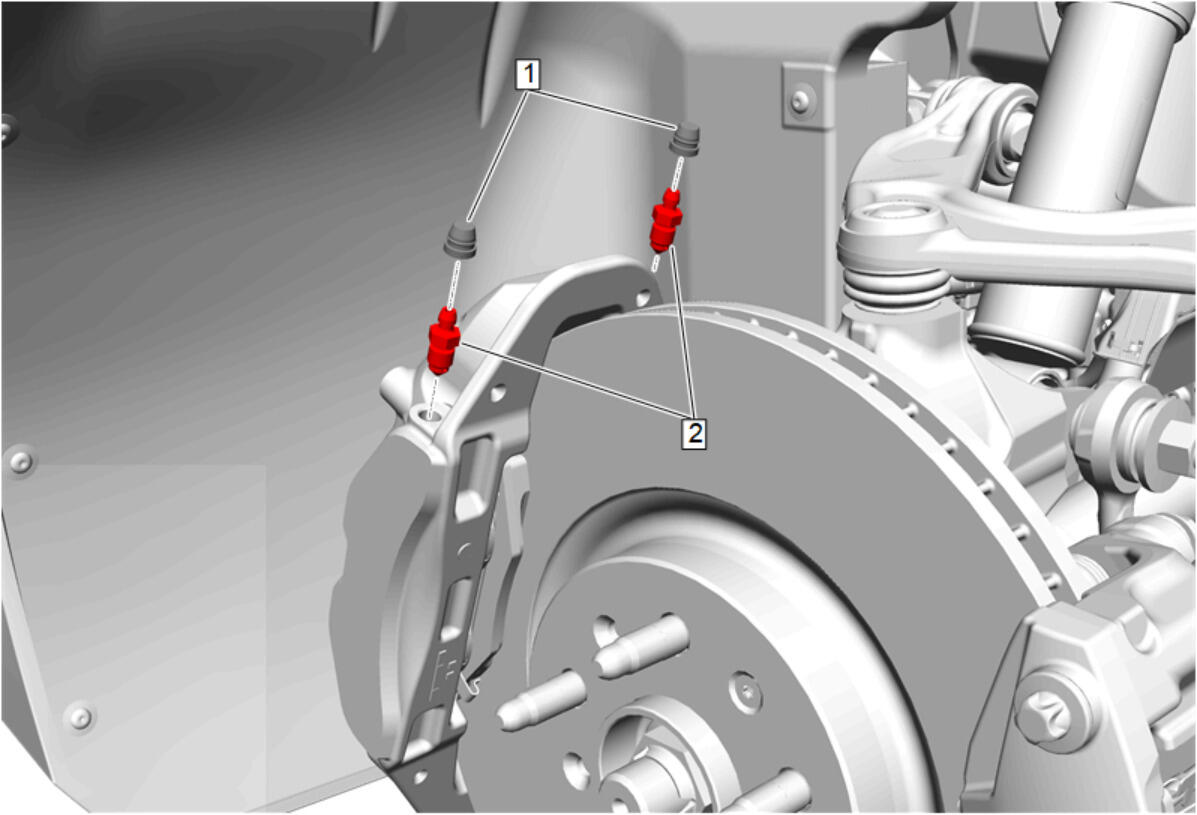

GM5399473Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

The battery must be disconnected to prevent the brake master cylinder from pressurizing the hydraulic system during its automated self diagnostic tests that can possibly occur when a door is opened or the key transmitter is activated. Failure to follow this precaution may cause personal injury.

WARNING:

Brake Dust Warning

WARNING:

Brake Fluid Irritant Warning

CAUTION:

Brake Fluid Effects on Paint and Electrical Components Caution

Preliminary Procedures

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
  2. Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation
1 Rear Brake Bleeder Valve Cap [2x]
2 Rear Brake Bleeder Valve [2x]
CAUTION:

Component Fastener Tightening Caution

NOTE:

If directed here from the brake bleed procedure in reference to torque specification, it is not necessary to bleed the brake system again.

Procedure

  1. Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
  2. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  3. Bleed the brake system. Hydraulic Brake System Bleeding (J55) , or Hydraulic Brake System Bleeding (JL9)

Tighten
17 Nm (13 lb ft)
